Can a bag filter effectively remove suspended solids from high-flow water treatment processes
2026-05-06
When managing industrial or municipal water systems with high flow rates, the removal of suspended solids becomes a critical challenge. The Bag Filter For Water Treatment has emerged as a practical solution, and at VLLRO, we specialize in engineering these filtration systems to handle demanding volumes without compromising clarity or pressure stability.
Understanding the Mechanism

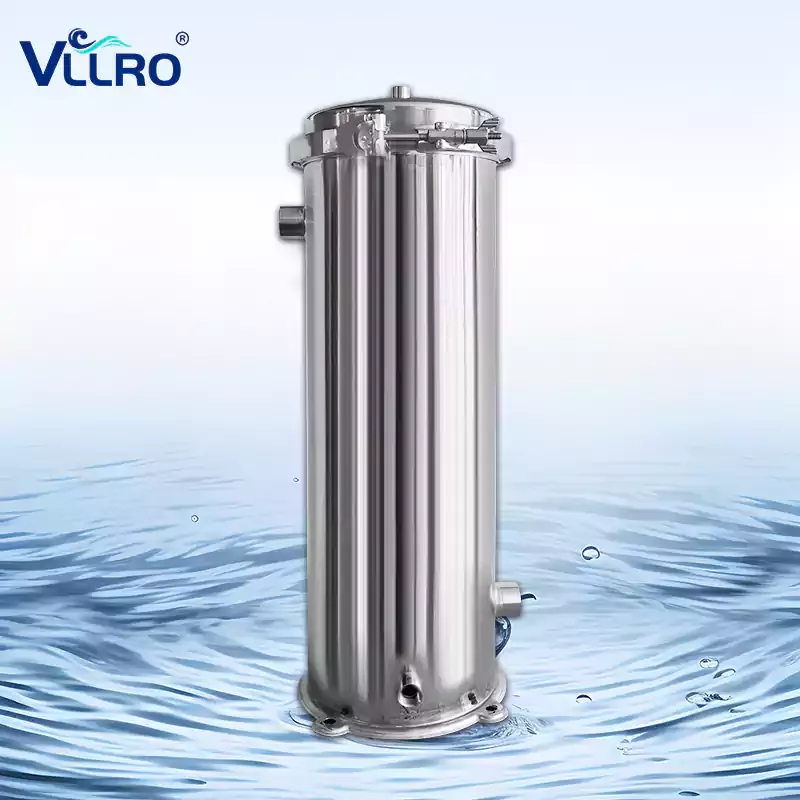

A Bag Filter For Water Treatment uses a fabricated felt or mesh bag housed in a cylindrical vessel. Water enters from the top or side, passes through the bag medium, and exits with retained particles. For high-flow processes, multiple bag housings can be arranged in parallel, allowing VLLRO systems to scale from 50 to over 5000 gallons per minute.
Key Performance Factors
| Factor | Influence on Solid Removal at High Flow |
|---|---|
| Micron rating (1–2000 µm) | Lower microns capture finer solids but may increase backpressure |
| Bag material (polypropylene, polyester, nylon) | Determines chemical compatibility and tensile strength |
| Flow velocity | Excessive velocity can bypass or tear the bag; VLLRO designs control flow distribution |
| Solids loading and particle shape | Sharp or heavy solids may abrade media faster |
Effectiveness Data
Based on VLLRO field applications across water treatment plants and industrial cooling systems:
| Flow Range (m³/h) | Removal efficiency (%) | Typical application |
|---|---|---|
| 20 – 80 | 95 – 99 | Pre-filtration, well water |
| 80 – 300 | 90 – 98 | Process water, reverse osmosis protection |
| 300 – 600 | 85 – 95 (with dual stage) | Effluent polish, heavy solids load |
Bag Filter For Water Treatment FAQ – Common Questions
Question 1: What flow velocity is too high for a bag filter and how can I mitigate it
Answer: Most standard Bag Filter For Water Treatment housings are rated for flow velocities up to 0.3–0.5 m/s through the bag surface. Above this, solids can push through the media or cause premature blinding. VLLRO recommends using multi-bag housings (e.g., 6, 12, or 24 bags in parallel) to reduce the face velocity while maintaining total system flow. For extremely high flows, we also offer high-flow series with larger bag diameters and reinforced seams.
Question 2: Can a bag filter remove particles smaller than its micron rating under high flow conditions
Answer: Yes, but with limitations. A Bag Filter For Water Treatment operates mainly on surface and depth filtration. Under high flow, some particles smaller than the nominal micron rating may pass through. However, VLLRO uses graded density media where the outer layer retains larger particles and inner layers capture finer ones, effectively removing particles down to 1–2 µm lower than the nominal rating. For critical high-flow applications, we recommend combining a bag filter with an after-filter or specifying an absolute-rated bag.
Question 3: How do I prevent pressure drop spikes when using a bag filter in a high-flow process
Answer: Pressure drop spikes occur when the bag surface becomes loaded unevenly or when flow surges exceed the housing design. VLLRO installs flow diffusion plates above the bag basket, which distribute water evenly across the entire bag area. Additionally, differential pressure gauges with alarms alert operators before the delta P exceeds 15–20 psi. The practical rule: size the filter area so the clean pressure drop stays under 3 psi at maximum flow. Our technical team calculates this for each installation.
Best Practices for High-Flow Solids Removal
-
Use a Bag Filter For Water Treatment as pre-filtration when TSS exceeds 100 ppm.
-
Select external cage-style bags for heavy coarse solids to prevent collapse.
-
VLLRO recommends automatic backwashing prefilters ahead of bag systems in silty waters.
-
Change bags when differential pressure rises 10–15 psi above clean baseline.
Conclusion
A Bag Filter For Water Treatment can effectively remove suspended solids at high flow rates when properly sized, configured, and maintained. The key is matching micron rating, bag material, and housing geometry to your specific water chemistry and particle distribution. VLLRO designs each system to prevent bypass, control velocity, and extend bag life—even at flows exceeding 600 m³/h.
Contact us today at VLLRO to review your flow data and receive a customized bag filter specification for high-efficiency solids removal.
