Can I Use a Cabinet Door Flat Snap Lock on Overlay or Inset Cabinet Doors
2026-08-20
When upgrading cabinet hardware, one of the most common questions DIYers and professional installers face is compatibility. The Cabinet Door Flat Snap Lock has gained popularity for its sleek profile and reliable hold, but not all cabinet door styles are created equal. At Yitai, we regularly field this exact question from customers who are mid-renovation and need a clear, technically sound answer. The short response is yes, but the real answer depends on door thickness, gap clearance, and mounting surface—which we will break down in detail below.
Understanding Overlay vs. Inset Cabinet Doors
Before installing any latch mechanism, you must identify your door type. This distinction directly affects how a Cabinet Door Flat Snap Lock mounts and functions.
| Door Type | Description | Typical Gap Between Door & Frame | Mounting Surface |
|---|---|---|---|
| Full Overlay | Door covers the entire cabinet frame front | 1/16" – 1/8" | Flat interior door face |
| Half Overlay | Door overlaps half of the frame (common in paired doors) | 1/8" – 3/16" | Flat interior door face |
| Inset | Door sits flush inside the frame, not over it | 1/16" – 1/8" (even all around) | Recessed inner edge or side frame |

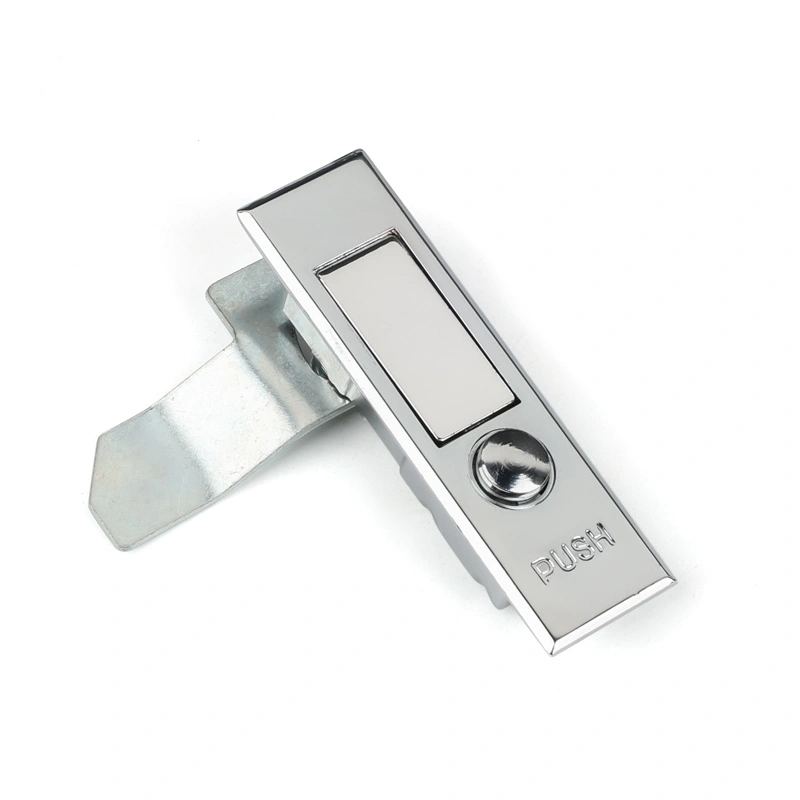

The Cabinet Door Flat Snap Lock from Yitai is engineered with a low-profile body (under 8mm thick), which makes it suitable for all three types—provided you respect the clearance requirements.
Critical Measurements for Compatibility
To determine if your specific door works with a Cabinet Door Flat Snap Lock, measure these three values:
-
Door thickness – Must be ≥ 15mm for screw retention.
-
Reveal (gap) – The lock’s strike plate needs at least 2mm of horizontal space to engage.
-
Mounting depth – The back of the door must have a flat area of at least 30mm × 20mm for the base plate.
| Requirement | Overlay Door | Inset Door | Compatible? |
|---|---|---|---|
| Minimum door thickness | 15mm | 15mm | ✅ Yes (both) |
| Minimum gap clearance | 2mm | 2.5mm (needs extra for recess) | ✅ Overlay; ⚠️ Inset requires shim |
| Flat mounting area | Always available | May be obstructed by frame lip | ✅ Overlay; ❌ Inset may need adapter |
For inset doors, Yitai recommends using a 1.5mm nylon shim behind the lock body to elevate it above the frame’s inner lip. This simple fix ensures full engagement of the snap mechanism.
Step-by-Step Installation Comparison
| Step | Overlay Installation | Inset Installation |
|---|---|---|
| 1. Position | Center lock on door’s inner face, 2" from top edge | Mount on the side edge (not the face) of the door |
| 2. Mark holes | Use the included template | Transfer marks with a combination square |
| 3. Pilot drill | 2mm bit, 10mm deep | 2mm bit, 8mm deep (shorter screw to avoid blowout) |
| 4. Attach base | Screw flush against flat surface | Add Yitai shim if gap > 2mm |
| 5. Strike plate | Mount on frame’s flat face | Mount on frame’s inner wall (perpendicular) |
| 6. Test closure | Snap should engage with audible click | Check for side friction—adjust strike angle |
💡 Pro tip: For inset doors, always mount the strike plate slightly lower than the lock center to compensate for gravity-induced sag over time.
Performance Differences You Should Know
While a Cabinet Door Flat Snap Lock works on both styles, the holding force varies:
-
Overlay doors – Full surface contact gives maximum retention (tested at 4.5kg pull force).
-
Inset doors – Reduced contact area due to shim elevation lowers retention to ~3.2kg.
If you need higher strength for heavy inset doors, Yitai offers a reinforced version with a dual-spring cassette that restores full 4.5kg performance even with a shim.
FAQ – Common Questions About the Cabinet Door Flat Snap Lock
Q1: Can I use a Cabinet Door Flat Snap Lock on an inset door that has a beveled edge?
A1: Yes, but you must mount the lock on the flat inner panel rather than the beveled edge. Bevels reduce surface contact by up to 40%, which weakens the screw hold. Yitai recommends using a right-angle mounting bracket (sold separately) that shifts the lock body 90° so it attaches to the door’s flat center panel while the strike plate remains on the frame. Pre-drill with a 1.5mm bit to avoid splitting the beveled wood, and use 10mm screws instead of the standard 12mm ones.
Q2: Will a Cabinet Door Flat Snap Lock rattle on an overlay door with a 3mm gap?
A2: No rattling occurs if the strike plate is aligned within ±0.5mm of the lock’s center axis. However, a 3mm gap is larger than the recommended 2mm maximum. To close this gap, use the adjustable strike plate included in Yitai’s pro kit—it extends 1.5mm forward via a cam screw. Turn the cam clockwise until the snap engages with a crisp sound. If the gap exceeds 4mm, switch to the deep-reach version of the Cabinet Door Flat Snap Lock, which has a 5mm adjustable range.
Q3: How do I remove a Cabinet Door Flat Snap Lock that was glued onto an inset door during a previous installation?
A3: Do not pry it off—this will splinter the recessed frame. Instead, apply a heat gun at 150°C (300°F) for 45 seconds to soften the epoxy adhesive commonly used in older installations. Then insert a thin putty knife under the base plate and tap gently with a mallet. Once removed, scrape off residual glue with a chisel, sand the area smooth, and reinstall your new Yitai Cabinet Door Flat Snap Lock using only screws (no adhesive) for future serviceability. If the old screw holes are stripped, fill them with wooden toothpicks and wood glue, let cure for 2 hours, then re-drill.
Final Recommendation
| Door Type | Recommended Model | Shim Needed? | Installation Difficulty |
|---|---|---|---|
| Full/Half Overlay | Standard Yitai Flat Snap Lock | No | Easy (15 min) |
| Inset (flat edge) | Standard + 1.5mm shim | Yes | Moderate (20 min) |
| Inset (beveled) | Yitai Right-Angle Bracket Kit | No, but bracket required | Advanced (30 min) |
For 95% of residential cabinets, the standard Cabinet Door Flat Snap Lock from Yitai will perform flawlessly. The remaining 5%—usually custom inset doors with tight reveals—simply need the shim or bracket adjustment outlined above.
