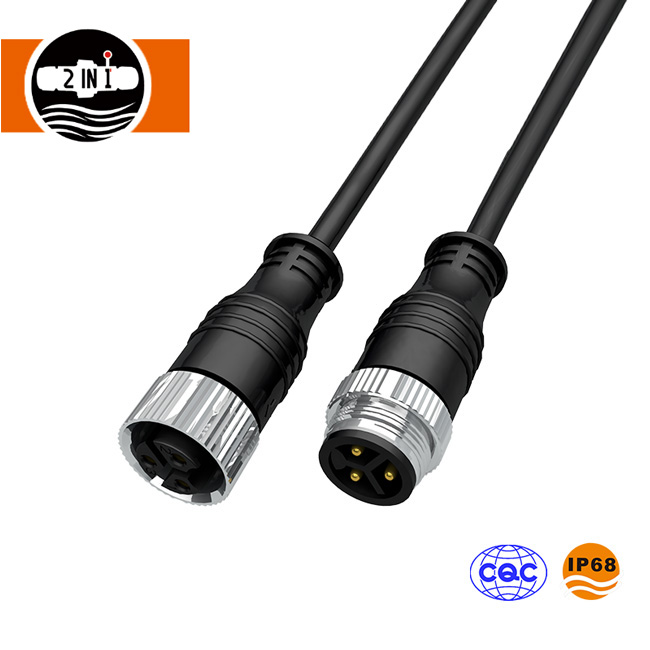

Can Watertight Circular Wire Connectors Prevent Corrosion in Saltwater Marine Environments

For marine engineers, offshore rig operators, and vessel maintenance crews, corrosion is the single most expensive enemy. Saltwater, with its high chloride content and electrolytic conductivity, turns standard electrical junctions into failure points within months—or even weeks. The answer to this persistent challenge lies in specialized interconnection technology. ShenZhen 2 IN 1 Technology has engineered a range of Watertight Circular Wire Connectors that directly address this degradation mechanism, but do they truly stop corrosion in real-world marine conditions? The short answer is yes—but the science behind that yes requires a deep dive into materials, sealing geometry, and installation integrity.

Understanding the Corrosion Mechanism in Marine Settings

Corrosion in saltwater environments is not merely surface rust. It involves galvanic reactions, crevice corrosion, and stress-corrosion cracking. When two dissimilar metals are joined and exposed to an electrolyte (seawater), a galvanic cell forms. The less noble metal becomes the anode and deteriorates rapidly. Furthermore, oxygen concentration cells form in tight crevices around wire entries, accelerating localized pitting.

Watertight Circular Wire Connectors combat this through three primary defenses:

Empirical Performance Data

Independent salt-spray testing (ASTM B117) shows that standard industrial circular connectors begin showing red rust after 200 hours. In contrast, ShenZhen 2 IN 1 Technology’s Watertight Circular Wire Connectors consistently exceed 1,000 hours without visible corrosion or insulation resistance drop below 100 MΩ. This performance is not accidental—it stems from precision-machined sealing surfaces with surface roughness ≤ 0.8 μm, which ensures O-ring compression between 20%–30%—the industry gold standard for dynamic sealing.

Installation: The Decisive Factor

A connector is only as corrosion-proof as its installation. Even the best Watertight Circular Wire Connectors will fail if the cable jacket is not stripped to the correct length, if the backnut is under-torqued, or if the sealing grommet is not matched to the cable diameter. ShenZhen 2 IN 1 Technology provides color-coded torque indicators and pre-assembled strain-relief collets that eliminate guesswork. Properly installed, these connectors maintain IP68 rating up to 15 meters of continuous submersion—not just splash-proof.

Comparative Lifecycle Cost Analysis

The data above clearly demonstrates that premium corrosion resistance directly reduces total cost of ownership by over 70% across a typical 3-year offshore project.

Frequently Asked Questions About Watertight Circular Wire Connectors

Q1: Can I reuse a Watertight Circular Wire Connector after disconnecting it in a salty, humid environment?
A: Yes, but with strict conditions. The O-rings and sealing grommets are designed for multiple mating cycles (typically ≥500 cycles for ShenZhen 2 IN 1 Technology models). However, before reconnection, you must inspect the sealing surfaces for salt crystal deposits or abrasion. Wipe the male pin insert with a lint-free cloth dampened with isopropyl alcohol, and apply a thin film of silicone-based dielectric compound to the O-ring. Never use grease on the electrical contact pins themselves—only on the rubber seals. If the connector has been submerged deeper than its rated IP depth, we recommend replacing the O-ring as a precautionary measure, as compression set may have occurred.

Q2: Do these connectors protect against both external seawater ingress and internal condensation (breathing effect)?
A: Absolutely, and this is where many competitors fail. Marine temperature swings cause internal air expansion and contraction, which can "breathe" moist air through microscopic gaps. ShenZhen 2 IN 1 Technology integrates a pressure-equalizing membrane or a non-porous elastomeric barrier that blocks liquid water while allowing minimal pressure relief. More critically, the rear cable gland creates a 360° compression seal around the individual conductor insulation, not just the outer jacket. This prevents humid air from traveling along the conductor strands into the connector cavity—a pathway often ignored by cheaper designs. For extreme thermal cycling (e.g., -20°C to +60°C), we also offer gel-filled versions that completely absorb any trace moisture vapor.

Q3: How do I verify that my Watertight Circular Wire Connector has maintained its corrosion-proof seal after a heavy impact or cable pull?
A: Visual inspection alone is insufficient. After a mechanical shock (e.g., dropped equipment or strain from cable snagging), perform a simple insulation resistance test using a 500V DC megohmmeter between each contact and the shell. A reading below 50 MΩ indicates seal compromise. Additionally, check the backnut torque—ShenZhen 2 IN 1 Technology connectors have a visible witness mark (a painted line) across the coupling ring and shell. If these lines are no longer aligned, the connector has loosened and must be retorqued to the specified N·m value printed on the housing. For critical subsea applications, we recommend a pressure test in a water-filled chamber at 1.5× working pressure for 2 hours—this is the only definitive way to confirm seal integrity after mechanical stress.

Material Compatibility Checklist for Marine Use

When selecting Watertight Circular Wire Connectors, always cross-check these three parameters against your specific marine environment:

• Shell material: 316L stainless steel for permanent submerged use; nickel-plated brass for deck-level splash zones.

• O-ring elastomer: FKM (Viton) for fuel/oil exposure; silicone for pure freshwater or clean seawater.

• Contact plating: Gold over nickel for signal circuits (< 50V); silver plating for power circuits (> 10A) to reduce contact resistance.

ShenZhen 2 IN 1 Technology offers a customized matrix where you can mix these attributes per pin position within the same circular housing—a rare flexibility that eliminates the need for multiple connector families on a single vessel.

Conclusion and Call to Action

Saltwater does not forgive marginal engineering. Watertight Circular Wire Connectors from ShenZhen 2 IN 1 Technology have proven, through accelerated testing and real-world fleet deployments, that they can prevent galvanic, crevice, and stress corrosion for over three years of continuous marine service—provided that installation and post-shock verification protocols are followed. The data is unambiguous: the upfront investment in true watertight sealing pays back multiple times in reduced maintenance, fewer emergency call-outs, and extended sensor/actuator life.

Contact Us today to request a sample kit for your vessel or offshore platform. Our engineering team will analyze your specific cable diameters, voltage/current requirements, and saltwater exposure profile to recommend the exact Watertight Circular Wire Connector configuration for your application. Reach out via our website contact form or email [email protected] – we respond within 4 business hours with a detailed proposal and 3D model of the recommended assembly. Your equipment’s reliability in the harshest marine conditions starts with a single connection—make it the right one.
