How Can the Right Oil/Lube Filter Protect Equipment and Reduce Maintenance Costs?

1. Understanding Oil/Lube Filters

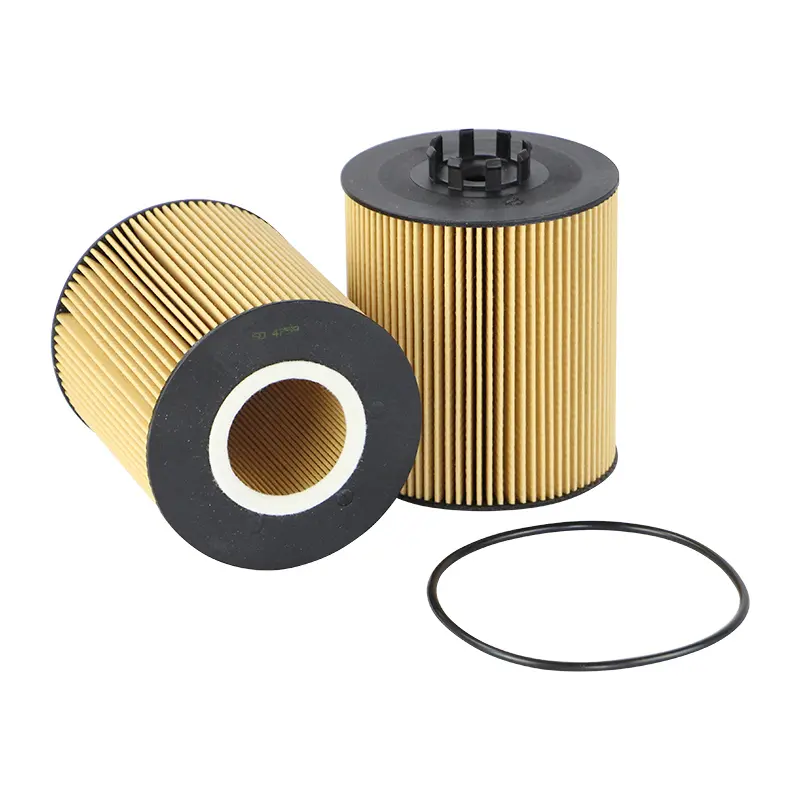

An Oil/Lube Filter is a filtration component designed to remove unwanted contaminants from lubricating oil or other compatible oil-based fluids. These filters are used in equipment where clean lubricant is essential for protecting mechanical parts and maintaining stable operating conditions.

Industrial lubrication systems may serve compressors, hydraulic equipment, gearboxes, engines, turbines, pumps, and production machinery. Although these systems differ in design, they share a common challenge: contaminants can enter the oil during operation, maintenance, fluid filling, or component wear.

Particles may include dust, metallic debris, sealing-material fragments, carbon deposits, and degradation products. If contaminants circulate repeatedly through the system, they can contribute to abrasion, blocked passages, sticking valves, increased friction, and premature wear.

An effective filter helps reduce the concentration of particles reaching sensitive components. However, filtration does not replace proper oil selection, contamination control, fluid analysis, or routine equipment maintenance.

Where do oil contaminants come from?

• External contamination: Dust, moisture, and airborne particles may enter through filling points, seals, vents, or maintenance activities.
• Internal wear: Moving components can generate metallic particles as surfaces wear during operation.
• Oil degradation: Heat, oxidation, and chemical reactions can produce deposits or varnish-related contaminants.
• Maintenance errors: Dirty transfer containers, unclean equipment, and unsuitable replacement parts can introduce additional impurities.

Understanding the contamination source helps maintenance teams select an appropriate filtration strategy instead of treating every oil-quality problem as a filter issue.

2. How Oil/Lube Filters Work

Most oil filters direct fluid through a porous filtration medium that captures particles while allowing the oil to continue through the system. The medium may use cellulose, synthetic fibers, glass fibers, metal mesh, or a combination of materials, depending on the filter design and intended application.

As oil passes through the medium, particles are retained through mechanisms such as direct interception, inertial effects, and other interactions between particles and filter fibers. The precise behavior depends on particle size, fluid viscosity, flow velocity, media structure, and the filter's construction.

The basic filtration process

1. Oil enters the filter: The inlet directs lubricant into the designated flow path.
2. Contaminants are captured: The filtration medium retains particles according to its efficiency and operating characteristics.
3. Filtered oil exits: Cleaner oil returns to the intended lubrication circuit or downstream equipment.
4. Contaminants accumulate: Captured material gradually increases the resistance to flow as the filter loads.

Some filter assemblies incorporate bypass valves, anti-drainback features, seals, or other components. These features are application-dependent and should not be assumed to exist in every model.

A bypass valve, where fitted, may allow oil to continue flowing when differential pressure reaches a defined threshold. This can protect against oil starvation under specified conditions, but it may also permit unfiltered oil to pass through. Its operation and setting must therefore match the equipment manufacturer's requirements.

3. Why Effective Lubricant Filtration Matters

Lubricant cleanliness has a direct relationship with the reliability of many industrial systems. A well-matched filter helps manage contamination and supports consistent equipment performance, particularly where components operate with close clearances or depend on a stable oil supply.

Reducing component wear

Hard particles can damage bearing surfaces, gears, pumps, and other moving components. By reducing circulating contamination, a suitable filter helps limit abrasive wear and supports longer service intervals when the entire maintenance program is properly managed.

Protecting sensitive components

Servo valves, precision hydraulic components, control passages, and some lubrication systems are sensitive to contamination. A filter with appropriate particle-removal performance can help protect these components from deposits and restricted flow paths.

Supporting stable equipment operation

Contaminated lubricant can contribute to increased friction, heat generation, and inconsistent equipment behavior. Maintaining appropriate oil cleanliness helps support predictable operation, although temperature, load, alignment, lubrication quality, and other factors remain important.

Controlling maintenance expenses

Replacing a filter at the appropriate interval is generally simpler than responding to preventable component damage. Effective filtration can support lower maintenance risk and reduced unplanned downtime, but actual savings depend on equipment conditions, filter costs, operating practices, and contamination levels.

Extending useful oil life where appropriate

Filtration removes certain solid contaminants, helping oil remain suitable for service when supported by proper fluid management. It does not automatically remove dissolved degradation products, restore depleted additives, or correct every form of chemical deterioration. Oil analysis remains important when fluid condition is critical.

4. Common Types of Oil/Lube Filters

Different filtration arrangements address different operating requirements. Selecting a suitable type begins with understanding the system design, required cleanliness, flow rate, pressure, oil viscosity, and maintenance strategy.

These categories describe common configurations rather than interchangeable products. A cartridge element intended for one housing may not fit another, even when the outside dimensions appear similar. Likewise, a strainer designed to capture relatively large debris cannot automatically replace a finer oil filter.

For replacement projects, the original part number and equipment documentation provide a useful starting point. Verify all critical specifications before selecting an alternative.

5. How to Choose the Right Oil/Lube Filter

The right filter balances particle-removal requirements with flow capacity, operating conditions, physical compatibility, and maintenance needs. A structured evaluation can prevent both under-filtration and unnecessary replacement costs.

Step 1: Identify the equipment and application

Record the equipment manufacturer, model, system type, original filter part number, and location of the filter within the oil circuit. Determine whether the filter serves an engine, compressor, gearbox, hydraulic system, turbine, or another application.

Step 2: Confirm the required flow rate

Establish the normal and maximum required oil flow. The filter must accommodate the specified flow without excessive restriction. Consider start-up conditions, temperature changes, and the higher viscosity that may occur when oil is cold.

Step 3: Check pressure and temperature

Review normal operating pressure, maximum pressure, differential pressure limits, and the temperature range. The filter housing, seals, end caps, and element construction must be suitable for the system conditions.

Step 4: Define the filtration requirement

Determine the target oil cleanliness and required particle-removal performance. Where relevant, request a documented beta ratio at a stated particle size and test method rather than relying solely on an unspecified micron rating.

Step 5: Verify oil and material compatibility

Confirm compatibility with the base oil, additives, operating temperature, and any potential contaminants. Seal and adhesive compatibility may be just as important as the main filter media.

Step 6: Compare service life and total cost

Evaluate dirt-holding capacity, replacement frequency, element availability, labor requirements, and the consequences of unplanned downtime. A lower purchase price does not always produce the lowest operating cost.

6. Filtration Efficiency and Pressure Drop

Two important factors in filter selection are particle-removal efficiency and pressure drop. A filter must remove the required contaminants while allowing sufficient oil flow under the intended operating conditions.

Understanding micron ratings

A micron is one-millionth of a meter. Filter descriptions often include a particle-size rating, but the meaning of that rating depends on the test method and the manufacturer's definition. A nominal rating and an absolute rating are not universally standardized descriptions of performance.

For critical applications, ask for the applicable test standard, particle size, beta ratio, and supporting performance data. Under ISO 16889, for example, multipass testing can be used to characterize hydraulic filter performance under specified test conditions.

What does beta ratio mean?

The beta ratio compares the number of particles of a specified size or larger measured upstream with the number measured downstream during a defined test. A higher beta ratio corresponds to higher measured particle-removal efficiency at that size under the test conditions.

For example, a beta ratio of 200 at a specified particle size corresponds to a calculated efficiency of 99.5% at that size under the relevant test conditions. This does not mean that every particle is removed or that the filter will deliver identical results in every installation.

Why pressure drop matters

Pressure drop is the difference in pressure across the filter. It varies with flow rate, fluid viscosity, media characteristics, and accumulated contamination. As the filter loads, resistance can increase, potentially affecting system performance.

Choosing the finest available filter without checking flow requirements can create excessive restriction. The best selection is the one that meets the required cleanliness while remaining within the system's permitted pressure and flow limits.

7. Signs of Oil Filter Problems

Filter-related problems can appear as changes in pressure, temperature, equipment behavior, or maintenance frequency. These symptoms should be investigated alongside other possible causes rather than automatically attributed to the filter.

• Increasing differential pressure: May indicate a loaded element, unusually viscous oil, excessive flow, or another restriction.
• Unexpected low oil pressure: Can result from low oil level, pump problems, leakage, incorrect viscosity, or filtration-system restrictions.
• Unusual equipment noise or vibration: May indicate lubrication deficiencies or mechanical faults that require prompt investigation.
• Repeated premature filter loading: May point to excessive contamination, component wear, degraded oil, or an unsuitable filter specification.
• Visible leakage around the housing: Can result from damaged seals, incorrect installation, loose connections, excessive pressure, or incompatible components.
• Unexpected changes in oil cleanliness: May indicate contamination ingress, unsuitable filtration, bypass operation, or an internal equipment problem.

Follow the equipment manufacturer's instructions when alarms or abnormal operating conditions occur. If lubrication pressure is critically low, stop or isolate the equipment as directed by the approved operating procedure to avoid further damage.

8. Replacement and Maintenance Practices

Filter replacement intervals should reflect equipment requirements, operating severity, oil condition, contamination levels, and manufacturer recommendations. A universal interval is rarely appropriate for every industrial application.

Use a planned replacement strategy

Start with the equipment manufacturer's specified interval. Where supported by the system design, use differential-pressure monitoring, oil analysis, operating hours, and maintenance history to refine the schedule.

Maintain cleanliness during replacement

Before opening the filter housing, clean the surrounding area and follow the approved isolation, depressurization, and draining procedure. Prevent dirt from entering exposed ports, lines, and housings. Install the correct element and inspect sealing surfaces before reassembly.

Check seals and installation details

Use the correct seals and approved installation method. For spin-on filters, follow the manufacturer's gasket preparation and tightening instructions. For cartridge systems, confirm that the element is seated correctly and that the housing is reassembled according to specification.

Track filter and oil condition

Record replacement dates, operating hours, differential pressure where available, oil analysis results, and any unusual contamination. Reviewing these records can reveal recurring issues and help maintenance teams determine whether the filter specification or contamination-control practices need improvement.

Dispose of used elements responsibly

Used oil filters and filter elements may retain oil and hazardous contaminants. Handle and dispose of them according to local environmental rules and the site's waste-management procedures.

9. Common Purchasing Mistakes to Avoid

Buying by dimensions alone

Two filters can share similar dimensions while differing in media efficiency, bypass-valve setting, pressure capability, flow direction, or seal design. Verify the complete specification before approving a substitute.

Assuming a micron rating tells the whole story

A particle-size figure without a stated rating method may not provide enough information to compare products. Request supporting performance data for the intended application.

Ignoring oil viscosity and cold-start conditions

Viscosity affects pressure drop and flow through the media. Confirm that the selected filter can accommodate the expected oil viscosity and operating-temperature range.

Overlooking bypass requirements

A bypass valve may be required in some systems and unsuitable in others. Confirm whether a valve is specified, its opening characteristics, and how bypass operation affects the equipment's contamination-control requirements.

Choosing the lowest-priced product without checking quality

Inconsistent dimensions, poor sealing, unsuitable media, or limited documentation can lead to operational risk. Compare verified specifications, quality controls, expected service life, and supply reliability as well as purchase price.

Failing to define documentation needs

Industrial projects may require inspection reports, material declarations, test results, traceability, or specific packaging and labeling. Clarify these requirements before the purchase order is issued.

10. Industrial Buyer Checklist

Use the following checklist when preparing an Oil/Lube Filter inquiry to help the supplier assess compatibility and provide a relevant quotation.

When the application is critical or the existing filter has failed repeatedly, include details of the failure history and any available oil-analysis or differential-pressure records. These details can help identify whether the main issue is filter selection, contamination ingress, oil degradation, or an underlying equipment fault.
