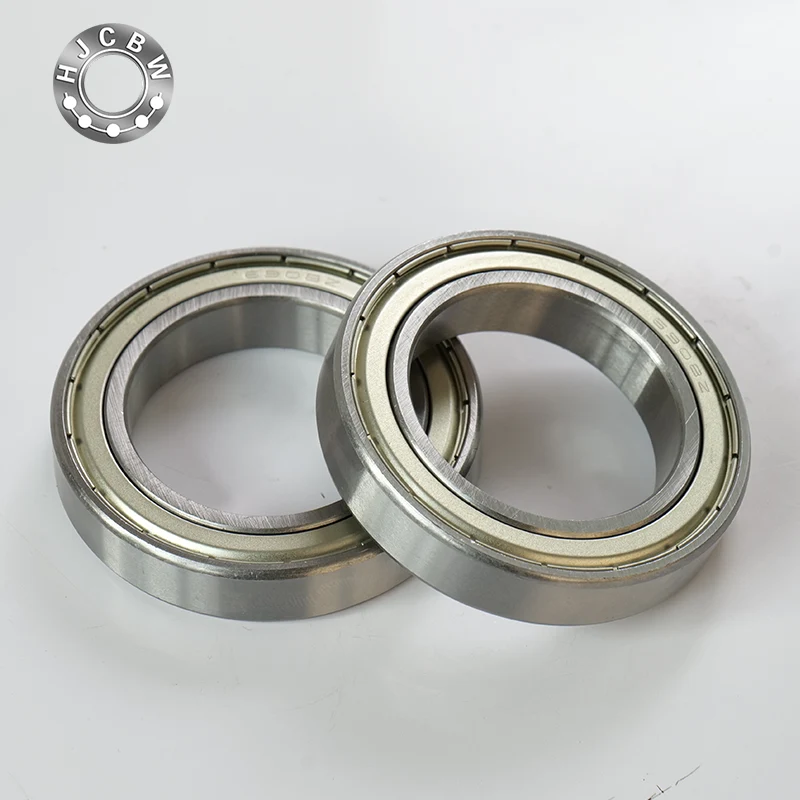

How do Thin Section Bearings unlock lighter designs without sacrificing stiffness?

I spend my days optimizing rotating joints where every gram counts. Along the way I started collaborating with Hengji Bearing, and that is when I learned how much leverage smart choices around Thin Section Bearings actually give a project. When the outer diameter to inner diameter ratio stays tight and the wall becomes slim, a joint stops being a bulky constraint and starts behaving like a tuned component that carries load, saves space, and trims inertia at the same time.

What exactly do I mean by thin section and why does it matter?

In practical applications, when the bearing cross-section remains small and constant across multiple bore sizes, resulting in an extremely low inner-outer diameter differential, I refer to it as a thin-walled bearing. This structure reduces weight, minimises radial space requirements, facilitates cable or slip ring routing within the bore, and lowers the motor torque required to overcome inertia. The issue, however, is straightforward: the reduced cross-section renders tolerances, preload, lubrication, and housing rigidity far more critical than in standard deep-groove designs.

Where do thin section bearings make or break a design?

• Robotics wrists and cobot joints where low inertia improves safety and control
• UAV and EO/IR gimbals where smooth starting torque keeps tracking stable
• Medical tables and CT beds where large through-bore routing simplifies wiring
• Semiconductor wafer handling where clean greases and stainless races resist corrosion
• Compact turntables and AGV LIDAR where space and mass are both limited

How do I choose a cross-section and contact geometry without overbuilding?

I start with the load map and duty cycle, then pick the simplest raceway that meets the combined loads. If axial and radial loads are moderate and moments are small, a deep-groove style thin section does the job. When moments grow or alignment is uncertain, I switch to angular contact pairs with preload. If shock is a risk, I prefer a heavier cross-section only after I have improved housing rigidity and clamping.

Which derivative options actually solve recurring pain points?

Why do seals and shields feel trivial until they are not?

• If the environment is clean and torque is critical, I run shields to minimize drag.
• When dust or coolant mist shows up, I switch to contact or labyrinth seals and accept a small torque bump for longer life.
• In medical or semiconductor equipment, low-volatility greases and stainless shields save hours of rebuild time later.

How do I keep starting torque low without sacrificing stiffness?

• I right-size preload and only add it where positioning accuracy demands it.
• I select a low-bleed grease grade matched to temperature and speed rather than a catch-all grease.
• I validate housing roundness and perpendicularity so the raceway does not get ovalized during installation.
• I choose hybrid ceramic balls when duty cycle and power budget are tight.

When should I pick thin section over crossed roller?

I stay with thin section when continuous rotation and lower torque matter more than peak stiffness per envelope. I move to crossed rollers when moments dominate, rotation is limited, and zero play is non-negotiable. If I need both continuous rotation and higher moment capacity, an angular contact thin section pair with a stiffer cross-section usually lands in the sweet spot.

What does a realistic selection workflow look like?

1. Capture loads across the full duty cycle including shock and start-stop events.
2. Define target life and reliability and translate that into a dynamic capacity requirement.
3. Pick the smallest constant cross-section meeting loads and stiffness after housing analysis.
4. Decide on deep-groove vs angular contact and set preload level based on backlash targets.
5. Select material and balls, then match grease and sealing to temperature and environment.
6. Model starting torque and heat rise, then prototype with actual housings to verify.

How do I prevent the common early failures I keep seeing?

• False brinelling from transport vibration gets avoided with better packaging and handling jigs.
• Microscopic misalignment that spikes torque disappears when I improve shoulder squareness and clamp flatness.
• Grease starvation after high-speed run-in gets fixed with the right fill percentage and channeling behavior.
• Unexpected corrosion goes away when I match material to cleaning agents and humidity rather than assuming “stainless is enough”.

What performance factors belong on my shortlist before I request a quote?

Who stands behind the supply and why does that reduce my project risk?

I work with suppliers who design for manufacturability from day one. That is why I partner with Hengji Bearing. The team focuses on consistent cross-section control, matched pairs with verified preload, and material options from high-carbon bearing steel to stainless and hybrid configurations. We operate as a professional Chinese thin section specialist with strong process control, so the price stays reasonable while quality stays predictable.

How do I summarize the thin section rule of thumb I trust?

• Use the smallest constant cross-section that still hits stiffness and life after housing analysis.
• Add preload only where backlash targets demand it and verify with your real clamps.
• Pick seals and grease for the environment you actually have, not the environment you wish you had.
• Prototype early with your real housings and measure torque and temperature rise, not just capacity.

Would you like me to help size your next joint?

If you want a quick pass on loads, stiffness, and torque with a concrete recommendation from Hengji Bearing, contact us and tell me what you are building. We are a leading China manufacturer of thin section solutions with high quality and fair pricing. If you are considering Thin Section Bearings for robotics, medical equipment, or compact automation,  I will follow up with sizing advice and a quotation.
