How Does a Semi Welded Heat Exchanger – Plate Exchange And Gasket Deliver Efficiency and Reliability?

In modern industrial thermal systems, efficiency, safety, and adaptability are no longer optional—they are decisive factors that influence operating costs and long-term stability. The Semi Welded Heat Exchanger – Plate Exchange And Gasket has emerged as a highly practical solution for industries that need to handle aggressive media while still benefiting from the flexibility of gasketed plate heat exchangers. By combining welded plate pairs with gasketed channels, this design bridges the gap between fully welded and fully gasketed heat exchangers, offering both durability and serviceability.

What Is a Semi Welded Heat Exchanger – Plate Exchange And Gasket?

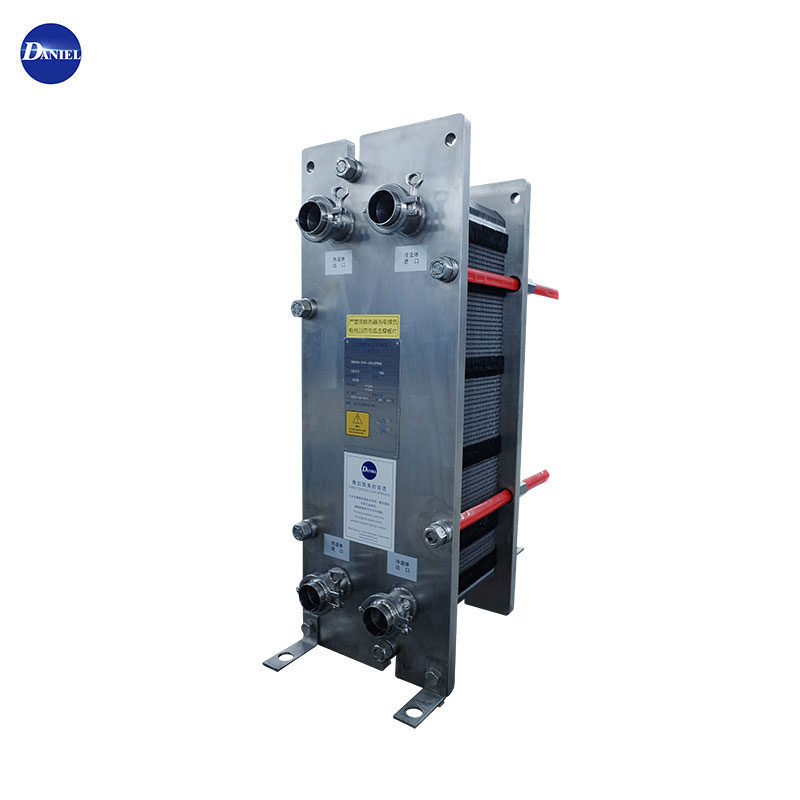

A Semi Welded Heat Exchanger – Plate Exchange And Gasket is a plate heat exchanger where two plates are laser-welded together to form a cassette, while gaskets are used between cassettes. One side of the flow path is fully welded (for aggressive or high-pressure fluids), and the other side remains gasketed (for easier maintenance and flexibility).

This hybrid structure allows industries to safely process corrosive or hazardous media such as ammonia, refrigerants, or certain chemicals, without sacrificing ease of inspection and plate replacement.

Core Structure: Plate Exchange and Gasket Design

The strength of a semi welded plate heat exchanger lies in its intelligent structural design:

• Welded plate cassettes: Provide high resistance to pressure and corrosion

• Gasketed channels: Allow easy disassembly and maintenance

• Chevron plate patterns: Enhance turbulence and heat transfer efficiency

• Compact frame design: Saves installation space

Basic Component Overview

Why Choose Semi Welded Over Fully Gasketed or Fully Welded?

Semi Welded vs Fully Gasketed

• Better resistance to aggressive fluids

• Reduced risk of gasket failure on critical media side

• Longer service life in demanding conditions

Semi Welded vs Fully Welded

• Easier maintenance and inspection

• Lower lifecycle cost

• Flexible capacity expansion by adding plates

This balance makes the Semi Welded Heat Exchanger – Plate Exchange And Gasket a cost-effective and technically superior option for many industrial applications.

Key Functions and Industrial Applications

Main Functions

• Efficient heat transfer between two fluids

• Safe containment of hazardous or corrosive media

• Stable operation under fluctuating pressure and temperature

Typical Applications

• Refrigeration systems (ammonia, CO₂)

• Chemical processing plants

• Oil & gas auxiliary cooling

• HVAC and district cooling systems

Performance Effects and Operational Benefits

Using a Semi Welded Heat Exchanger – Plate Exchange And Gasket delivers measurable operational advantages:

• Higher heat transfer coefficients due to turbulent flow

• Reduced energy consumption and operating costs

• Improved system safety with welded flow paths

• Minimal downtime thanks to gasketed maintenance side

From both an engineering and economic perspective, this design significantly improves system reliability.

Importance in Modern Industrial Systems

As industries face stricter safety regulations and higher efficiency targets, semi welded heat exchangers are becoming increasingly important. They offer:

• Compliance with safety and environmental standards

• Scalability for future capacity needs

• Long-term return on investment

For companies seeking sustainable and future-proof thermal solutions, this technology is no longer optional—it is strategic.

Why Jiangyin Daniel Cooler Co., Ltd.?

Jiangyin Daniel Cooler Co., Ltd. specializes in the design and manufacture of advanced plate heat exchanger solutions. With years of engineering experience and strict quality control, we provide customized Semi Welded Heat Exchanger – Plate Exchange And Gasket systems tailored to your operating conditions.

Our Advantages

• Professional thermal design support

• High-quality plate and gasket materials

• Flexible customization for different industries

• Reliable delivery and after-sales service

Conclusion

The Semi Welded Heat Exchanger – Plate Exchange And Gasket represents a smart balance between strength and flexibility, making it ideal for demanding industrial environments. Its hybrid design ensures safety, efficiency, and long-term operational stability while keeping maintenance simple and cost-effective.

If you are looking for a professional, reliable, and performance-driven heat exchanger solution, Jiangyin Daniel Cooler Co., Ltd. is your trusted partner. Contact us today to discuss your project requirements and discover how we can optimize your thermal system for maximum efficiency and safety.
