How Does a Switchgear Bushing Improve Electrical System Safety and Performance?

Abstract

Switchgear bushings are critical components in medium and high-voltage electrical systems, acting as insulated passages that allow conductors to pass safely through grounded enclosures. Despite their relatively simple appearance, their design, material selection, and performance directly influence system reliability, safety, and longevity. This article explores how switchgear bushings function, the problems they solve, how to select the right type, and practical strategies to maximize performance while minimizing maintenance costs and failure risks.

Table of Contents

• 1. What Is a Switchgear Bushing?
• 2. How Does a Switchgear Bushing Work?
• 3. Key Customer Pain Points and Solutions
• 4. Types of Switchgear Bushings
• 5. Materials and Design Considerations
• 6. Installation and Maintenance Best Practices
• 7. Performance Comparison Table
• 8. How to Choose the Right Supplier
• 9. FAQ

1. What Is a Switchgear Bushing?

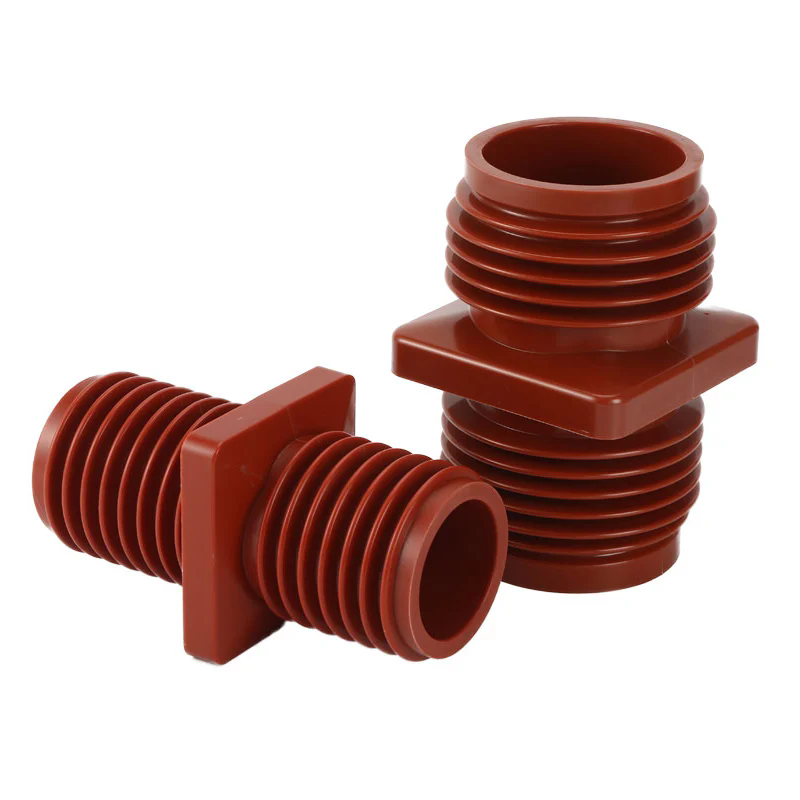

A switchgear bushing is an insulating structure that allows an electrical conductor to pass through a grounded barrier, such as a switchgear enclosure or transformer tank, without causing electrical faults. It ensures proper insulation between energized components and grounded metal parts.

In high-voltage systems, the integrity of insulation is non-negotiable. A failure in the bushing can result in arc faults, equipment damage, or even system-wide outages. Therefore, bushings are engineered with precision to withstand electrical, thermal, and mechanical stresses.

2. How Does a Switchgear Bushing Work?

The working principle of a switchgear bushing is based on controlled insulation and electric field distribution. It performs three core functions:

• Electrical Insulation: Prevents current leakage between conductor and grounded enclosure.
• Mechanical Support: Holds the conductor securely in place.
• Environmental Protection: Shields internal components from moisture, dust, and contaminants.

Advanced designs incorporate capacitive grading or layered insulation to ensure even electric field distribution, reducing stress concentration and extending operational life.

3. Key Customer Pain Points and Solutions

1. Frequent Failures and Downtime

Low-quality bushings often degrade quickly under electrical stress. The solution lies in selecting products with high dielectric strength and proven testing standards.

2. Insulation Breakdown

Environmental factors such as humidity and pollution can compromise insulation. Using composite or resin-impregnated bushings significantly improves resistance to these conditions.

3. High Maintenance Costs

Traditional bushings may require frequent inspection. Modern maintenance-free designs reduce lifecycle costs.

4. Compatibility Issues

Improper sizing or mismatched specifications can lead to installation challenges. Always ensure compatibility with system voltage, current rating, and installation environment.

4. Types of Switchgear Bushings

• Porcelain Bushings: Known for durability and excellent insulation, but heavier and more fragile.
• Epoxy Resin Bushings: Lightweight, high mechanical strength, and suitable for indoor applications.
• Composite Bushings: Combine polymer insulation with fiberglass cores for superior performance in harsh environments.

5. Materials and Design Considerations

Material selection directly impacts performance. Key considerations include:

• Dielectric Strength: Determines insulation capability under high voltage.
• Thermal Resistance: Ensures stability under load conditions.
• Mechanical Strength: Prevents damage during installation and operation.
• Environmental Resistance: Protects against UV, moisture, and pollution.

Design features such as creepage distance and shed profile are optimized to minimize surface leakage currents and improve reliability.

6. Installation and Maintenance Best Practices

Installation Tips:

• Ensure proper alignment to avoid mechanical stress.
• Use torque-controlled tightening to prevent damage.
• Verify insulation resistance before commissioning.

Maintenance Tips:

• Conduct periodic visual inspections for cracks or contamination.
• Clean surfaces to maintain insulation performance.
• Monitor temperature and partial discharge levels.

7. Performance Comparison Table

8. How to Choose the Right Supplier

Selecting a reliable manufacturer is as important as choosing the right product. A qualified supplier should offer:

• Strict quality control and testing procedures
• Customizable solutions for specific applications
• Technical support and documentation
• Proven industry experience

Zhejiang Sehnaider Electric Co.,Ltd. specializes in high-performance switchgear bushings designed to meet demanding industrial requirements. Their products are engineered with advanced materials and rigorous testing to ensure consistent reliability and long service life.

9. FAQ

Q1: What causes switchgear bushing failure?

Common causes include insulation aging, moisture ingress, contamination, and electrical overstress.

Q2: How often should bushings be inspected?

Inspection frequency depends on operating conditions, but typically ranges from every 6 months to annually.

Q3: Can bushings be repaired?

Minor issues like surface contamination can be addressed, but internal insulation failure usually requires replacement.

Q4: What is the typical lifespan?

High-quality bushings can last 20–30 years with proper maintenance.

Conclusion

Switchgear bushings play a foundational role in ensuring electrical system safety, stability, and efficiency. From insulation performance to environmental resistance, every design detail matters. By understanding how these components work and selecting the right type and supplier, businesses can significantly reduce operational risks and maintenance costs.

If you are looking for reliable, high-quality switchgear bushings tailored to your application, Zhejiang Sehnaider Electric Co.,Ltd. is ready to support your needs. Contact us today to get expert guidance and customized solutions that enhance your system performance and long-term reliability.
