How Does a Type Z12 Locking Assembly Improve Mechanical Transmission Performance?
2026-08-13
Article Summary:
A Type Z12 Locking Assembly is an advanced keyless connection component designed to provide reliable torque transmission, precise positioning, and efficient installation for industrial machinery. Compared with traditional keyed shaft connections, this solution reduces stress concentration, improves operational stability, and helps manufacturers achieve longer equipment service life. This article explains how a Type Z12 Locking Assembly works, why it is widely used in power transmission systems, what problems it solves for engineers, and how Jiteng provides dependable solutions for demanding industrial applications.
Table of Contents
- 1. Introduction to Type Z12 Locking Assembly
- 2. How Does a Type Z12 Locking Assembly Work?
- 3. Key Advantages of Using Type Z12 Locking Assembly
- 4. What Industrial Problems Can Type Z12 Locking Assembly Solve?
- 5. Common Applications of Type Z12 Locking Assembly
- 6. How to Select the Right Type Z12 Locking Assembly?
- 7. Installation and Maintenance Guidelines
- 8. Type Z12 Locking Assembly vs Traditional Shaft Connections
- 9. Frequently Asked Questions
- 10. Conclusion
1. Introduction to Type Z12 Locking Assembly
Modern industrial equipment requires mechanical connection systems that can handle high loads, maintain precision, and reduce downtime. Shaft and hub connections are critical components in machinery because they directly influence transmission efficiency and operational reliability.

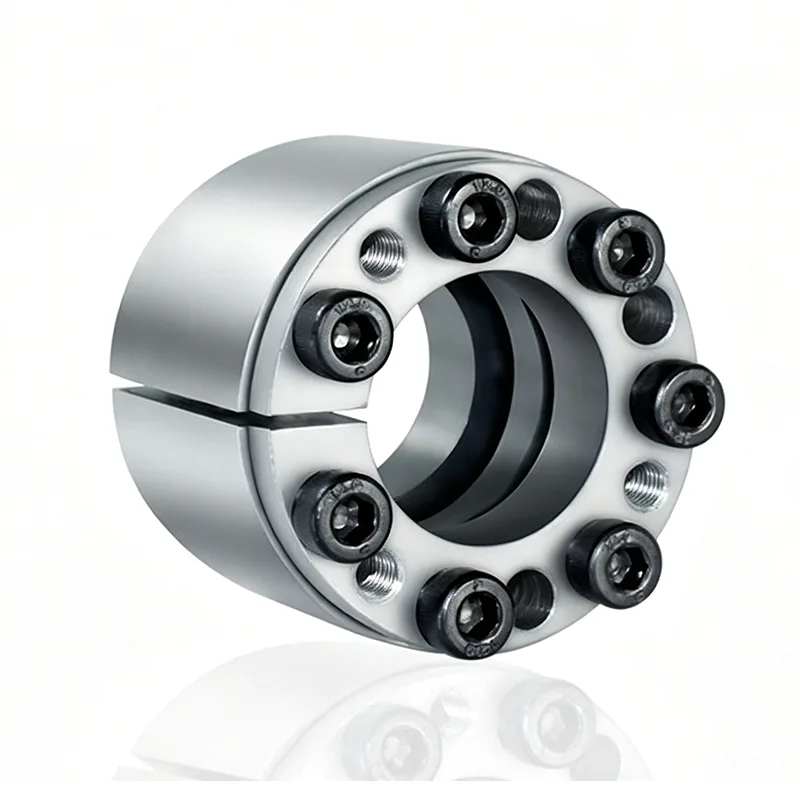

A Type Z12 Locking Assembly is a keyless locking device that connects shafts and hubs through friction generated by high-strength bolt tightening. Instead of depending on traditional keys or splines, the assembly creates a strong clamping force between connected components, allowing torque and axial forces to be transmitted safely.
For manufacturers searching for stable and efficient transmission solutions, Jiteng provides Type Z12 Locking Assembly products designed for industrial environments where accuracy, durability, and easy maintenance are essential.
The Type Z12 design is commonly recognized for its ability to provide secure shaft locking performance while maintaining convenient installation and removal characteristics. Keyless locking assemblies are widely applied in machinery because they avoid many limitations associated with traditional mechanical connections.
2. How Does a Type Z12 Locking Assembly Work?
Understanding the working mechanism of a Type Z12 Locking Assembly helps engineers select the correct transmission solution. The operating principle is based on controlled friction and radial pressure.
When the high-strength bolts are tightened, the inner and outer rings of the locking assembly move relative to each other. This action generates pressure between the shaft and hub surfaces. The resulting friction force creates a secure connection capable of transferring torque and axial loads.
| Component | Function |
|---|---|
| Inner Ring | Creates contact pressure with the shaft surface. |
| Outer Ring | Provides connection force with the hub. |
| High-strength Bolts | Generate tightening force for locking performance. |
| Friction Surface | Transfers torque and axial loads without keys. |
This structure provides a gap-free connection that improves concentricity and reduces mechanical vibration. Unlike keyed connections, the Type Z12 Locking Assembly distributes force evenly around the shaft, minimizing local stress points.
3. Key Advantages of Using Type Z12 Locking Assembly
Industrial users often face challenges such as connection failure, complicated installation procedures, and excessive maintenance costs. A Type Z12 Locking Assembly addresses these concerns through several performance advantages.
- High Torque Transmission Capability: The friction-based connection allows efficient transmission of large torque loads.
- Keyless Design: Eliminates the need for keyways, reducing shaft damage and stress concentration.
- Easy Installation: Installation can be completed by tightening bolts according to specified torque requirements.
- Simple Disassembly: Components can be removed without damaging shafts or hubs.
- Improved Precision: Provides accurate positioning and excellent concentricity.
- Long Service Life: Reduces wear caused by traditional mechanical connection methods.
| Feature | Benefit for Users |
|---|---|
| Keyless Connection | Less stress concentration and improved shaft reliability |
| Friction Locking System | Stable power transmission performance |
| Precision Manufacturing | Better equipment accuracy |
| Reusable Structure | Lower replacement and maintenance costs |
4. What Industrial Problems Can Type Z12 Locking Assembly Solve?
Many industrial machines experience performance problems caused by inefficient shaft connection methods. These issues can lead to unexpected downtime, maintenance difficulties, and reduced productivity.
The Type Z12 Locking Assembly helps solve several common engineering challenges:
-
Problem: Shaft damage caused by key grooves.
Solution: The keyless structure eliminates the need for machining keyways, preserving shaft strength. -
Problem: Difficult equipment assembly.
Solution: The locking assembly can be installed using standard tools without heating or cooling procedures. -
Problem: Reduced transmission accuracy.
Solution: Uniform pressure distribution improves alignment and positioning precision. -
Problem: Frequent maintenance requirements.
Solution: A reliable friction connection reduces wear and extends component lifespan.
5. Common Applications of Type Z12 Locking Assembly
Due to its reliable mechanical performance, the Type Z12 Locking Assembly is suitable for various industries that require secure shaft-hub connections.
- Industrial gearboxes
- Conveyor systems
- Packaging machinery
- Mining equipment
- Textile machinery
- Automation equipment
- Printing machinery
- Heavy-duty transmission systems
In these applications, equipment reliability directly affects production efficiency. A properly selected locking assembly helps maintain stable operation under continuous working conditions.
6. How to Select the Right Type Z12 Locking Assembly?
Choosing the correct locking assembly requires consideration of several technical factors. Incorrect selection may result in insufficient load capacity or reduced service performance.
| Selection Factor | Important Consideration |
|---|---|
| Shaft Diameter | Ensure compatibility between shaft size and assembly specification. |
| Torque Requirement | Select a model capable of handling operating loads. |
| Operating Environment | Consider temperature, vibration, and working conditions. |
| Installation Space | Confirm available mounting dimensions. |
Jiteng supports customers with professional product guidance to help select suitable Type Z12 Locking Assembly solutions according to equipment requirements.
7. Installation and Maintenance Guidelines
Proper installation directly affects the performance of a Type Z12 Locking Assembly. Following correct procedures ensures maximum transmission reliability.
- Clean the shaft and hub contact surfaces before installation.
- Check that the assembly dimensions match equipment requirements.
- Install the locking assembly into the required position.
- Tighten bolts gradually and evenly according to recommended torque values.
- Inspect the connection after initial operation.
Regular inspection should focus on bolt tightening condition, operating vibration, and abnormal noise. Preventive maintenance helps avoid unexpected machine failures.
8. Type Z12 Locking Assembly vs Traditional Shaft Connections
| Comparison Item | Type Z12 Locking Assembly | Traditional Key Connection |
|---|---|---|
| Connection Method | Friction-based keyless locking | Mechanical key engagement |
| Stress Distribution | Uniform pressure distribution | Concentrated stress around key area |
| Installation | Simple bolt tightening | Requires keyway machining |
| Maintenance | Easy removal and replacement | More complicated maintenance |
| Precision | High concentricity | May experience clearance issues |
9. Frequently Asked Questions
Q1: What is a Type Z12 Locking Assembly used for?
A Type Z12 Locking Assembly is mainly used to connect shafts and hubs in mechanical transmission systems, allowing torque and axial loads to be transferred efficiently without using keys.
Q2: Why choose a keyless locking assembly instead of a keyed connection?
Keyless locking assemblies provide better stress distribution, easier installation, and improved positioning accuracy compared with many traditional keyed solutions.
Q3: Can a Type Z12 Locking Assembly be reused?
Yes. When properly removed and maintained, the assembly can often be reused for suitable applications.
Q4: How does Jiteng ensure product reliability?
Jiteng focuses on manufacturing precision, material quality, and consistent production processes to provide dependable locking solutions for industrial customers.
Q5: What industries can use Type Z12 Locking Assembly products?
They are widely used in automation, manufacturing, conveyor systems, packaging machinery, and other industrial transmission applications.
10. Conclusion
A Type Z12 Locking Assembly provides an efficient solution for modern mechanical transmission challenges. Its keyless structure, strong torque capability, and convenient installation make it a valuable choice for industries requiring reliable shaft and hub connections.
By reducing stress concentration, improving precision, and simplifying maintenance, this technology helps manufacturers improve equipment performance and operational efficiency. Jiteng continues to provide high-quality Type Z12 Locking Assembly solutions designed to meet different industrial application requirements.
If you are looking for a reliable locking solution with excellent transmission performance and professional support, please contact us today. Jiteng is ready to provide customized Type Z12 Locking Assembly solutions that help your equipment achieve safer, more stable, and more efficient operation.
