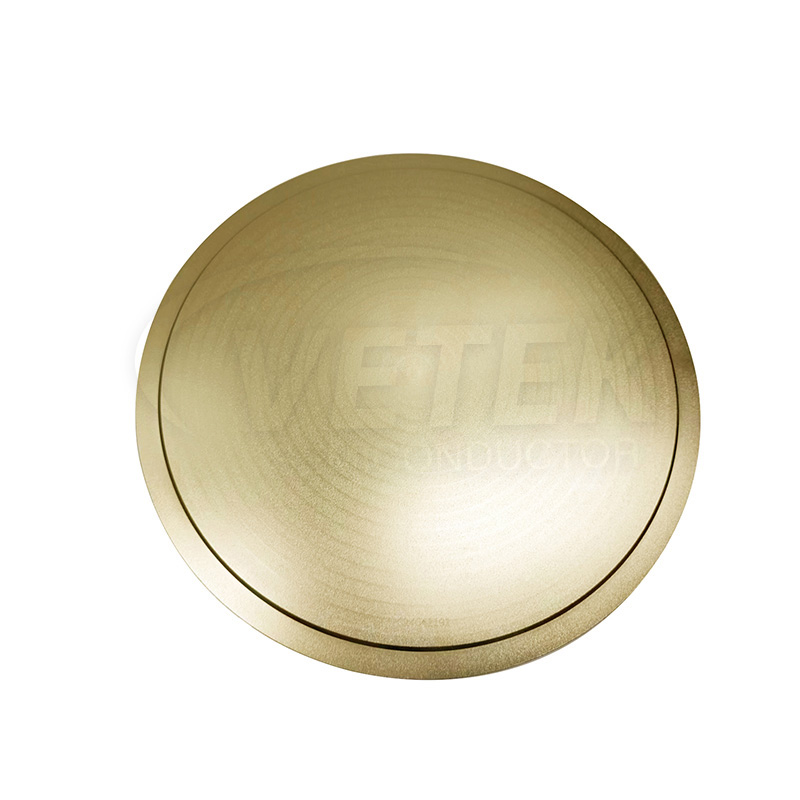

How Does CVD Processing Affect the Quality of a CVD TaC Coating Cover?

2026-10-16

A semiconductor equipment engineer compares two CVD TaC Coating Cover units from different suppliers. Both are specified with a coating thickness of 20 microns and a purity of 99.5 percent. The first cover lasts 18 months in an etch chamber. The second cover fails after 5 months with coating delamination and particle excursions. The engineer cuts both covers and examines the cross-sections under a microscope. The first cover has a dense, columnar structure with a gradual interface between the coating and the substrate. The second cover has a porous structure with a sharp interface and visible voids at the bond line. The difference is not the thickness or the purity. It is the CVD processing. This guide explains how CVD parameters affect the quality and service life of a TaC coating cover.

1. How Does Deposition Temperature Affect Coating Density and Adhesion?

The deposition temperature is the most important parameter in CVD TaC Coating Cover production. It determines the reaction kinetics, the crystal structure, and the adhesion to the substrate. At low temperature (900°C to 1,000°C), the reaction rate is slow, and the coating tends to be amorphous or fine-grained. The adhesion is good, but the density is low, and the coating is prone to erosion. At high temperature (1,100°C to 1,300°C), the reaction rate is fast, and the coating is crystalline and dense. The adhesion is excellent, but the thermal stress at the interface is higher, which can cause cracking if the cooling rate is not controlled. The table below shows the effect of deposition temperature on coating properties.

Deposition temperature (°C)	Coating structure	Density (g/cm³)	Adhesion strength (MPa)	Typical service life
900 – 1,000	Amorphous / fine grain	12.5 – 13.5	40 – 50	6 – 10 months
1,000 – 1,100	Mixed columnar	13.5 – 14.2	50 – 60	12 – 15 months
1,100 – 1,200	Dense columnar	14.2 – 14.8	60 – 75	18 – 24 months
1,200 – 1,300	Coarse columnar	14.5 – 15.0	55 – 65	12 – 18 months

The optimal deposition temperature for our CVD TaC Coating Cover is 1,150°C to 1,200°C. This range produces a dense columnar structure with high adhesion and moderate thermal stress. In our factory, we use a three-zone furnace with independent temperature control to maintain uniformity across the cover surface. WuYi TianYao New Material Tech.Co.,Ltd. has been producing CVD TaC coatings for over 10 years and has optimized the temperature profile for different substrate geometries.

2. How Does the Precursor Ratio Affect Coating Purity and Stoichiometry?

The CVD TaC Coating Cover is deposited from a gas mixture containing a tantalum precursor (such as TaCl₅) and a carbon precursor (such as CH₄ or C₃H₈). The ratio of these precursors determines the stoichiometry of the coating. A stoichiometric TaC coating has a carbon-to-tantalum ratio of 1:1. If the ratio is too low (carbon deficient), the coating contains free tantalum, which is ductile but has lower hardness. If the ratio is too high (carbon rich), the coating contains free carbon, which reduces the density and increases the porosity. The table below shows the effect of precursor ratio on coating properties.

C/Ta ratio in gas	Coating stoichiometry	Hardness (HV)	Porosity	Erosion resistance
0.8	TaC + free Ta	1,800 – 2,000	Low	Moderate
1.0	Stoichiometric TaC	2,500 – 2,800	Very low	Excellent
1.2	TaC + free C	2,200 – 2,500	Moderate	Good
1.5	TaC + excess C	1,800 – 2,100	High	Poor

In our factory, we maintain the C/Ta ratio at 1.0 ± 0.05 to achieve stoichiometric TaC with maximum hardness and minimum porosity. We use a mass flow controller to precisely regulate the precursor gases. We also monitor the exhaust gas composition to verify that the reaction is complete. VETEK provides a certificate of analysis with each CVD TaC Coating Cover that includes the stoichiometry and the hardness.

3. How Does Deposition Rate Affect Coating Uniformity and Stress?

The deposition rate determines how fast the coating grows. A high deposition rate reduces the production cost but can lead to non-uniform thickness, high residual stress, and poor adhesion. A low deposition rate produces a more uniform and denser coating but increases the cost. The table below shows the effect of deposition rate on coating quality.

Deposition rate (µm/hour)	Thickness uniformity	Residual stress (MPa)	Adhesion	Production cost
2 – 5	Excellent (±3%)	100 – 150 (compressive)	Excellent	High
5 – 10	Good (±5%)	150 – 250 (compressive)	Good	Moderate
10 – 20	Moderate (±10%)	250 – 400 (compressive)	Fair	Low
> 20	Poor (±15%)	> 400 (compressive)	Poor	Very low

Equipment engineer's note: The deposition rate must be balanced against the required coating thickness. For a 20 micron coating, a deposition rate of 5 µm/hour requires 4 hours of deposition time. A rate of 20 µm/hour requires only 1 hour, but the coating quality is lower. In our factory, we use a deposition rate of 5 to 8 µm/hour for critical components. This provides a good balance of quality and cost. We also use a rotating substrate holder to improve the thickness uniformity.

4. How Does Post-Deposition Cooling Affect Coating Integrity?

The cooling rate after deposition is often overlooked, but it has a significant effect on the coating integrity. If the cooling rate is too fast, the thermal stress at the interface between the coating and the substrate can exceed the bond strength, causing delamination or cracking. If the cooling rate is too slow, the production time is extended, and the coating may undergo grain growth, which reduces the hardness. The table below shows the effect of cooling rate on coating integrity.

Cooling rate (°C/min)	Thermal stress (MPa)	Delamination risk	Coating hardness
1 – 2	50 – 80	Very low	2,400 – 2,600 HV
2 – 5	80 – 120	Low	2,500 – 2,700 HV
5 – 10	120 – 200	Moderate	2,600 – 2,800 HV
> 10	> 200	High	2,500 – 2,700 HV (with microcracks)

In our factory, we use a controlled cooling rate of 2°C to 5°C per minute after the deposition is complete. The furnace is cooled under a nitrogen atmosphere to prevent oxidation. We also use a slow cooling ramp for the first 200°C to minimize the thermal stress at the interface. WuYi TianYao New Material Tech.Co.,Ltd. has validated this cooling profile through thermal cycling tests and field performance data.

Frequently Asked Questions About CVD Processing for TaC Coating Covers

Question 1: What is the typical coating thickness for a CVD TaC coating cover in semiconductor applications?

Answer: The typical coating thickness for a CVD TaC Coating Cover in semiconductor applications is 10 to 30 microns. The thickness depends on the application and the expected wear rate. For etch chamber components, a thickness of 20 to 25 microns provides a service life of 12 to 18 months. For components that are exposed to high-energy plasma, a thicker coating (30 to 40 microns) may be required. However, a thicker coating has higher residual stress and a greater risk of delamination. In our factory, we recommend a thickness of 20 microns for most applications and adjust the deposition time to achieve the required thickness. We also provide a thickness map for each cover that shows the thickness at 9 points across the surface.

Question 2: How do I know if a CVD TaC coating cover has good adhesion?

Answer: The adhesion of a CVD TaC Coating Cover can be evaluated by three methods. The first is the scratch test, which measures the load required to cause coating failure. A good coating has a critical load above 40 N. The second is the thermal cycling test, which cycles the coated part between room temperature and 600°C. A good coating shows no delamination after 100 cycles. The third is the field performance test, which measures the particle count and the coating appearance after a specified number of process hours. In our factory, we perform the scratch test and the thermal cycling test on every production batch. We also provide a sample for the customer to test in their own chamber before committing to a production order. WuYi TianYao New Material Tech.Co.,Ltd. provides full test documentation with every CVD TaC Coating Cover.

Question 3: Can the CVD process be adjusted to coat complex geometries with uniform thickness?

Answer: Yes, the CVD process can be adjusted to coat complex geometries, but it requires careful design of the gas flow and the substrate fixturing. The gas flow must reach all surfaces of the part, including internal channels and blind holes. The substrate must be rotated or tilted to ensure uniform exposure to the gas. In our factory, we use a multi-axis rotation system that exposes all surfaces to the gas mixture. We also use a low deposition rate and a high gas flow rate to improve the throwing power of the process. For very complex geometries, we use a pulsed CVD process that alternates between deposition and purging to ensure that the gas reaches all areas. We can provide a coating uniformity map for your specific geometry. Please contact our engineering team for a feasibility assessment.

Summary for Equipment Engineers and Process Engineers

The quality of a CVD TaC Coating Cover is determined by the CVD processing parameters: deposition temperature, precursor ratio, deposition rate, and cooling rate. The optimal temperature is 1,150°C to 1,200°C, the optimal C/Ta ratio is 1.0, the optimal deposition rate is 5 to 8 µm/hour, and the optimal cooling rate is 2°C to 5°C per minute. These parameters produce a dense, stoichiometric coating with high adhesion and low residual stress. By controlling these parameters, manufacturers can produce TaC coating covers that last 18 to 24 months in semiconductor etch chambers. WuYi TianYao New Material Tech.Co.,Ltd. has been producing CVD TaC coatings for over 10 years and provides full process documentation for our customers.

WuYi TianYao New Material Tech.Co.,Ltd. manufactures CVD TaC Coating Cover units with dense columnar structure, stoichiometric composition, and high adhesion. We provide thickness maps, stoichiometry certificates, and scratch test reports for all of our products.

Need a CVD TaC coating cover for your semiconductor equipment? Contact WuYi TianYao New Material Tech.Co.,Ltd. for a free consultation. We will review your application and recommend the optimal coating thickness and CVD parameters.
