How to Choose the Right Tool Holders for Milling?
2025-12-18
Article Summary: This comprehensive guide explores Tool Holders for Milling, providing detailed specifications, applications, and answers to common questions. Learn how to select the ideal tool holder for efficient milling performance and machining accuracy.
Table of Contents
- Introduction to Tool Holders for Milling
- Key Types and Specifications of Milling Tool Holders
- How to Select the Appropriate Tool Holder?
- Common Questions About Tool Holders for Milling
- Conclusion and Brand Information

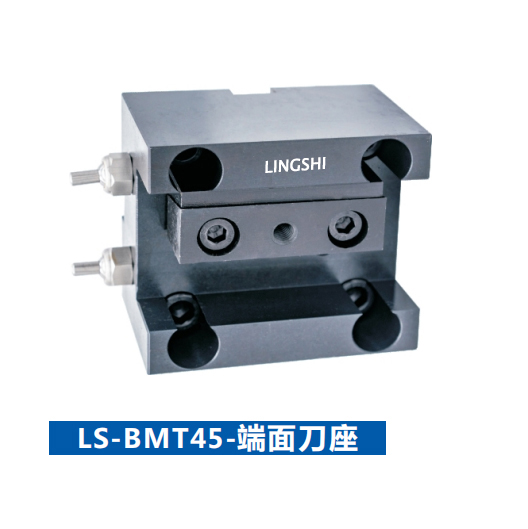

Introduction to Tool Holders for Milling
Tool holders for milling are critical components in CNC machining and conventional milling operations, providing the essential connection between the cutting tool and the spindle of a milling machine. They play a decisive role in machining accuracy, surface finish, and operational efficiency. Selecting the correct tool holder can significantly affect production quality, reduce tool wear, and minimize vibration during high-speed milling.
This article focuses on how to choose the most suitable tool holders, emphasizing detailed parameters, performance factors, and practical usage scenarios. The discussion covers a variety of milling tool holders, including collet chucks, hydraulic chucks, shrink-fit holders, and CAT/BT/HSK standards widely used in industrial settings.
Key Types and Specifications of Milling Tool Holders
The selection of a milling tool holder depends on the type of milling operation, spindle type, tool size, and material to be machined. The following table summarizes commonly used tool holders along with their technical specifications.
| Tool Holder Type | Shank Standard | Clamping Method | Diameter Range | Length | Runout Accuracy |
|---|---|---|---|---|---|
| Collet Chuck | ISO/CAT/BT | ER Collet | Ø1mm – Ø32mm | 50mm – 150mm | ≤0.005 mm |
| Straight Shank Holder | DIN/ANSI | Direct Clamping | Ø6mm – Ø50mm | 60mm – 200mm | ≤0.008 mm |
| Shrink-Fit Holder | CAT/BT/HSK | Thermal Shrinking | Ø3mm – Ø32mm | 80mm – 180mm | ≤0.003 mm |
| Hydraulic Holder | CAT/BT/HSK | Hydraulic Clamping | Ø3mm – Ø50mm | 80mm – 250mm | ≤0.002 mm |
| End Mill Holder | ISO/CAT/BT | Set Screw / Hydraulic | Ø3mm – Ø32mm | 50mm – 150mm | ≤0.01 mm |
Understanding these specifications is crucial for matching the tool holder with the milling cutter and machine spindle. Factors such as runout accuracy, clamping stability, and tool diameter compatibility directly impact milling performance, especially in precision machining or high-speed applications.
How to Select the Appropriate Tool Holder?
1. How does the spindle interface affect tool holder selection?
The spindle interface, including CAT, BT, and HSK standards, determines the compatibility and rigidity of the tool holder. CAT and BT are widely used for conventional milling machines, providing robust clamping. HSK tool holders are preferred for high-speed applications due to their hollow taper design, offering minimal runout and enhanced stability. Choosing the correct spindle interface ensures optimal torque transfer and vibration control.
2. How to evaluate runout and accuracy of a tool holder?
Runout refers to the deviation of the tool tip from its intended rotational axis. Lower runout ensures better surface finish and longer tool life. Precision tool holders such as hydraulic or shrink-fit types typically offer runout accuracy ≤0.003 mm. Measuring runout using a dial indicator or laser measurement system is recommended before high-precision milling.
3. How to determine the right clamping method?
Clamping methods influence tool stability and ease of use. ER collet chucks are versatile for a wide range of diameters but may require frequent adjustments. Hydraulic and shrink-fit holders offer minimal runout and strong gripping force, making them suitable for heavy-duty or high-speed milling operations. Selecting a clamping method involves balancing precision requirements, setup time, and operational efficiency.
4. How to match tool holder length and cutter size?
Tool overhang affects spindle stability and vibration. Longer holders may be necessary for deep milling, but they reduce rigidity. Shorter holders maximize stiffness but may limit accessibility. Determining the ideal holder length requires considering cutter length, milling depth, and machine spindle capabilities. Maintaining an optimal length-to-diameter ratio is essential for achieving precise results.
Common Questions About Tool Holders for Milling
Conclusion and Brand Information
Selecting the right tool holders for milling is a critical step in optimizing machining efficiency, precision, and tool life. Understanding spindle compatibility, clamping methods, runout accuracy, and tool overhang ensures superior performance in various milling operations. By applying these insights, manufacturers can achieve reliable results in high-speed and precision milling.
For high-quality milling tool holders, Jingfusi offers a comprehensive range of precision-engineered solutions that cater to diverse industrial applications. To learn more or request a quote, contact us today and ensure the perfect tool holder solution for your milling requirements.
