How to Optimize Deep Drawing Processes for Industrial Applications?
2025-12-29
Article Summary: This article provides a comprehensive exploration of the Deep Drawing process in sheet metal forming, emphasizing its parameters, techniques, and industrial applications. Readers will gain insights into common issues, solutions, and practical considerations to optimize efficiency and product quality. A FAQ section addresses at least three common inquiries about Deep Drawing processes.
Table of Contents
- Introduction to Deep Drawing
- Deep Drawing Parameters and Specifications
- Common Questions about Deep Drawing
- Future Trends and Industrial Applications
- Brand Information and Contact
Introduction to Deep Drawing

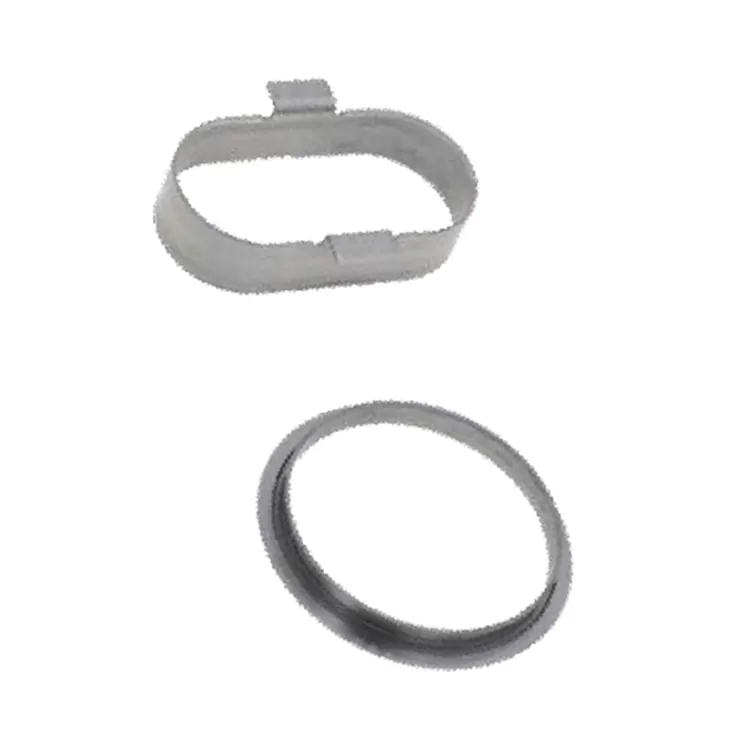

Deep Drawing is a fundamental sheet metal forming process widely utilized in industrial manufacturing for creating hollow or recessed components from flat metal sheets. It involves the controlled stretching of a sheet metal blank over a die to produce products with consistent dimensional accuracy, smooth surfaces, and high mechanical strength.
This article focuses on providing a detailed understanding of Deep Drawing parameters, troubleshooting techniques, and practical applications. The aim is to equip manufacturers, engineers, and industry professionals with insights to improve production efficiency and product quality.
Deep Drawing Parameters and Specifications
Critical parameters influence the Deep Drawing process, including sheet thickness, die dimensions, punch radius, lubrication, and press force. Proper control of these parameters ensures defect-free production and optimal material utilization.
| Parameter | Specification/Range | Description |
|---|---|---|
| Sheet Thickness | 0.2 - 3 mm | Thickness of the metal blank; affects forming force and stretchability |
| Punch Radius | 1.0 - 5 mm | Curvature of the punch tip to minimize wrinkling and tearing |
| Die Clearance | 1.05 - 1.2 × Sheet Thickness | Gap between die and punch to control material flow |
| Lubrication | Oil or dry film lubricant | Reduces friction and prevents surface defects |
| Press Force | 50 - 1000 kN | Depends on material type, thickness, and drawing ratio |
Optimizing these parameters is essential for improving dimensional accuracy, reducing material waste, and preventing common defects such as wrinkling, tearing, or earing during production.
Common Questions about Deep Drawing
1. How to prevent wrinkling in Deep Drawing?
Wrinkling occurs when the metal flow is uneven or the blank holder force is insufficient. To prevent wrinkling, ensure the blank holder applies uniform pressure, select an appropriate punch radius, and optimize lubrication. Additionally, controlling the drawing ratio can reduce excessive stretching that causes wrinkles.
2. What materials are most suitable for Deep Drawing?
Materials with high ductility and low yield strength are ideal. Common metals include low-carbon steel, aluminum, copper, and stainless steel. These materials stretch easily without cracking and provide consistent surface quality.
3. How to determine the maximum drawing ratio?
The maximum drawing ratio is the ratio of the blank diameter to the punch diameter. It depends on the material’s mechanical properties, sheet thickness, and lubrication. Typical ratios range from 1.5 to 2.0 for single-stage drawing and up to 3.0 for multi-stage processes.
4. How to reduce earing during production?
Earing is caused by material anisotropy in rolled sheets. Using annealed materials with uniform grain structure and optimizing the punch-die alignment can significantly reduce earing. Additionally, progressive or multi-stage drawing can minimize surface irregularities.
5. How to select appropriate die clearance?
Die clearance depends on sheet thickness and material type. Typically, it ranges from 5% to 20% larger than the sheet thickness. Proper clearance ensures smooth metal flow, prevents tearing, and reduces excessive force on the press.
Future Trends and Industrial Applications
Deep Drawing continues to evolve with innovations in automation, material science, and computer-aided design. Industrial applications include automotive components, kitchenware, electronics enclosures, and aerospace parts. Advancements in high-strength steel and lightweight aluminum alloys allow for deeper draws and more complex geometries, reducing production costs and enhancing structural performance.
Integration of AI-driven process monitoring and robotic handling systems is increasingly adopted in modern manufacturing facilities. These technologies help optimize press parameters in real-time, improve yield, and reduce scrap rates.
Environmental considerations also influence future trends. Efficient material utilization, energy-saving presses, and sustainable lubrication methods are becoming standard practice for eco-friendly manufacturing.
Brand Information and Contact
Difon Machinery Co., Ltd. has been at the forefront of industrial Deep Drawing machinery, offering precision equipment and comprehensive technical support. Their machines cater to a wide range of sheet metal applications with consistent quality and high reliability.
For inquiries about Deep Drawing solutions or to explore machinery options, contact us today for detailed consultation and product information.
