How to Prevent Cracking Issues Through Controlled Curing Kiln Cycles?

A production supervisor at a concrete block plant receives a customer complaint about cracks in a recent shipment of pavers. The cracks are hairline cracks that run from the corner of the block toward the center. They are not visible on the surface, but they appear after the blocks are installed and exposed to rain. The supervisor checks the mix design, the compaction pressure, and the pallet condition. All are within specification. The supervisor then reviews the Curing Kiln cycle data. The data shows that the kiln was loaded at 6:00 AM and the temperature was raised from 25°C to 65°C in 45 minutes. The hold time was 6 hours, and the cooling was natural. The cracking is not a mix problem. It is a curing problem. This guide explains how controlled curing cycles prevent cracking.

1. Why Does Rapid Heating Cause Cracking in Concrete Products?

Concrete is a brittle material with low tensile strength. When the temperature rises rapidly, the outer surface of the block expands faster than the inner core. This differential expansion creates tensile stress at the surface. If the stress exceeds the tensile strength of the concrete, a crack forms. The crack propagates from the surface toward the core. The critical factor is the heating rate. A heating rate of 20°C per hour is safe for most concrete products. A heating rate of 40°C per hour creates a high risk of cracking. The table below shows the relationship between heating rate and crack risk for a standard concrete mix.

The tensile strength of a typical concrete block is 1.5 to 2.0 MPa. A tensile stress of 1.5 MPa is at the limit of the material. This is why a heating rate above 30°C per hour is dangerous. In our factory, we program the Curing Kiln to heat at a maximum of 20°C per hour. The temperature is ramped from ambient to the target temperature in a controlled manner. QUANGONG MACHINERY CO.,LTD has been manufacturing Curing Kiln systems for over 20 years.

2. What Is the Optimal Holding Temperature and Duration?

The holding temperature determines the rate of strength gain. A higher temperature accelerates the hydration reaction and allows the product to be demolded sooner. But a temperature that is too high causes thermal stress and reduces the ultimate strength of the concrete. The optimal holding temperature for most concrete products is 55°C to 65°C. The holding time depends on the product thickness and the required strength at demolding. The table below shows the recommended holding time for different product thicknesses.

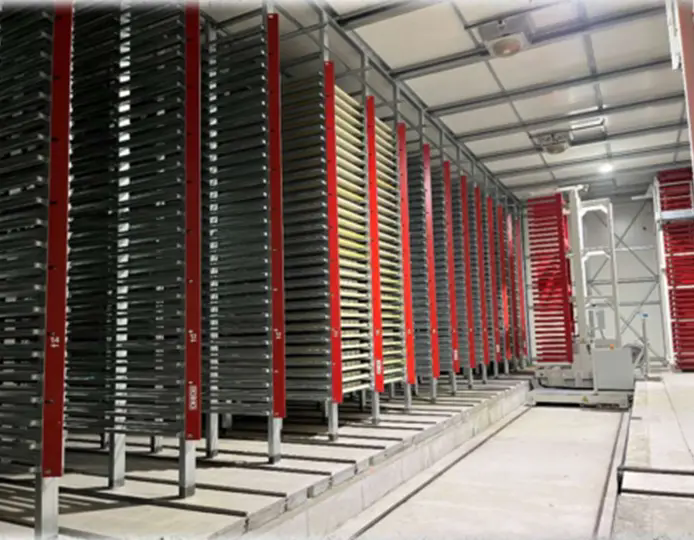

In our factory, we use a Curing Kiln with a PID controller that maintains the holding temperature within ±2°C. The controller monitors the temperature at three points in the kiln and adjusts the steam or hot water flow to maintain uniformity. The holding time is set according to the product thickness and the mix design. QUANGONG MACHINERY CO.,LTD provides a curing cycle recommendation for each product type.

3. Why Is Controlled Cooling More Important Than Heating?

The cooling phase is the most critical phase for crack prevention. When the kiln door is opened and the hot product is exposed to cool ambient air, the surface cools faster than the core. The surface contracts, but the core is still hot and expanded. This creates tensile stress at the surface. If the cooling rate is too fast, the stress exceeds the tensile strength, and a crack forms. The cooling rate should be controlled to a maximum of 15°C per hour. The table below shows the relationship between cooling rate and crack risk.

4. How Should the Curing Cycle Be Adjusted for Different Seasons?

The ambient temperature and humidity affect the curing cycle. In summer, the ambient temperature is high, and the heating rate can be reduced because the concrete starts at a higher temperature. In winter, the ambient temperature is low, and the heating rate must be reduced to avoid thermal shock. The table below shows the recommended cycle adjustments for different seasons.

In our factory, the Curing Kiln controller has a seasonal adjustment feature. The operator selects the season, and the controller automatically adjusts the heating rate, holding time, and cooling rate. This reduces the risk of operator error and ensures consistent quality throughout the year. QUANGONG MACHINERY CO.,LTD provides training for the operator on how to use this feature.

Summary for Production Supervisors and Quality Managers

Cracking in concrete products during curing is caused by thermal stress. The stress is created by the temperature difference between the surface and the core of the product. The stress can be controlled by managing the heating rate, the holding temperature, and the cooling rate. A heating rate of 20°C per hour, a holding temperature of 55°C to 65°C, and a cooling rate of 15°C per hour are safe for most products. The cycle should be adjusted for the season, the product thickness, and the cement type. By controlling these parameters, manufacturers can reduce cracking to less than 1 percent. QUANGONG MACHINERY CO.,LTD has been manufacturing Curing Kiln systems for over 20 years and provides full process support for our customers.

QUANGONG MACHINERY CO.,LTD manufactures Curing Kiln systems with PID temperature control, variable frequency circulation fans, and seasonal adjustment features. We provide curing cycle recommendations and operator training for all of our equipment.
