What Are the Common Applications for a 2NT Single Spring Mechanical Seal
2026-09-30
When it comes to reliable sealing performance in rotating equipment, the 2NT Single Spring Mechanical Seal has become a preferred choice across many industries. Manufactured with precision by Qixing, this seal design offers a balanced combination of simplicity, durability, and cost-effectiveness. Understanding where and why this seal is used can help engineers, maintenance teams, and procurement specialists make smarter decisions. This article explores the most common applications of the 2NT Single Spring Mechanical Seal, supported by practical insights and technical comparisons.
Why the 2NT Single Spring Mechanical Seal Stands Out

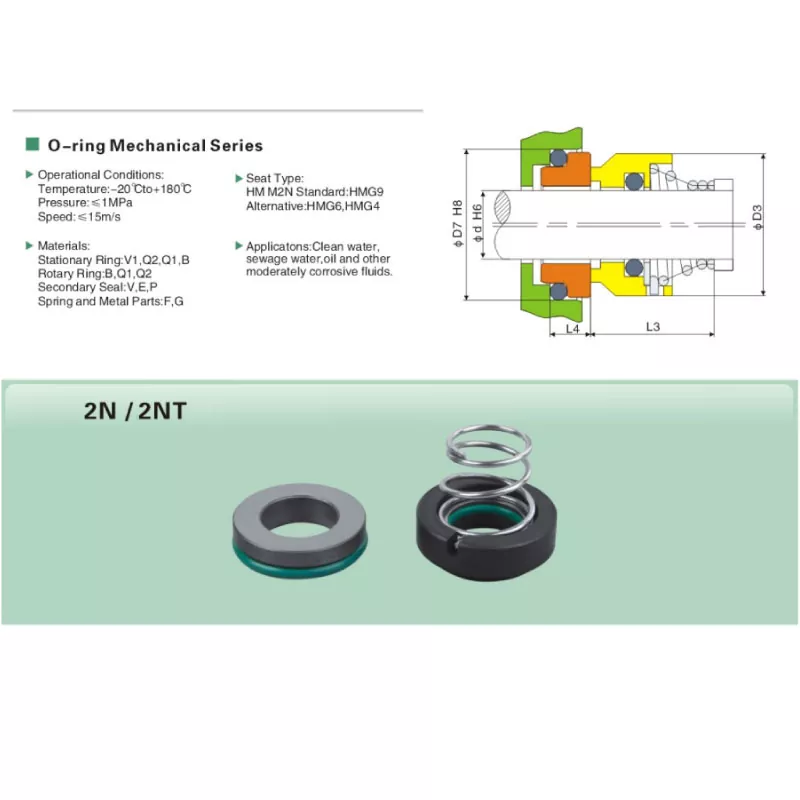

The 2NT Single Spring Mechanical Seal features a single-coil spring design that provides uniform face loading and reliable performance in moderate-duty applications. Compared to multi-spring seals, it reduces clogging risks and simplifies installation. Qixing engineers this seal to meet stringent quality standards, making it suitable for a wide range of industrial environments.
Common Applications of the 2NT Single Spring Mechanical Seal
Below is a detailed breakdown of the industries and equipment types where the 2NT Single Spring Mechanical Seal is most frequently deployed:
| Industry | Equipment Type | Why the 2NT Single Spring Mechanical Seal Fits |
|---|---|---|
| Water Treatment | Centrifugal pumps | Resists mild corrosion and handles varying pressures |
| Chemical Processing | Mixers, agitators | Single spring reduces clogging from viscous fluids |
| Food & Beverage | Sanitary pumps | Easy to clean and compatible with FDA-approved materials |
| HVAC Systems | Circulating pumps | Reliable at moderate temperatures and speeds |
| Marine | Bilge and cooling pumps | Withstands moisture and vibration |
| Agricultural | Irrigation pumps | Durable in dusty and outdoor conditions |
| Power Generation | Cooling water pumps | Stable performance under continuous operation |
| Pharmaceutical | Process pumps | Clean design minimizes contamination risk |
| Mining | Slurry pumps | Tolerates abrasive particles when properly specified |
| Oil & Gas | Light-duty transfer pumps | Effective in non-hazardous, moderate-pressure lines |
Qixing supplies the 2NT Single Spring Mechanical Seal in multiple material combinations, including carbon/ceramic, silicon carbide, and tungsten carbide, to match specific application needs.
Key Selection Factors for Different Applications
Choosing the right 2NT Single Spring Mechanical Seal depends on several variables. Use the table below as a quick reference:
| Factor | Consideration |
|---|---|
| Fluid Type | Corrosive, viscous, or abrasive fluids require specific face materials |
| Temperature | Standard seals handle up to 200°C; higher temperatures need special elastomers |
| Pressure | The 2NT Single Spring Mechanical Seal performs best up to 1.5 MPa |
| Speed | Suitable for shaft speeds up to 3,600 RPM |
| Shaft Size | Available in metric and imperial sizes from 10mm to 100mm |
Qixing provides technical support to help users select the optimal configuration for their unique operating conditions.
2NT Single Spring Mechanical Seal FAQ
Q1: What is the maximum pressure the 2NT Single Spring Mechanical Seal can handle?
A1: The 2NT Single Spring Mechanical Seal is typically rated for pressures up to 1.5 MPa (approximately 217 psi) when using standard materials. For higher pressures, Qixing recommends a balanced seal design or a reinforced spring configuration. Exceeding the rated pressure can cause face separation, excessive leakage, or premature failure. Always consult the product datasheet and verify the pressure rating against your system's maximum operating conditions.
Q2: Can the 2NT Single Spring Mechanical Seal be used with abrasive fluids?
A2: Yes, but material selection is critical. For abrasive fluids, Qixing recommends upgrading the seal faces to silicon carbide or tungsten carbide, which offer superior hardness and wear resistance. The single spring design also helps prevent particle accumulation compared to multi-spring alternatives. However, for heavily abrasive slurries, a double seal or flush arrangement may be necessary. Regular monitoring and maintenance are essential to extend seal life in abrasive service.
Q3: How do I install the 2NT Single Spring Mechanical Seal correctly?
A3: Proper installation begins with inspecting the shaft and housing for damage, then cleaning all mating surfaces. Lubricate the elastomer with a compatible lubricant, slide the seal onto the shaft without damaging the spring, and ensure the stationary seat is fully seated in the housing. Tighten the set screws evenly and verify the seal faces are clean and free of contaminants. Qixing provides detailed installation manuals and offers on-site support for complex assemblies. Incorrect installation is a leading cause of premature seal failure.
Conclusion
The 2NT Single Spring Mechanical Seal from Qixing delivers dependable performance across water treatment, chemical processing, food and beverage, HVAC, marine, and many other demanding industries. Its simple yet robust design reduces maintenance costs and downtime when correctly specified and installed. For technical guidance, custom material options, or bulk pricing, contact us today to speak with a Qixing seal specialist and request a quote tailored to your application.
