What Are the Key Thermal Management Challenges for High Power Window-Capped Laser Diodes and How to Solve Them
2026-06-03

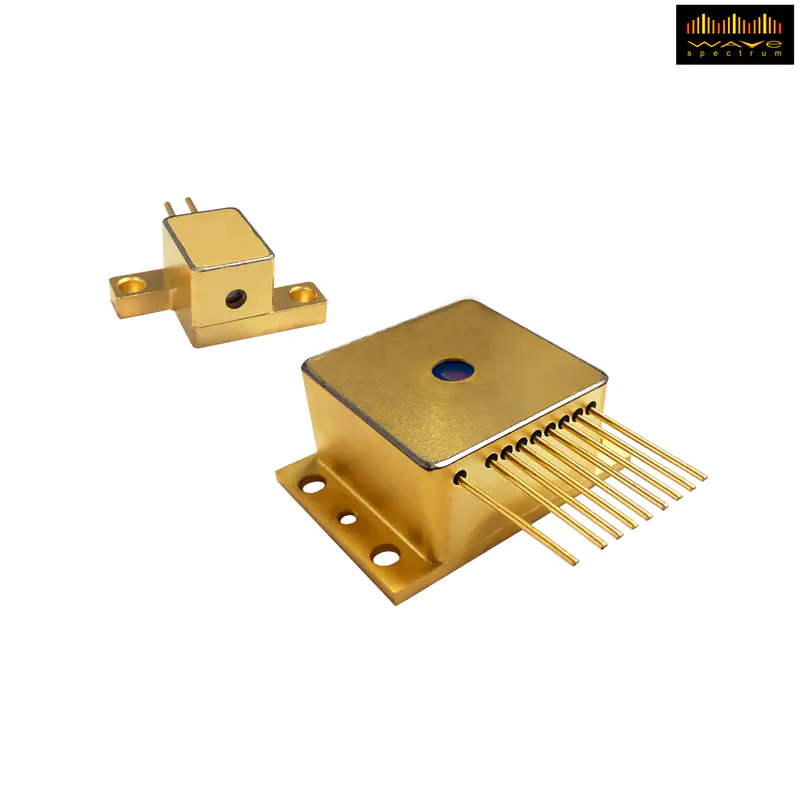

For engineers working with a Window Package High Power Laser Diode, thermal management is the single most critical factor separating reliable performance from premature failure. At Wavespectrum, we have observed that poor heat dissipation directly degrades output power, shifts wavelength, and reduces lifetime.
Core Thermal Challenges
| Challenge | Impact on Window Package High Power Laser Diode |
|---|---|
| Junction Overheating | Reduces slope efficiency and causes thermal rollover |
| Window Contamination | Evaporated materials condense on the window, increasing absorption |
| Package Thermal Resistance | Limits maximum CW operating current |
| Non-Uniform Cooling | Creates hot spots, leading to COD (Catastrophic Optical Damage) |
Practical Solutions
To solve these issues, Wavespectrum recommends the following hierarchy of solutions:
-
Use a thermoelectric cooler (TEC) directly under the submount for active temperature control.
-
Apply indium or phase-change thermal interface materials between the package and external heatsink.
-
Operate the device in pulsed mode rather than CW when average heat load exceeds package limits.
-
Select hard-solder bonded windows instead of epoxy-based seals to prevent outgassing.
Frequently Asked Questions
Q1: What is the maximum safe case temperature for a Window Package High Power Laser Diode?
A: For most Window Package High Power Laser Diode devices rated above 5W, the maximum case temperature is 25–35°C for rated output. Wavespectrum specifies 30°C as the nominal reference. Operating at 50°C typically reduces lifetime by 70–80% due to accelerated junction degradation and window contamination. Always derate current by 1.5–2.0% per °C above 30°C.
Q2: Why does my Window Package High Power Laser Diode show a gradual power drop even with a good heatsink?
A: Gradual power drop — usually 5–15% over 500 hours — is often caused by window absorption. The window package, while hermetic, can accumulate molecular contaminants from the internal cavity. These contaminants absorb laser light, heat up, and further accelerate deposition. The solution is selecting Wavespectrum devices with anti-reflection coated windows and vacuum-baked internal components, which reduce this drift to under 1% per 1000 hours.
Q3: Can I operate a Window Package High Power Laser Diode without active TEC control?
A: Only at low duty cycles (e.g., <5% pulsed operation). For CW or high-duty-cycle applications, the answer is no. Without TEC control, the junction temperature of a Window Package High Power Laser Diode rises continuously, causing thermal runaway. Wavespectrum tests show that a 10W window laser diode without TEC reaches 65°C junction temperature in just 15 seconds of CW operation, leading to complete failure within minutes.
Contact Us
Optimizing your Window Package High Power Laser Diode thermal design requires precise characterization and validated solutions. Wavespectrum provides thermal simulation support, custom window packages with integrated TECs, and failure analysis services. Contact our engineering team today to discuss your specific power and packaging requirements.
