What Are the Main Cost Drivers in Proton Exchange Membrane Production for Automotive Applications

The global push for zero-emission mobility has placed the Proton Exchange Membrane (PEM) at the heart of automotive fuel cell development. While the technology is proven, the production economics remain a critical barrier to mass adoption. For companies like Vet Energy, which specialize in industrial-scale energy solutions, understanding these cost drivers is not optional—it is the foundation of competitive strategy. This blog dissects the material, manufacturing, and system-level factors that determine the final price of a PEM stack, while offering actionable insights for cost reduction.

1. Material Costs: The Platinum and PFAS Dilemma

Over 60% of a PEM stack’s bill of materials comes from two categories: catalyst-coated membranes and gas diffusion layers. The single largest line item is platinum group metals (PGMs) used in the cathode catalyst. At current loading levels (0.2–0.4 mg/cm²), a 100 kW automotive stack requires approximately 20–30 grams of platinum. At volatile market prices, this alone accounts for $1,500–$2,500 per stack.

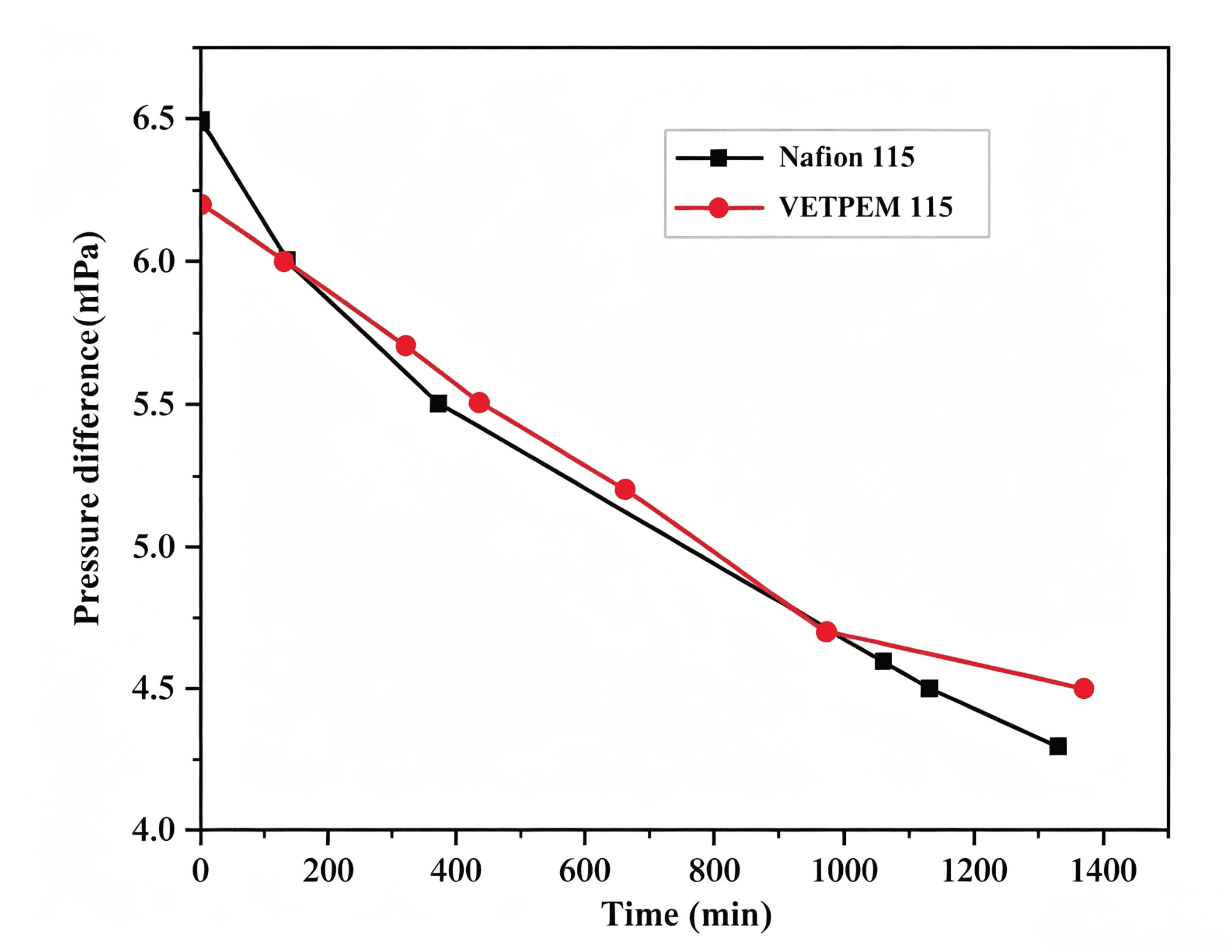

Simultaneously, the perfluorosulfonic acid (PFSA) membrane—typically Nafion™—relies on costly fluoropolymer synthesis. Supply chain constraints for tetrafluoroethylene (TFE) monomers further inflate costs. Vet Energy has observed that alternative hydrocarbon-based membranes, while cheaper, sacrifice durability under high-temperature operation, forcing engineers to balance trade-offs.

2. Manufacturing Process: From Coating to CCM Assembly

The transition from lab-scale casting to high-speed roll-to-roll (R2R) coating introduces four discrete cost clusters:

The remaining 23% covers logistics, packaging, and yield loss—currently averaging 8–12% for new entrants.

3. Scale and Yield: The Hidden Multipliers

Yield is the silent killer of PEM economics. A 5% drop in production yield can erase all economies of scale. For automotive-grade membranes, defect density (pinholes, thickness variation > ±5%) forces 100% inspection. Vet Energy recommends automated optical inspection (AOI) combined with X-ray fluorescence (XRF) for real-time platinum loading verification—a capital investment that reduces scrap by up to 40% within 18 months.

At production volumes below 50,000 stacks per year, fixed equipment depreciation dominates unit cost. At 500,000 stacks annually, raw material purchasing power becomes the primary differentiator.

4. Durability Validation: The Non-Negotiable Overhead

Automotive OEMs require 5,000–8,000 hours of accelerated stress testing (AST) per membrane variant. This includes:

• Open-circuit voltage (OCV) hold tests (chemical degradation)

• Relative humidity (RH) cycling (mechanical swelling)

• Start-stop cycling (carbon corrosion)

Each validation campaign costs $200,000–$500,000 and delays time-to-market by 6–9 months. These costs are passed directly to the stack price, adding approximately $120–$180 per unit in amortized R&D.

5. Comparative Cost Breakdown (per kW)

Source: Adapted from DOE 2025 targets. A 80 kW stack currently costs ~$10,000; the industry aims for $5,300 by 2030.

Proton Exchange Membrane FAQ – Common Questions from Automotive Engineers

Q1: Why does the Proton Exchange Membrane cost more than the entire balance of plant (BoP) in some designs?

A1: The Proton Exchange Membrane itself is not the single most expensive component—the catalyst layer coated onto it is. However, when you combine the membrane substrate (PFSA), the ionomer dispersion, and the reinforced ePTFE backing, the membrane assembly accounts for 28–35% of stack cost. In contrast, the BoP (radiator, pump, humidifier, controller) typically makes up 25–30%. The disparity arises because the membrane requires ultra-high purity (metal impurities < 5 ppm) and defect-free casting over widths > 400 mm—a process that uses solvent-intensive wet casting with recovery rates below 85%. Each square meter of finished membrane embeds $180–220 in raw material and energy. BoP components, by contrast, leverage mature automotive supply chains with established cost curves.

Q2: Can replacing platinum with iron-based catalysts significantly reduce Proton Exchange Membrane production costs?

A2: Yes, but with substantial caveats. Iron-nitrogen-carbon (Fe-N-C) catalysts have demonstrated rotating disk electrode (RDE) activities approaching that of platinum in acidic media. However, when integrated into a real Proton Exchange Membrane fuel cell operating at 0.6 V, Fe-based cathodes suffer from rapid demetallation—iron ions leach and migrate into the membrane, accelerating peroxide radical formation. This reduces membrane lifetime from 5,000 hours to under 1,500 hours under automotive drive cycles. From a total-cost-of-ownership (TCO) perspective, replacing platinum with iron would lower catalyst cost from $48/kW to ~$6/kW, but would require replacing the membrane every 2 years instead of 6 years. That exchange labor and downtime adds $200–$400 annually per vehicle—eliminating any net gain. Vet Energy advises focusing on ultra-low platinum loading (0.1 mg/cm²) with advanced nanostructured thin-film (NSTF) catalysts as the pragmatic near-term solution.

Q3: How much does humidity control during manufacturing affect the final Proton Exchange Membrane cost?

A3: Humidity is a first-order cost driver that is frequently underestimated. The Proton Exchange Membrane swells by 15–22% in-plane when transitioning from 30% RH to 90% RH. During R2R casting, if ambient dew point fluctuates by more than ±2°C, the membrane’s ionic exchange capacity (IEC) gradient becomes non-uniform, causing localized hot spots during cell operation. To maintain ±0.5% thickness tolerance, manufacturers must invest in closed-loop environmental chambers with desiccant dryers and ultrasonic humidifiers—a capital cost of roughly $2.5 million per production line. Energy consumption for conditioning accounts for 9–11% of variable operating expenses. Furthermore, post-casting annealing at 160°C for 2 hours requires nitrogen-purged ovens to prevent oxidation; nitrogen consumption alone adds $0.80 per membrane square meter. Vet Energy has successfully piloted a dry-casting technique using solvent-free extrusion that cuts humidity-related costs by 62%, though this method currently limits membrane thickness to > 25 µm, which is not yet suitable for high-power-density automotive stacks (target < 15 µm).

Strategic Roadmap for Cost Reduction

To achieve the 2030 target of $66/kW, the industry must concurrently pursue:

• PGM recycling from end-of-life stacks (recovery rate > 95%)

• Non-fluorinated membranes with polyaromatic backbones

• Direct membrane deposition onto bipolar plates (eliminating sub-assembly steps)

Vet Energy is actively collaborating with tier-1 suppliers to industrialize dry-spray catalyst deposition, which reduces platinum usage by 18% without sacrificing activity.

Conclusion

The cost of a Proton Exchange Membrane for automotive use is not a single number—it is a complex function of material science, process engineering, quality control, and scale. While platinum and PFAS dominate headlines, the real leverage lies in yield improvement, humidity management, and validation streamlining. Companies that master these variables will capture the next decade of fuel cell growth.

Ready to optimize your PEM production economics?
Contact Vet Energy today for a tailored cost-modeling workshop. Our engineering team provides on-site process audits, membrane lifetime projections, and custom catalyst ink formulations. Reach out via our website or email us directly—let’s drive down costs together.
