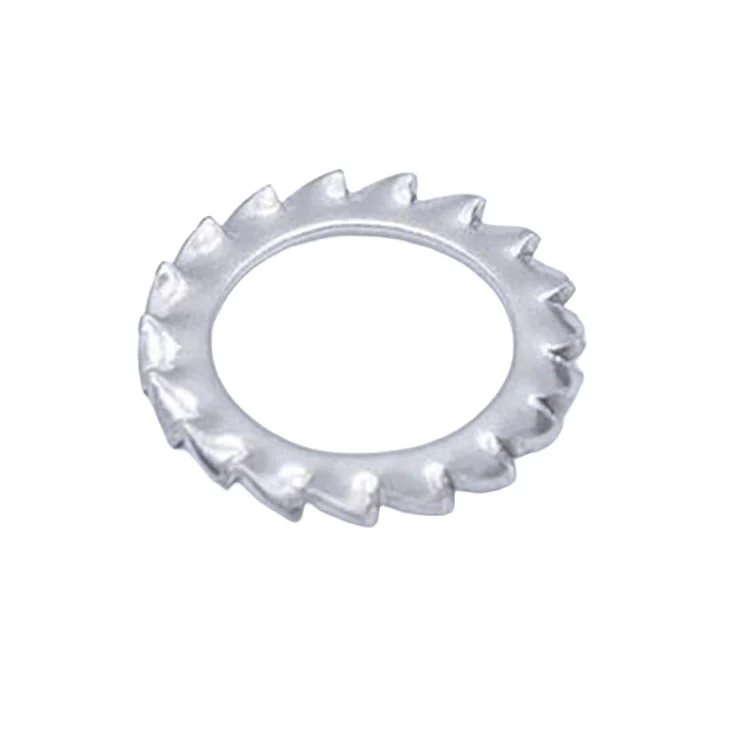

What Are the Typical Applications of DIN 6798A External Serrated Lock Washers
2026-10-08
DIN 6798A External Serrated Lock Washers are widely specified across industries where vibration resistance and reliable fastening are critical. As a leading manufacturer, Zhenhua produces these washers to exact dimensional and material standards, serving automotive, electrical, and heavy machinery customers worldwide. Understanding where these components perform best helps engineers select the right hardware for each assembly.
What Makes DIN 6798A External Serrated Lock Washers Effective
The external serrations on these washers bite into the mating surface when the bolt is tightened. This creates a mechanical interlock that resists rotational movement caused by vibration. Compared with plain washers, DIN 6798A External Serrated Lock Washers offer superior holding performance in dynamic joints.
Key performance characteristics include:
-
High friction coefficient for improved resistance to loosening
-
External tooth design that engages the outer perimeter of the joint
-
Availability in spring steel and stainless steel grades
-
Compliance with DIN 6798A dimensional requirements
Typical Applications by Industry
DIN 6798A External Serrated Lock Washers appear in a broad range of assemblies. The table below summarizes the most common applications and the reasons these washers are chosen.
| Industry | Typical Application | Why DIN 6798A Is Used |
|---|---|---|
| Automotive | Engine mounts, brackets, chassis fasteners | Withstands continuous vibration |
| Electrical | Control panels, terminal blocks, grounding points | Ensures electrical continuity and grip |
| Machinery | Gearboxes, pumps, conveyors | Prevents bolt loosening under load |
| Construction | Steel frames, handrails, structural joints | Resists dynamic stress and torque loss |
| Appliances | Motors, compressors, housings | Cost-effective vibration control |
| Aerospace Ground Equipment | Support frames, service carts | Reliable locking in repeated use |
Zhenhua supplies DIN 6798A External Serrated Lock Washers in M3 through M20 sizes, with zinc-plated, plain, and stainless steel finishes to match specific environmental requirements.
Selection Considerations
Engineers should evaluate several factors before specifying these washers:
-
Surface hardness of the mating part, since serrations must penetrate effectively
-
Corrosion exposure, which determines the appropriate coating or material
-
Torque requirements, as excessive tightening can flatten the serrations
-
Reusability, since repeated installation reduces locking effectiveness
For critical joints, Zhenhua recommends pairing DIN 6798A External Serrated Lock Washers with properly torqued fasteners and verifying performance through testing.
DIN 6798A External Serrated Lock Washers FAQ
What is the difference between DIN 6798A and DIN 6798J?
DIN 6798A features external serrations that grip the outside edge of the joint, while DIN 6798J has internal serrations that engage around the bolt head; external types suit larger contact surfaces and internal types fit tighter recesses.
Are DIN 6798A External Serrated Lock Washers reusable?
They can be reused in low-criticality applications, but the serrations flatten after initial tightening, so replacement is recommended for joints requiring consistent vibration resistance.
What materials are available for DIN 6798A External Serrated Lock Washers?
Common options include spring steel with zinc plating, plain carbon steel, and stainless steel grades such as A2 and A4, with Zhenhua offering customized finishes for demanding environments.
