What Cooling Coverage Can You Expect from a 10HP Portable Air-Cooled Box Chiller

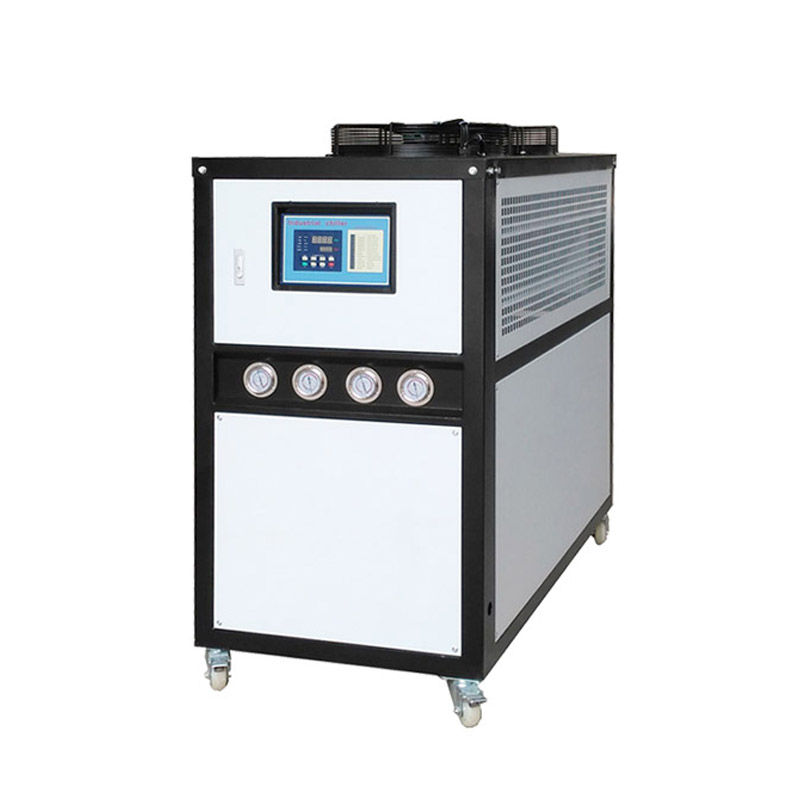

When evaluating industrial cooling solutions, facility managers often ask about physical coverage rather than just tonnage or BTU ratings. A 10HP Portable Air-cooled Box Chiller from Jiusheng delivers approximately 30,000–35,000 BTU/hr (8.8–10.2 kW) of cooling capacity under standard conditions (ambient 35°C, leaving water temperature 7°C). But square footage depends on heat load, insulation, equipment density, and airflow—not a fixed number. This guide breaks down real-world coverage calculations, application-specific sizing, and maintenance factors so you can match the 10HP Portable Air-cooled Box Chiller to your actual space requirements.

Heat Load vs. Floor Area: Why Square Footage Misleads

Cooling capacity covers heat gain, not floor dimensions. A 100 m² warehouse with heavy machinery generates 4–5× more heat than the same area used for storage. Jiusheng engineers recommend starting with a heat-load audit rather than relying on room size alone. Below is the typical cooling range for a 10HP Portable Air-cooled Box Chiller across common applications:

Conditions: ceiling height ≤3.5 m, minimal direct solar gain, average insulation. Actual performance varies with fresh-air intake and equipment duty cycles.

Key Variables That Expand or Shrink Effective Coverage

A 10HP Portable Air-cooled Box Chiller performs predictably when these five factors are controlled:

• Ambient Temperature – Rated at 35°C ambient; every +5°C reduces capacity by 6–8%. At 45°C, coverage shrinks by ~20%.

• Setpoint Temperature – Chilling water to 7°C vs. 12°C changes load; higher setpoints increase sensible cooling range.

• Airflow Distribution – Short-circuiting (hot exhaust re-entering intake) cuts effective coverage by up to 30%. Position the Jiusheng unit with at least 1.5 m clearance on all intake sides.

• Insulation Quality – Poor roof/wall insulation doubles the external heat gain, effectively halving the covered area.

• Internal Heat Sources – Every 5 kW of operational machinery adds ~4.3 kW of cooling demand—equivalent to reducing coverage by 12–15 m².

Step-by-Step Sizing Formula for Your Facility

To calculate whether a 10HP Portable Air-cooled Box Chiller fits your space, use this three-step method:

1. Total Heat Gain (kW) = (Area × U‑value × ΔT) + (Equipment kW × 0.95) + (Lighting kW × 1.0) + (Occupants × 0.12 kW each)

2. Required Capacity = Total Heat Gain × 1.15 (safety margin for defrost and aged coils)

3. Compare with the chiller’s net capacity at your local average ambient (obtain performance curves from Jiusheng technical datasheets)

Example: A 55 m² workshop with 30 kW of press equipment, 3 kW lighting, and 4 workers has a total gain of ~38.5 kW—exceeding the 10.2 kW max. In this case, one unit covers only process cooling for specific machines, not the entire room.

Practical Coverage by Equipment Type (Not Floor Area)

Many buyers use a 10HP Portable Air-cooled Box Chiller to cool specific production lines rather than whole rooms. Jiusheng provides these real-world benchmarks from installed sites:

10HP Portable Air-cooled Box Chiller – FAQ

Q: Can I use one 10HP Portable Air-cooled Box Chiller to cool both a process machine and a small warehouse simultaneously?

A: Yes, but only if the combined heat load stays under the net capacity at your site’s ambient conditions. For example, at 35°C with 7°C outlet water, the unit has ~10 kW of usable cooling. A single injection molder draws 6–7 kW, leaving only 3–4 kW for space cooling—enough for a 30–40 m² insulated control room, but not a full warehouse. Jiusheng recommends dedicated circuits for process vs. space cooling to avoid temperature conflicts. Use a buffer tank (200–300 L) to stabilise simultaneous draws.

Q: How much does ceiling height affect the effective coverage of this chiller?

A: Significantly. All coverage estimates assume 3.0–3.5 m ceiling height. For every additional 1 m of height, the air volume increases by roughly 30%, but the chiller’s airflow rate (typically 8,000–12,000 CFM) stays constant. This means stratification occurs—cool air pools at floor level while warm air lingers above. To maintain uniform temperature, install destratification fans or lower the return-air intake. In a 6 m high bay, the effective floor coverage drops by 35–40% unless you add high-volume low-speed (HVLS) fans. Jiusheng can supply remote temperature sensors to monitor return-air temperature at multiple heights for precise control.

Q: What maintenance reduces coverage loss over time?

A: Three maintenance actions directly preserve coverage: (1) Clean the condenser coil monthly—dust buildup reduces heat rejection by 5–10% per millimeter of fouling, directly cutting capacity. (2) Replace the water filter every 3 months; a clogged strainer reduces flow, causing evaporator freeze-up and capacity loss of up to 15%. (3) Check refrigerant charge annually—even a 5% undercharge lowers evaporator pressure and drops cooling output by 8–12%. Jiusheng units include a digital display with a maintenance reminder function. Proactive coil cleaning alone can recover 2–3 m² of effective coverage per cleaning cycle in dusty environments.

Final Takeaway – Match the Tool to Your True Load

The 10HP Portable Air-cooled Box Chiller is a versatile workhorse, but its effective cooling area ranges from 15 m² (high-heat industrial) to over 170 m² (low-heat storage). The correct answer lies in your specific kW load, ambient profile, and airflow layout—not in a generic square-foot claim. Jiusheng provides free load-calculation worksheets and site-survey checklists to eliminate guesswork.

Ready to size your application accurately? Contact Jiusheng technical sales today with your equipment list, floor plan, and average summer temperature—receive a custom coverage report within 24 hours. Email us to discuss which 10HP Portable Air-cooled Box Chiller configuration (standard, high-ambient, or low-noise) fits your production schedule. Our engineers also offer on-site airflow diagnosis for existing installations. Let’s keep your process cool—and your capacity certain.
