What Determines the Purity of Silicon Carbide Coating for Semiconductor Applications?

2026-10-26


A process engineer at a semiconductor fab reviews two certificates of analysis for Silicon Carbide Coating samples from two suppliers. Both certificates state a purity of 99.9995 percent, or 6N. The engineer sends both samples for independent glow discharge mass spectrometry. The first sample confirms the certificate. The second sample shows iron at 8 ppm and nickel at 3 ppm, which is ten times higher than the certificate claims. The engineer asks the second supplier for an explanation. The supplier admits that the certificate was based on the precursor gas analysis, not on the deposited coating. The coating had picked up contamination from the reactor wall and the handling process. This example shows that the purity of a silicon carbide coating is not a single number. It is the result of a chain of controls, from the precursor to the deposited film. This guide explains what determines that purity.

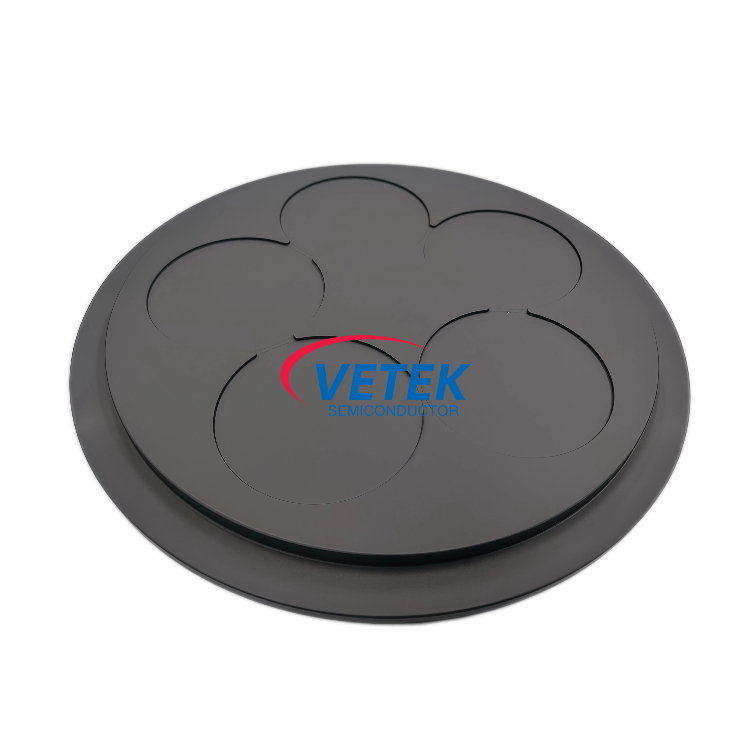

CVD SiC Coated Graphite Susceptor for Wafer Carrier


1. Why Does the Starting Powder Purity Set the Ceiling for the Final Coating?

A Silicon Carbide Coating deposited by chemical vapor deposition is built from precursor gases. The most common precursors are methyltrichlorosilane and silane plus a hydrocarbon. These precursors are produced from metallurgical-grade silicon and petroleum coke. The metallurgical process leaves behind trace metals such as iron, aluminum, calcium, and titanium. The precursor supplier refines the gas by distillation, but the refinement has a limit. The purity of the precursor gas sets the maximum purity that the deposited coating can achieve. If the precursor contains 1 ppm of iron, the coating cannot contain less than 1 ppm of iron, even under ideal deposition conditions. In our factory, we source precursor gases that are certified to 6N and we verify each batch with gas chromatography mass spectrometry before it enters the reactor. WuYi TianYao New Material Tech.Co.,Ltd. has been producing semiconductor-grade coatings for over 10 years.

The substrate also contributes to the final purity. A graphite substrate contains ash and metallic impurities. At the deposition temperature of 1,200°C to 1,400°C, these impurities can diffuse from the substrate into the coating. The diffusion is driven by the concentration gradient and is accelerated by the porosity of the graphite. To block this diffusion, we use a high-purity graphite substrate with an ash content below 10 ppm and a low open porosity. We also deposit a thin diffusion barrier layer before the main Silicon Carbide Coating. Our factory tests the interface between the substrate and the coating using secondary ion mass spectrometry to confirm that no metal has migrated into the coating.


2. Which Deposition Parameters Control Impurity Incorporation During Growth?

The deposition temperature, the chamber pressure, and the gas flow ratio all affect the incorporation of impurities. At a low deposition temperature, the precursor does not decompose completely. Carbon and hydrocarbon fragments remain in the coating, which reduces the stoichiometry and traps impurities. At a high deposition temperature, the deposition rate increases, but the thermal stress on the substrate and the coating also increases, which can cause cracking and delamination. The chamber pressure affects the residence time of the gas in the reactor. A long residence time allows the gas to react with the reactor wall and pick up contaminants. The gas flow ratio of silicon to carbon affects the stoichiometry of the coating. A silicon-rich coating has a different impurity profile than a stoichiometric coating. The table below shows the effect of deposition parameters on coating purity.

Parameter Typical range Effect on impurity level Effect on deposition rate
Deposition temperature 1,200 – 1,400°C Higher temperature reduces carbon trapping but increases substrate diffusion Increases with temperature
Chamber pressure 5 – 50 kPa Lower pressure reduces wall reaction and contamination Decreases with lower pressure
Si/C gas ratio 1.0 – 1.2 Stoichiometric ratio minimizes free carbon and impurity traps Peaks near stoichiometric ratio
Carrier gas flow 10 – 50 slm Higher flow reduces residence time and wall contamination Dilutes the precursor

In our factory, we use a central composite design to optimize the deposition parameters for each coating specification. We measure the impurity level with glow discharge mass spectrometry and the stoichiometry with X-ray photoelectron spectroscopy. The optimization balances purity, deposition rate, and coating stress. WuYi TianYao New Material Tech.Co.,Ltd. maintains a process window for each product that ensures the purity remains within the specification across the production batch.


3. How Does Reactor Design and Handling Prevent Post-Deposition Contamination?

The reactor is the environment where the coating is formed. If the reactor wall is coated with previous deposits, those deposits can flake off and land on the substrate. The flakes are not only particles; they also carry the impurities from the previous process. The reactor must be cleaned between runs, and the cleaning method must not introduce new contaminants. We use a fluorine-based dry clean that removes the deposits without leaving metallic residue. We also monitor the particle count in the reactor exhaust and the metal concentration on the reactor wall. The table below shows the contamination sources and the control measures.

Contamination source Typical impurity Control measure Verification method
Reactor wall deposits Fe, Ni, Cr Dry clean between runs; wall wipe test ICP-MS of wipe sample
Handling and packaging Na, K, Ca Cleanroom gloves; double bagging Surface ion chromatography
Gas delivery system Fe, Cu Electropolished stainless steel lines; particle filters Gas purity certificate
Substrate handling Al, Mg Vacuum transfer; no plastic contact Surface GDMS

Coating engineer's note: The post-deposition handling is often overlooked. A Silicon Carbide Coating that is perfectly pure when it leaves the reactor can become contaminated when it is removed, packaged, and shipped. We handle all semiconductor-grade coatings in a Class 100 cleanroom. The parts are vacuum-packed in cleanroom-grade film and shipped in rigid containers. WuYi TianYao New Material Tech.Co.,Ltd. provides a surface purity certificate with each shipment that is based on the actual part, not on a generic process certificate.


4. Why Does Purity Verification Require More Than a Single Certificate of Analysis?

A single certificate of analysis reports the purity of a sample, but it does not describe how the sample was taken or whether it represents the entire part. The purity of a Silicon Carbide Coating can vary with depth. The surface may have a different impurity profile than the interface with the substrate. The certificate should state the sampling location, the analytical method, and the detection limit. The most common methods for coating purity are glow discharge mass spectrometry, secondary ion mass spectrometry, and inductively coupled plasma mass spectrometry. Each method has a different sensitivity and a different sampling depth. The table below compares the methods.

Method Sampling depth Detection limit Best for
GDMS Bulk (several microns) ppb to ppm Bulk purity and trace metals
SIMS Depth profiling (nanometers) ppb Interface and depth distribution
ICP-MS Digested sample (bulk) ppt to ppb High-sensitivity trace metals
XPS Surface (1 – 10 nm) 0.1 atomic percent Surface chemistry and stoichiometry

In our factory, we use a combination of GDMS and SIMS for every production batch. GDMS provides the bulk purity, and SIMS provides the depth profile at the interface. We retain a sample from each batch for 5 years so that the purity can be re-verified if a customer request arises. WuYi TianYao New Material Tech.Co.,Ltd. provides the full analytical report with each shipment, including the sampling location and the method used.


5. How Should Semiconductor Engineers Specify Purity Requirements for a Coating?

The specification should distinguish three different purity metrics. The bulk purity is the average impurity concentration in the coating. The surface purity is the impurity concentration in the top few nanometers, which is the region that contacts the process gas or the wafer. The extractable ion purity is the concentration of ions that can be leached from the coating by the process chemistry. Each metric has a different limit depending on the application. A power device susceptor may tolerate 10 ppm of iron in the bulk but require less than 1 ppm on the surface. An etch chamber component may require less than 0.1 ppm of extractable copper. The specification should state the metric, the limit, the test method, and the sampling plan. In our factory, we work with the customer's process engineer to define the specification before the first production run.

We also recommend that the specification include a batch acceptance criterion and a re-verification interval. A coating that passes the initial verification may degrade during storage or handling. The re-verification interval should be based on the storage environment and the criticality of the application. WuYi TianYao New Material Tech.Co.,Ltd. provides a specification template that covers the three purity metrics and the verification plan. Our technical team can review the customer's specification and recommend the appropriate limits for the specific semiconductor application.


Frequently Asked Questions About Silicon Carbide Coating Purity

Question 1: Does a 6N purity rating mean that every location in the coating has impurity levels below the detection limit?
Answer: No. A 6N purity rating is an average value, usually based on a bulk analysis method such as GDMS. The actual impurity concentration can vary with depth. The surface may have a higher concentration of oxygen and carbon than the bulk. The interface with the substrate may have a higher concentration of metals that have diffused from the substrate. A Silicon Carbide Coating with a 6N bulk rating can still have localized regions with impurity levels above the detection limit. The specification should therefore include a depth profile or a surface-specific limit if the application is sensitive to surface contamination. In our factory, we provide both the bulk rating and the depth profile so that the customer can evaluate the coating for the specific application.
Question 2: Can impurities from the graphite substrate diffuse into the silicon carbide coating at high temperature?
Answer: Yes. At the deposition temperature of 1,200°C to 1,400°C, metallic impurities in the graphite substrate can diffuse into the Silicon Carbide Coating. The diffusion rate depends on the impurity, the substrate porosity, and the coating thickness. Iron and nickel are the most common diffusing species. To block the diffusion, we use a high-purity graphite substrate with a low ash content and a low open porosity. We also deposit a thin diffusion barrier layer before the main coating. The barrier layer is typically a dense SiC layer with a different microstructure. We verify the barrier performance with SIMS depth profiling after deposition. If the SIMS profile shows metal concentration above the specification at the interface, the batch is rejected.
Question 3: Does increasing the deposition temperature always improve the coating purity?
Answer: No. Increasing the deposition temperature improves the decomposition of the precursor, which reduces carbon trapping and improves the stoichiometry. However, above a certain temperature, the diffusion of impurities from the substrate increases faster than the improvement in stoichiometry. The net effect is a decrease in purity. The optimal temperature is the point where the precursor decomposition is complete but the substrate diffusion is still low. This optimum depends on the precursor chemistry, the substrate purity, and the coating thickness. In our factory, we determine the optimum temperature for each product through a design of experiments. We do not assume that a higher temperature is always better. The process window is defined by the purity specification, not by the maximum temperature that the reactor can reach.

Summary for Semiconductor Process Engineers

The purity of a Silicon Carbide Coating is determined by the precursor purity, the deposition parameters, the reactor environment, and the post-deposition handling. The precursor sets the ceiling, the deposition parameters control the incorporation, the reactor environment prevents contamination, and the verification method confirms the result. A single certificate of analysis is not sufficient. The specification should cover bulk purity, surface purity, and extractable ion purity, and it should state the sampling location and the test method. WuYi TianYao New Material Tech.Co.,Ltd. has been producing semiconductor-grade Silicon Carbide Coating for over 10 years and provides full analytical documentation for our products.

Need help specifying or verifying the purity of a silicon carbide coating for your semiconductor application? Contact WuYi TianYao New Material Tech.Co.,Ltd. for a free consultation. We will review your device requirements and recommend the appropriate purity specification and verification plan.
