What Exactly is an M19 Connector and Why is it Critical for Your Industrial Applications?

In the demanding world of industrial automation, robotics, and heavy machinery, every component must perform flawlessly under pressure. The humble connector plays a surprisingly pivotal role in ensuring system reliability. While many options exist, one type consistently stands out for challenging environments: the M19 Connector. But what makes it so special, and how do you select the right one for your project? With over two decades of experience in the connectivity sector, we at ShenZhen 2 IN 1 Technology Co., Ltd. are here to demystify this crucial component and showcase how our precision engineering can solve your connectivity challenges.

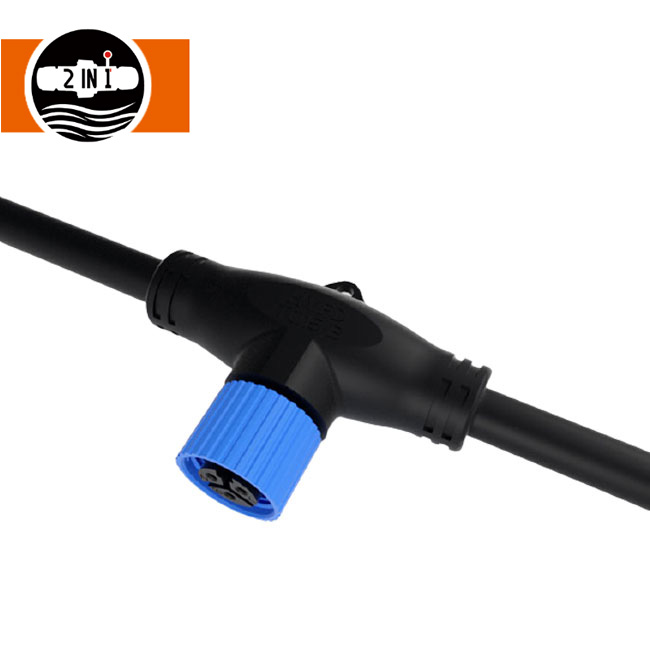

An M19 Connector is a compact, circular electrical connector renowned for its ruggedness. The "M" stands for "metric," and the "19" denotes an approximate 19mm diameter threaded locking mechanism. This design is specifically engineered for environments where factors like moisture, dust, vibration, and chemical exposure are constant threats. Unlike standard consumer connectors, the M19 is built to last, ensuring uninterrupted power and signal transmission in the most critical applications.

A Deep Dive into M19 Connector Parameters

Selecting a connector isn't just about the form factor; it's about the precise specifications that guarantee performance. Here is a detailed breakdown of the key parameters you need to evaluate, based on the high standards of our product line at ShenZhen 2 IN 1 Technology Co., Ltd.

Key Product Parameters at a Glance:

• Thread Size: M19 x 1.0 metric thread.

• IP Rating: Typically IP67 (dust-tight and protected against immersion in water up to 1m for 30 minutes) or IP68 (protected against long, deep immersions).

• IK Rating: IK08, indicating high protection against mechanical impact (5 Joule impact).

• Voltage Rating: Up to 250V.

• Current Rating: Typically 4A to 8A, depending on the pin configuration and wire gauge.

• Contact Materials: Gold-plated copper alloy for superior conductivity and corrosion resistance.

• Housing Material: High-grade PA (Nylon) or PBT, offering excellent resistance to oils, chemicals, and UV radiation.

• Operating Temperature Range: -25°C to +85°C (or even -40°C to +105°C for specialized variants).

• Number of Pins: Commonly available in 3-pin, 4-pin, 5-pin, and 6-pin configurations.

• Connection Technology: Options for crimping, solder, or screw termination for maximum installation flexibility.

To make an informed decision, comparing the M19 with other common form factors is essential. The table below illustrates why the M19 is often the ideal choice for space-constrained, rugged applications.

As you can see, the M19 connector occupies a unique sweet spot. It provides a significant step up in durability and environmental sealing from the ubiquitous M12, without the larger footprint of the M23. This makes it the undisputed champion for applications where every millimeter counts but performance cannot be compromised.

M19 Connector FAQ Common Questions

1. Question: What is the primary difference between an M19 connector with a 3-pin and a 4-pin configuration?

Answer: The pin count directly correlates with the function. A 3-pin M19 connector is typically used for power transmission—commonly for devices like a small DC motor, a compact solenoid valve, or a power-hungry sensor. The pins would be allocated for Positive, Negative, and optionally a Ground. A 4-pin M19 connector, however, is often used for combined power and signal applications. For instance, it can supply power to a device (e.g., a photoelectric sensor) while also carrying its output signal (e.g., PNP or NPN) back to the controller. Always check the device's datasheet to confirm the required pinout and function.

2. Question: Can M19 connectors be used in outdoor applications exposed to direct sunlight and rain?

Answer: Yes, absolutely. M19 connectors from reputable manufacturers like ShenZhen 2 IN 1 Technology Co., Ltd. are engineered for such challenges. The critical factor is the material and the IP rating. For outdoor use, you must select a variant with a housing made from UV-resistant material (such as specific PBT blends) to prevent degradation and cracking from sunlight. Furthermore, an IP67 or IP68 rating is non-negotiable, as it certifies that the connector is both dust-tight and protected against powerful water jets and temporary or prolonged immersion, making it perfectly suited for rain and other wet conditions.

3. Question: We have issues with cable twisting in our rotating machinery. Is there an M19 solution for this?

Answer: Yes, this is a common challenge in automation, particularly on robotic arms and rotating platforms, and it has a specialized solution. Standard M19 connectors are not designed for continuous 360-degree rotation. For such applications, you would require an M19 Slip Ring Connector. This specialized component allows for the transmission of power and electrical signals from a stationary structure to a rotating one, preventing tangled and twisted cables. This significantly enhances the lifespan of your cables and improves system reliability. We at ShenZhen 2 IN 1 Technology Co., Ltd. can provide guidance on integrating these specialized connectivity solutions.
