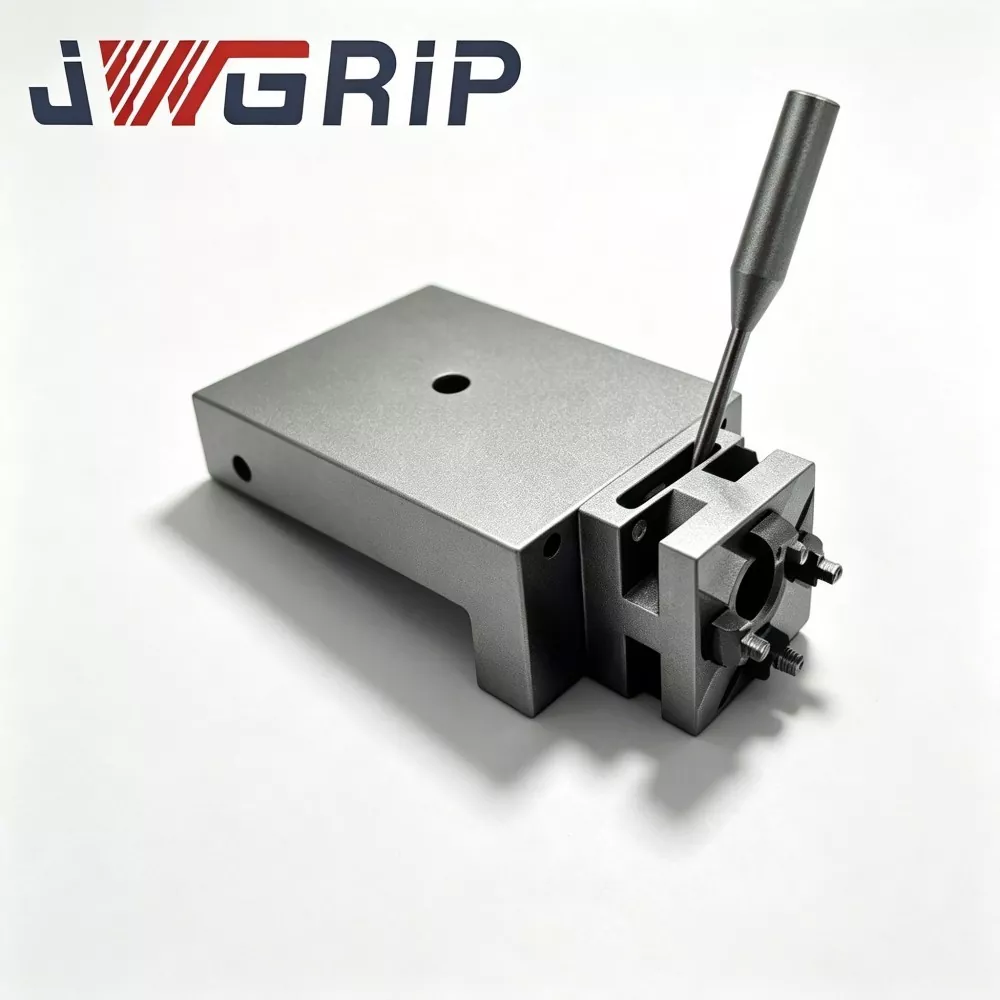

What maintenance routines are required to keep the UnoSet Adapter with RSM 50 Pallet Set for Wire EDM performing consistently
2026-10-15
For high-precision wire electrical discharge machining (Wire EDM) workshops, consistent positioning accuracy of workholding systems directly determines the final dimensional tolerance of precision parts, and JWGRIP as a trusted provider of high-end fixture solutions has long focused on optimizing the long-term performance of core tooling components. The UnoSet Adapter with RSM 50 Pallet Set for Wire EDM is widely recognized for its ultra-high repeat positioning accuracy, but its stable performance over years of heavy use relies entirely on standardized, regular upkeep. This article breaks down the structured maintenance framework that every precision machining facility can follow, to maximize the service life and accuracy retention of this critical fixture system.
Scheduled Maintenance Interval Standards
Based on 12 years of on-site application data from JWGRIP’s global user base, the table below defines the mandatory maintenance intervals for the UnoSet Adapter with RSM 50 Pallet Set for Wire EDM under normal 8-hour daily operation:
| Maintenance Item | Recommended Frequency | Allowed Maximum Interval | Acceptable Accuracy Deviation Threshold |
|---|---|---|---|
| Daily surface cleaning | After every shift | 24 hours | 0μm |
| Clamping mechanism lubrication | Every 7 days | 14 days | ≤ 0.001mm |
| Full accuracy calibration | Every 3 months | 6 months | ≤ 0.002mm |
| Sealing component inspection | Every 6 months | 12 months | No visible leakage or deformation |
| Full fixture disassembly and deep cleaning | Every 12 months | 18 months | ≤ 0.003mm |
Core Standard Maintenance Routines
- Post-shift residue removal: After completing each Wire EDM production batch, operators must use a soft nylon brush and isopropyl alcohol to thoroughly remove eroded metal debris and dielectric fluid residues from the positioning taper surface and clamping contact points of the UnoSet Adapter with RSM 50 Pallet Set for Wire EDM. No hard metal tools are allowed in this process, to avoid scratching the high-precision reference surface.
- Periodic anti-wear lubrication: Every 7 days, apply a thin layer of specified dry-film PTFE lubricant to the moving parts of the clamping mechanism, the guide pins and the locking spring components of the UnoSet Adapter with RSM 50 Pallet Set for Wire EDM. This avoids oil contamination that could adsorb more machining dust, which may damage positioning accuracy.
- Regular accuracy verification: Use a dial indicator with 0.001mm resolution to test the repeat positioning accuracy of the pallet at least once every 3 months. If the measured deviation exceeds 0.002mm, perform full disassembly cleaning and recalibration immediately, before the system is put back into production.
- Idle storage protection: When the UnoSet Adapter with RSM 50 Pallet Set for Wire EDM is not in use for more than 72 hours, cover all precision reference surfaces with anti-rust oiled protective film, and store it in a constant temperature cabinet with temperature controlled at 20±2℃, to avoid thermal deformation and surface oxidation.
UnoSet Adapter with RSM 50 Pallet Set for Wire EDM FAQ
Q: What should be done if tiny Wire EDM debris accidentally adheres to the taper positioning surface of the fixture?
A: First use compressed dry air with pressure below 0.2MPa to blow away loose debris, then wipe the surface gently with a lint-free microfiber cloth dipped in 99.5% isopropyl alcohol, and finally perform three empty clamping cycles to confirm no jamming or abnormal resistance before formal production.
Q: Can ordinary lithium-based grease be used to replace the specified PTFE dry-film lubricant for the clamping mechanism?
A: No. Ordinary grease will slowly adsorb fine metal dust generated in Wire EDM processing, forming an abrasive paste that will wear the precision matching gap over time, leading to a gradual increase in positioning deviation, and will greatly shorten the service life of the UnoSet Adapter with RSM 50 Pallet Set for Wire EDM.
Q: How to judge whether the sealing ring on the fixture needs to be replaced during the half-year inspection?
A: First check the surface of the sealing ring for visible cracks, permanent deformation or residual dielectric fluid corrosion marks, then perform a vacuum holding test: if the system cannot maintain a vacuum degree above -0.095MPa for more than 30 seconds, the sealing ring must be replaced immediately with the original matching part provided by JWGRIP.
As a professional fixture solution provider, JWGRIP delivers every set of UnoSet Adapter with RSM 50 Pallet Set for Wire EDM with a full set of dedicated maintenance tools and operation manuals. Contact us today to get your customized fixture maintenance plan and latest product quotation, to keep your Wire EDM production line running with consistent high precision for years.
