What Makes Flat Hole Nylon Cable Gland Essential for Modern Cable Protection?
2026-05-27
In modern electrical systems, cable management and protection are critical for ensuring operational safety, durability, and efficiency. Whether in industrial machinery, outdoor electrical cabinets, renewable energy systems, or communication equipment, selecting the right cable accessories directly impacts the performance of the entire installation. Among the many cable protection products available today, the Flat Hole Nylon Cable Gland has become increasingly popular because of its lightweight structure, corrosion resistance, excellent sealing capability, and cost-effective performance.
A Flat Hole Nylon Cable Gland is specially designed to secure and protect flat cables from dust, water, vibration, and mechanical stress. Compared with traditional round cable glands, this product is more suitable for flat or ribbon-shaped cables used in automation equipment, LED systems, elevators, and control panels. With advanced engineering plastics and precise sealing technology, these cable glands provide long-lasting reliability in demanding environments.
As a professional manufacturer in the electrical accessories industry, Wenzhou Zhechi Electric Co., Ltd. focuses on producing high-quality cable management solutions that meet global industrial standards while offering competitive pricing and dependable service.
What Is a Flat Hole Nylon Cable Gland?

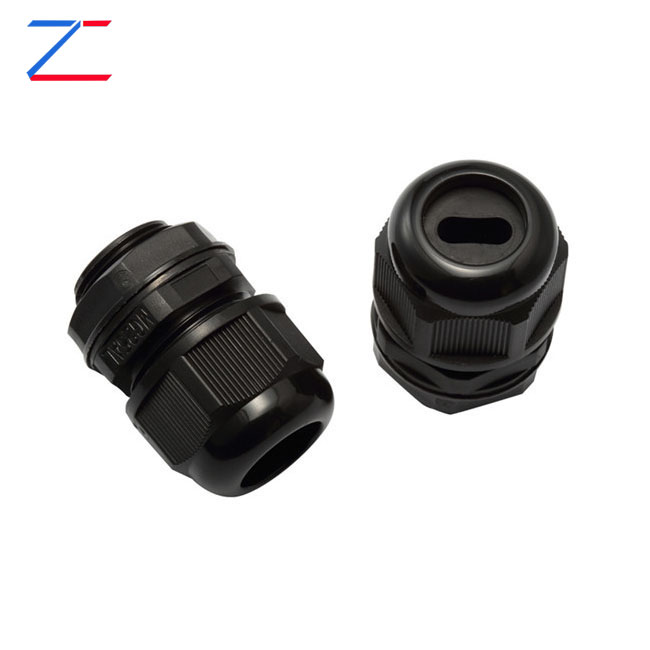

A Flat Hole Nylon Cable Gland is a specialized cable entry device designed to fix and seal flat electrical cables entering electrical equipment or enclosures. It is mainly manufactured from high-strength nylon material, typically PA66, which offers outstanding insulation, anti-aging performance, and resistance to chemicals.
The product usually consists of several components:
- Lock nut
- Sealing ring
- Clamping insert
- Main body
- Compression cap
These components work together to create a secure and waterproof seal around flat cables.
Basic Structure of Flat Hole Nylon Cable Gland
| Component | Function |
|---|---|
| Nylon Body | Provides strength and insulation |
| Rubber Seal | Ensures waterproof protection |
| Compression Nut | Secures cable tightly |
| Lock Nut | Fixes gland to equipment panel |
| Clamping System | Prevents cable movement |
Why Is Flat Hole Nylon Cable Gland Important?
Electrical systems are constantly exposed to moisture, dust, vibration, and temperature changes. Without proper cable protection, cables can become damaged, resulting in system failure, electrical leakage, or safety hazards.
The Flat Hole Nylon Cable Gland plays several important roles:
1. Cable Protection
It protects cables from:
- Abrasion
- Bending stress
- Pulling force
- Environmental contamination
This extends cable lifespan and reduces maintenance costs.
2. Waterproof and Dustproof Sealing
Many cable glands achieve IP68 protection levels, preventing water and dust from entering electrical enclosures.
This is especially important for:
- Outdoor lighting
- Solar energy systems
- Marine equipment
- Industrial automation
3. Strain Relief
The gland securely clamps the cable, preventing accidental disconnection caused by vibration or movement.
4. Electrical Safety
By sealing cable entry points, the gland reduces the risk of electrical short circuits and improves overall system safety.
What Are the Advantages of Nylon Material?
Nylon is widely used in cable gland manufacturing because it offers an ideal balance between strength, flexibility, and affordability.
Key Advantages of Nylon Cable Glands
| Advantage | Description |
|---|---|
| Lightweight | Easy to transport and install |
| Corrosion Resistant | Suitable for humid environments |
| Flame Retardant | Improves electrical safety |
| UV Resistant | Ideal for outdoor applications |
| High Insulation | Prevents electrical leakage |
| Durable | Long service life |
Compared with metal cable glands, nylon versions are more economical and resistant to corrosion, especially in chemical or coastal environments.
Where Are Flat Hole Nylon Cable Glands Used?
The versatility of the Flat Hole Nylon Cable Gland makes it suitable for numerous industries.
Common Applications
Industrial Automation
Used in:
- Control cabinets
- PLC systems
- Factory equipment
LED Lighting Systems
Flat cables are commonly found in LED strips and lighting installations, making flat hole cable glands highly suitable.
Renewable Energy
Widely used in:
- Solar power systems
- Wind energy equipment
Telecommunications
Protects communication cables in network cabinets and signal transmission systems.
Transportation Equipment
Applied in:
- Elevators
- Rail systems
- Electric vehicles
Flat Hole Nylon Cable Gland vs Metal Cable Gland
Choosing the right cable gland depends on application requirements. Below is a comparison between nylon and metal cable glands.
| Feature | Flat Hole Nylon Cable Gland | Metal Cable Gland |
|---|---|---|
| Weight | Lightweight | Heavy |
| Corrosion Resistance | Excellent | Moderate |
| Cost | Economical | Higher |
| Electrical Insulation | Excellent | Requires grounding |
| Outdoor Use | Very Good | Good |
| Mechanical Strength | Moderate | Very High |
For most standard industrial and commercial applications, nylon cable glands provide excellent value and reliable performance.
How to Choose the Right Flat Hole Nylon Cable Gland?
Selecting the correct cable gland ensures optimal cable protection and system safety.
Important Factors to Consider
Cable Size
Choose a gland compatible with the width and thickness of the flat cable.
Protection Rating
For outdoor or wet environments, IP68-rated products are recommended.
Temperature Resistance
Ensure the gland material can withstand operating temperatures.
Installation Environment
Consider exposure to:
- UV radiation
- Chemicals
- Salt spray
- Mechanical vibration
Thread Type
Common thread standards include:
- Metric
- PG
- NPT
Installation Process of Flat Hole Nylon Cable Gland
Proper installation improves performance and durability.
Simple Installation Steps
- Drill the appropriate mounting hole.
- Insert the cable gland into the panel.
- Secure it with the lock nut.
- Pass the flat cable through the gland.
- Tighten the compression cap.
- Confirm sealing and cable fixation.
Correct installation helps maintain waterproof performance and prevents cable damage.
Why Choose Wenzhou Zhechi Electric Co., Ltd.?
As a professional electrical accessories manufacturer, Wenzhou Zhechi Electric Co., Ltd. is committed to delivering high-quality cable protection solutions for global customers.
Company Advantages
- Advanced production equipment
- Strict quality control system
- Professional technical team
- Competitive factory pricing
- Fast delivery capability
- OEM and customized services
The company continuously improves product performance to meet international market demands while ensuring reliable and cost-effective solutions for customers worldwide.
Main Product Features
- High-strength nylon PA66 material
- Excellent waterproof sealing
- Flame-retardant performance
- Wide operating temperature range
- Long service life
- Easy installation
With years of manufacturing experience, Wenzhou Zhechi Electric Co., Ltd. has established long-term cooperation with customers across industrial automation, electrical engineering, renewable energy, and communication industries.
Future Trends of Flat Hole Nylon Cable Gland
As industries continue moving toward automation, renewable energy, and smart manufacturing, demand for high-performance cable management products is increasing rapidly.
Future development trends include:
- Higher waterproof ratings
- Enhanced UV resistance
- Eco-friendly materials
- Smart cable management systems
- Improved fire-retardant standards
The Flat Hole Nylon Cable Gland will continue playing a vital role in ensuring safe and efficient electrical connections in modern infrastructure.
Conclusion
The Flat Hole Nylon Cable Gland is an essential component for protecting flat electrical cables in a wide range of industrial and commercial applications. With advantages such as lightweight construction, corrosion resistance, waterproof sealing, and excellent insulation performance, it offers a reliable and cost-effective cable management solution.
Whether used in automation systems, LED lighting, renewable energy projects, or communication equipment, selecting a high-quality cable gland significantly improves operational safety and cable durability.
As a trusted manufacturer, Wenzhou Zhechi Electric Co., Ltd. provides professional cable gland solutions designed to meet international quality standards and customer requirements. If you are looking for durable, efficient, and competitively priced cable protection products, please contact us today for more product information and customized solutions.
