What Makes Silicon Nitride Substrates Essential in Modern High-Performance Electronics?

Silicon Nitride Substrates have become one of the most important advanced ceramic materials in modern electronics, power modules, and high-temperature applications. With the rapid development of electric vehicles, renewable energy systems, and high-frequency devices, the demand for reliable thermal management and electrical insulation materials has increased significantly. Among many ceramic options, Silicon Nitride Substrates stand out due to their unique combination of mechanical strength, thermal conductivity, and fracture resistance.

Manufacturers like Haining Torbo Ceramic Products Co.,LTD. are actively contributing to the development of hot-pressed silicon nitride technology, providing high-quality substrate solutions for industrial and electronic applications.

Abstract

This article explores the structure, properties, applications, and advantages of Silicon Nitride Substrates. It explains why they are widely used in power electronics and compares them with other ceramic substrate materials. It also highlights their role in improving device reliability, efficiency, and thermal stability.

1. What Are Silicon Nitride Substrates?

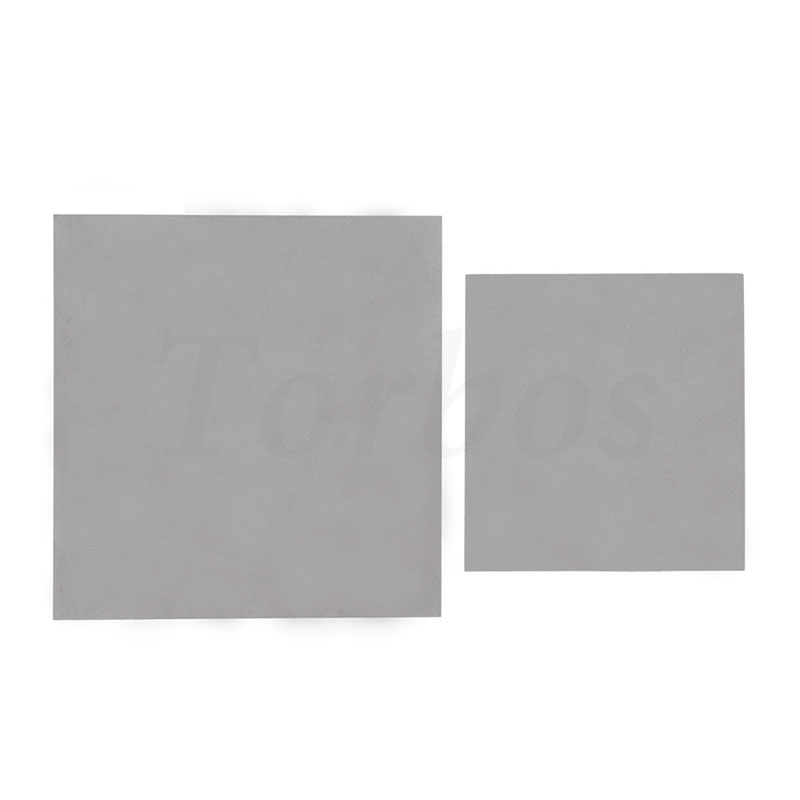

Silicon Nitride Substrates are advanced ceramic plates made from Si₃N₄ materials. They are used as base layers in electronic circuits, especially in power modules where heat dissipation and electrical insulation are critical.

These substrates provide:

• High thermal shock resistance
• Excellent mechanical durability
• Strong insulation properties
• Long service life under extreme conditions

2. Why Silicon Nitride Substrates Are Important

Modern electronics generate high heat during operation. Without proper heat management, devices can fail prematurely.

Silicon Nitride Substrates solve this problem by:

• Efficiently transferring heat away from components
• Preventing electrical short circuits
• Maintaining structural stability under thermal cycling

Their importance is especially evident in:

• Electric vehicle inverter systems
• Wind power converters
• High-power LED modules
• Aerospace electronics

3. Key Properties and Performance Advantages

Main Advantages of Silicon Nitride Substrates

• High Thermal Conductivity: Ensures efficient heat dissipation
• Superior Mechanical Strength: Resistant to cracking and impact
• Thermal Shock Resistance: Performs well under rapid temperature changes
• Excellent Insulation: Prevents electrical leakage
• Long-Term Reliability: Stable in harsh environments

Property Comparison Table

4. Applications Across Industries

Silicon Nitride Substrates are widely used across multiple advanced industries:

Electronics Industry

• Power semiconductor modules
• High-frequency circuit boards
• Intelligent control systems

Automotive Industry

• EV inverter systems
• Battery management systems
• Charging infrastructure

Energy Sector

• Solar inverters
• Wind turbine converters
• Energy storage systems

Industrial Equipment

• High-temperature sensors
• Motor drives
• Laser systems

5. Silicon Nitride Substrates vs Other Ceramic Materials

Silicon Nitride Substrates are often compared with alumina and aluminum nitride materials.

Key Differences

• Alumina is cost-effective but has lower thermal performance
• Aluminum nitride offers excellent thermal conductivity but is more fragile
• Silicon Nitride provides the best balance of strength and reliability

This balance makes Silicon Nitride Substrates ideal for high-stress environments where both heat resistance and mechanical stability are required.

6. Manufacturing and Technological Process

The production of Silicon Nitride Substrates involves advanced ceramic processing techniques:

1. Raw material selection (high-purity Si₃N₄ powders)
2. Powder forming and shaping
3. Hot pressing or sintering
4. Precision grinding and polishing
5. Quality testing and thermal inspection

Companies like Haining Torbo Ceramic Products Co.,LTD. focus on hot-pressed silicon nitride technology, ensuring high density and stable microstructure for industrial-grade substrates.

7. Challenges and Future Development Trends

Despite their advantages, Silicon Nitride Substrates still face challenges:

Current Challenges

• Higher production cost compared to alumina
• Complex manufacturing process
• Demand for higher thermal conductivity improvements

Future Trends

• Integration with EV and AI power systems
• Development of ultra-thin substrates
• Enhanced thermal conductivity engineering
• Lower-cost mass production techniques

The market is expected to grow rapidly as industries shift toward high-efficiency power electronics.

8. FAQ

Q1: What are Silicon Nitride Substrates used for?

They are mainly used in power electronics, automotive systems, and high-temperature industrial applications.

Q2: Why choose Silicon Nitride over alumina?

Because it offers much better mechanical strength and thermal shock resistance.

Q3: Are Silicon Nitride Substrates expensive?

Yes, but their long service life and reliability reduce overall system costs.

Q4: Can they be used in electric vehicles?

Yes, they are widely used in EV inverter and power control systems.

9. Conclusion and Contact Information

Silicon Nitride Substrates represent a critical advancement in modern ceramic materials, offering unmatched reliability, thermal stability, and mechanical strength. As industries continue to evolve toward higher efficiency and miniaturization, these substrates will play an even more important role in future technologies.

With strong manufacturing capability and advanced hot-pressing technology, Haining Torbo Ceramic Products Co.,LTD. is committed to providing high-performance Silicon Nitride Substrates for global customers.

For more technical specifications, customization options, or bulk supply requirements, contact us today to discuss how we can support your project needs and deliver reliable ceramic solutions tailored to your industry.
