What Makes the Gel Seal Close Pleat Design Superior for Leak Prevention in Critical Air Filtration
2026-05-25

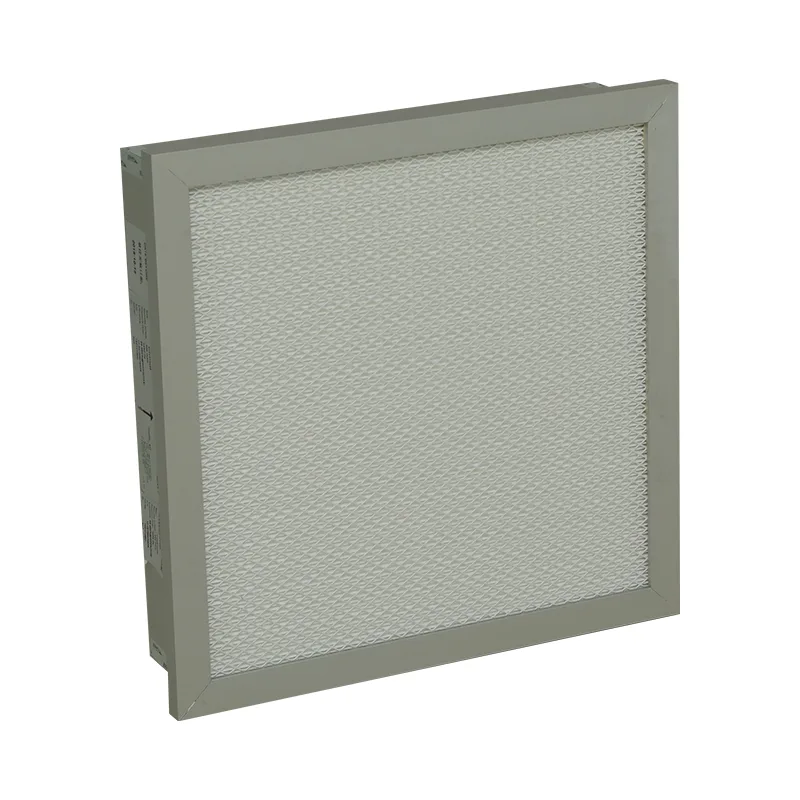

In critical environments such as cleanrooms, pharmaceutical labs, and hospitals, the Gel Seal Close Pleat HEPA Filter from Grandfort sets the benchmark for leak prevention. Unlike standard gasket seals that compress and degrade over time, the gel seal technology eliminates bypass leakage—the leading cause of contamination in high-stakes air filtration systems.
Why Gel Seal Outperforms Traditional Gasket Seals
The core advantage lies in the non‑hardening gel compound. When the filter housing compresses into the gel, the material flows around micro‑imperfections on the mating surface, creating a continuous, airtight barrier. The close pleat design further reduces internal turbulence and pressure drop, ensuring that every air molecule passes through the media rather than escaping through seal gaps.
| Feature | Gel Seal Close Pleat HEPA Filter (Grandfort) | Standard Gasket Seal HEPA Filter |
|---|---|---|
| Seal material | Self‑healing, non‑hardening gel | Compressible foam or rubber |
| Bypass leakage risk | Near‑zero (gel conforms to surface irregularities) | Moderate to high (gasket compression set over time) |
| Installation tolerance | Accommodates minor housing imperfections | Requires precise, smooth mating surface |
| Long‑term stability | Maintains seal integrity for years | Requires frequent torque checks and replacements |
| Typical application | ISO 5‑8 cleanrooms, pharmaceutical isolators | General HVAC, commercial buildings |
How the Close Pleat Technology Enhances Leak Prevention
Traditional HEPA filters with wide pleat spacing allow higher velocity airflow that can dislodge particles or stress the seal interface. Grandfort integrates a close pleat configuration that reduces media flexing and vibration. This directly protects the gel seal from dynamic pressure fluctuations. Additionally, the compact pleat pack increases filter area by up to 40% without enlarging the frame, lowering face velocity and further minimising seal stress.
Key performance benefits include:
-
Leakage rate: <0.01% (tested per IEST RP‑CC001)
-
Operating pressure resistance: Up to 2,500 Pa without seal failure
-
Installation verification: Gel imprint pattern provides visual confirmation of correct seating
Gel Seal Close Pleat HEPA Filter – FAQ
Q1: How does the gel seal prevent air bypass that a standard gasket cannot stop?
A1: A standard rubber or foam gasket relies on compression force to close gaps. Over time, compression set, temperature cycling, and vibration create micro‑channels where unfiltered air bypasses. The Gel Seal Close Pleat HEPA Filter from Grandfort uses a semi‑fluid gel that flows into microscopic surface scratches, weld seams, and irregular housing contours. The gel never hardens, so it continuously re‑forms to maintain a molecular‑level seal even as equipment expands or contracts. This eliminates the typical 2‑5% bypass leakage seen in gasketed systems.
Q2: Can the close pleat design reduce the frequency of filter replacements in critical air filtration systems?
A2: Yes. The close pleat geometry packs more filter media into the same frame size, lowering air velocity through the media. Lower velocity means less particle impact force and extended media life. More importantly, reduced velocity decreases pressure fluctuation across the gel seal. Grandfort engineers have documented that Gel Seal Close Pleat HEPA Filters last up to 30% longer in ISO Class 7 cleanrooms compared to standard deep‑pleat filters, directly reducing change‑out frequency and contamination risk during replacements.
Q3: What installation steps are essential to maintain the leak‑proof integrity of the gel seal?
A3: Three critical steps ensure optimal performance. First, inspect the housing mating surface for sharp burrs or loose debris—the gel can seal minor roughness but not large particles. Second, install the Gel Seal Close Pleat HEPA Filter evenly by tightening the compression mechanism (e.g., clamps or bolts) in a cross pattern to avoid tilting. Third, verify the seal by observing a continuous gel imprint around the entire frame perimeter; any missing imprint indicates uneven pressure. Grandfort provides a torque specification chart with each unit, and we recommend an in‑situ aerosol leak test after installation for ISO‑classified environments.
