What Materials Are Used in a Worm Gearbox for Durability?

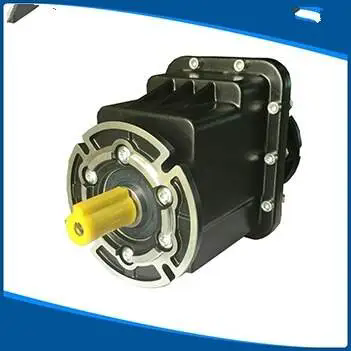

Two Worm Gearbox units arrive at a factory. They have the same center distance, the same ratio, and the same mounting dimensions. One costs 30 percent less than the other. The maintenance team installs both units on identical conveyors. Two years later, the lower-cost unit shows visible wear on the worm wheel teeth and the oil has turned dark with bronze particles. The higher-cost unit is still running with the original oil and no measurable backlash increase. The difference is not the design. It is the materials. This guide explains which materials determine the durability of a Worm Gearbox and how to verify them during procurement.

1. Why Is the Worm Wheel Material the Primary Durability Factor?

The worm wheel is the component that wears first in most Worm Gearbox failures. It meshes with the hardened steel worm under high sliding velocity. The material must have low friction, high wear resistance, and good conformability. The standard material is tin bronze (CuSn12) or aluminum bronze (CuAl10Fe3). Tin bronze has excellent conformability and wear resistance, but it is more expensive. Aluminum bronze has higher strength and better resistance to shock loads, but it is more difficult to machine and can be abrasive to the worm if the lubrication is poor. The table below compares the properties of common worm wheel materials.

In our factory, we specify tin bronze for most Worm Gearbox units because it provides the best balance of wear resistance and conformability. For high shock applications, we use aluminum bronze. We do not use cast iron wheels except for very low-speed, low-load applications. Saifu provides material certificates for every worm wheel we produce.

2. How Does Heat Treatment of the Worm Shaft Affect Durability?

The worm shaft is the driving element. It must be harder than the worm wheel to ensure that wear occurs on the wheel, which is easier to replace. The standard material is case-hardened steel (20MnCr5 or 17CrNiMo6). The case depth is typically 1.5 to 3.0 mm, and the surface hardness is 58 to 62 HRC. The core hardness is 30 to 40 HRC. This combination provides a hard, wear-resistant surface with a tough core that resists bending fatigue. The table below shows the heat treatment specifications for different worm shaft materials.

The case depth is critical. If the case is too thin, the worm will wear through the hard layer and fail rapidly. If the case is too deep, the core may not be tough enough to absorb shock loads. In our factory, we verify the case depth on every worm shaft by micro-hardness testing. We also check the surface hardness and the core hardness. Saifu Vietnam Company Limited has a fully equipped metallurgical laboratory for this purpose.

3. What Role Does the Housing Material Play in Gearbox Durability?

The housing provides the structural support for the worm and wheel. It must maintain the alignment of the shafts under load and resist vibration. The most common housing material is cast iron (GG25 or GGG40). Cast iron has good damping characteristics, which reduces vibration and noise. It also has good thermal conductivity, which helps dissipate heat. For lighter applications, die-cast aluminum (ADC12) is used. Aluminum is lighter but has lower damping and lower stiffness. The table below compares the housing materials.

In our factory, we use cast iron GG25 for most Worm Gearbox housings. For applications where weight is critical, we use die-cast aluminum. We also stress-relieve the cast iron housings before machining to prevent dimensional changes after installation. This is particularly important for large housings that are subject to thermal cycling. Saifu machines the bearing bores in a single setup to ensure concentricity and alignment.

4. How Do Bearings and Seals Affect Long-Term Durability?

The bearings support the worm and wheel shafts. They must handle the radial and axial loads from the gear mesh. The most common bearing types are tapered roller bearings and deep groove ball bearings. Tapered roller bearings have higher load capacity and better rigidity, but they require more careful adjustment. Deep groove ball bearings are simpler and have lower friction, but they have lower load capacity. The seals prevent oil leakage and contamination. The most common seal types are nitrile rubber (NBR) and fluoroelastomer (FKM). FKM has better temperature resistance and chemical resistance. The table below shows the bearing and seal options for different operating conditions.

Summary for Sourcing Engineers and Maintenance Managers

The durability of a Worm Gearbox is determined by the materials used in its construction. The worm wheel material, the heat treatment of the worm shaft, the housing material, and the bearing and seal selection all contribute to the service life. When comparing suppliers, look beyond the price and request the material certificates and heat treatment records. A lower-priced gearbox may use cheaper materials that will fail prematurely. Saifu Vietnam Company Limited has been manufacturing Worm Gearbox units for over 15 years and provides full material traceability for every unit we ship.

Saifu Vietnam Company Limited manufactures Worm Gearbox units with tin bronze worm wheels, case-hardened steel worm shafts, and cast iron housings. We provide material certificates and heat treatment records for all of our products.
