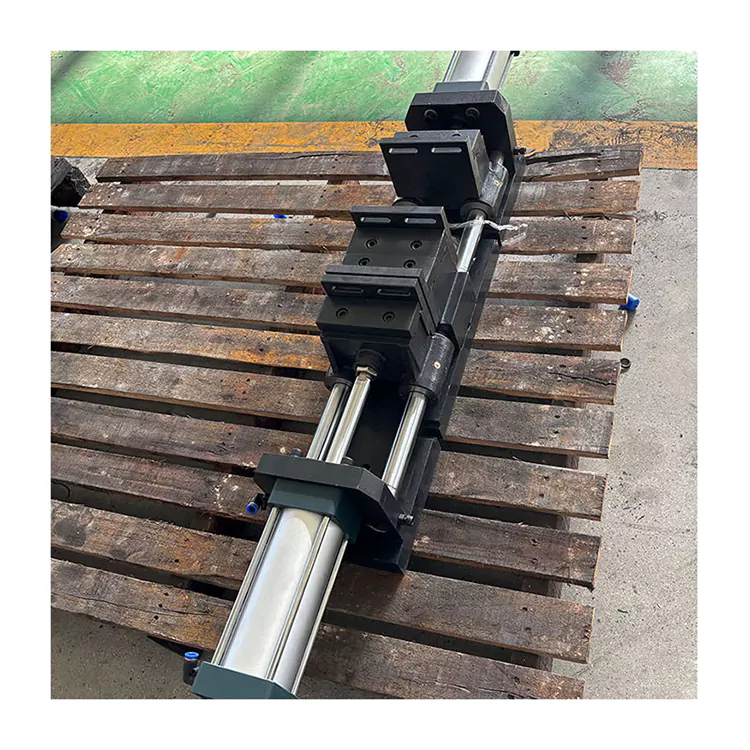

What Safety Features Should You Look for in a Double Single Open Pneumatic Flat Vice
2026-05-15
When operating a Double Single Open Pneumatic Flat Vice, safety is not an accessory—it is a core requirement. For workshops using Yueli pneumatic workholding solutions, understanding built-in safety features prevents workplace injuries and protects precision equipment. A Double Single Open Pneumatic Flat Vice must combine mechanical integrity with intelligent pneumatic control. Below are the critical safety features to verify before deployment.
Essential Safety Features Checklist
| Feature | Function | Why It Matters |
|---|---|---|
| Non-slip hardened jaw plates | Prevent workpiece ejection | Reduces risk of flying debris at 0.2 sec pressure loss |
| Residual pressure release valve | Dumps air after power off | Avoids accidental clamping during setup |
| Over-travel limiter | Restricts piston stroke beyond 2mm | Prevents vice body fracture at 8 bar input |
| Integrated silencer | Muffles exhaust below 75 dBA | Protects operator hearing in daily cycles |
| Spring-assisted return | Manual opening when air fails | Enables workpiece removal during outages |
Pneumatic Circuit Safeguards
A Double Single Open Pneumatic Flat Vice from Yueli must include a dual-palm button control requiring both hands to activate clamping. This eliminates single-hand operation injuries. Additionally, check for a pressure switch that locks the vice below 4 bar—insufficient force allows part slippage. Look for CE or ISO 12100 certified units where the vice body is grounded to prevent static discharge near coolant mist.
Mechanical Stop Redundancy
The open design of a Double Single Open Pneumatic Flat Vice means the moving jaw must have a positive mechanical stop independent of air pressure. Yueli incorporates a hardened steel pin that physically blocks over-travel even if the solenoid valve sticks. Without this, excess stroke can crack the cylinder head.
Three High-Value FAQs About Double Single Open Pneumatic Flat Vice Safety
Q1: What happens if air supply suddenly drops while the Double Single Open Pneumatic Flat Vice is clamped?
A: A properly designed Double Single Open Pneumatic Flat Vice from Yueli uses a spring-apply, air-release configuration. When pressure falls below 3.5 bar, internal springs maintain 70% of rated clamping force for at least 15 minutes. The vice also includes a visual pressure indicator—green band for safe range, red for unsafe. Operators must halt machining immediately if the indicator shows red and manually lock the auxiliary screw on the cylinder body.
Q2: Can the Double Single Open Pneumatic Flat Vice accidentally open due to vibration during heavy milling?
A: No, if the vice includes a mechanical lock-in feature. Yueli models add a one-way needle valve in the exhaust port that restricts return flow. Even with violent 3-axis simultaneous cutting, the jaw cannot retract unless the operator intentionally presses the release button. Additionally, the piston rod is treated with diamond-like carbon coating to prevent stick-slip motion that could mimic release. Always verify the lock-in valve exists—budget designs omit this, leading to unpredictable opening.
Q3: How do I test the over-travel protection on a Double Single Open Pneumatic Flat Vice without disassembling it?
A: First, disconnect the air line. Use a dial indicator against the moving jaw. Manually push the jaw toward the cylinder—you should feel a solid stop after 1.8mm to 2.2mm of travel. Yueli vices produce an audible “click” from the limiter pin. Then reconnect air at 6 bar and run the vice fully open. The total stroke must not exceed the manual test value by more than 0.1mm. If it does, the internal buffer ring is worn and replacement is needed. Perform this test weekly for high-cycle applications.
Additional Operational Safeguards
| Hazard | Yueli-Integrated Solution | User Action Required |
|---|---|---|
| Chip ingress into cylinder | Wiper seal with scraper edge | Clean jaw guide rails every shift |
| Pinch point between jaws | Light curtain compatible mounting slots | Position sensors between 50-100mm gap |
| Unexpected clamping during setup | Manual override knob on valve body | Turn to “manual off” before loading part |
Contact Us
For tailored safety configurations on your Double Single Open Pneumatic Flat Vice line, Yueli engineers provide on-site risk assessments and circuit diagrams. Reach out through the official website contact form to request a safety data pack or schedule a live pressure test demonstration. Your team’s protection starts with the right vice—contact us today to secure your machining environment.
