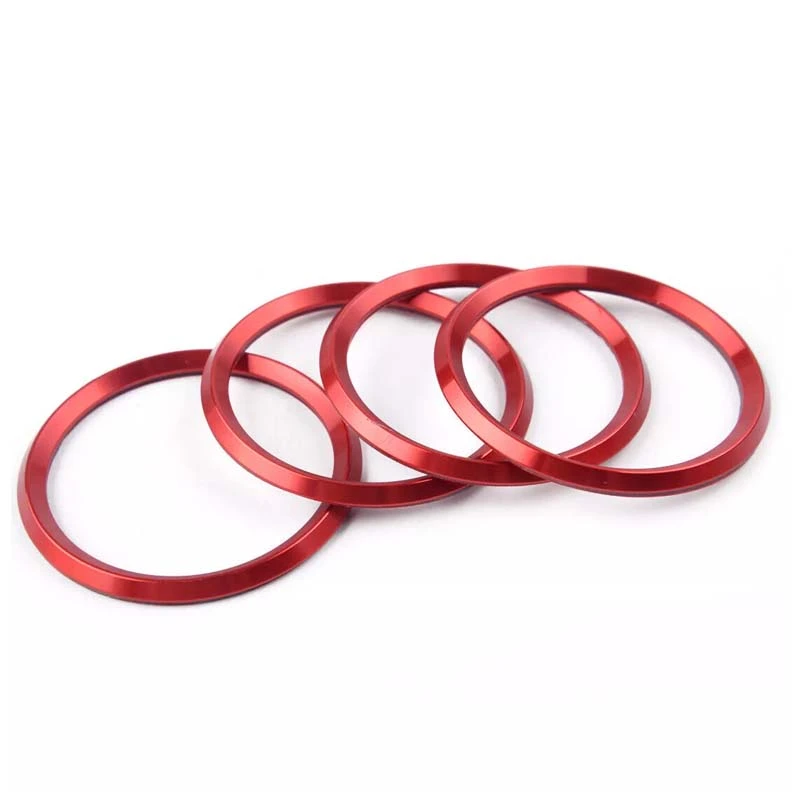

What Size Specifications Matter Most When Choosing a Red Aluminium Alloy Hub Centric Ring
2026-05-13
When upgrading to aftermarket wheels, selecting the correct Red Aluminium Alloy Hub Centric Ring is critical for safety and performance. J&W, a trusted name in precision wheel accessories, emphasizes that the right size eliminates vibrations, ensures proper load distribution, and protects wheel studs from unnecessary stress. But with multiple measurements involved, which specifications truly matter?
Critical Size Specifications for Hub Centric Rings
The table below outlines the four most essential dimensions to verify before purchasing a Red Aluminium Alloy Hub Centric Ring from J&W or any reputable supplier.
| Specification | Description | Why It Matters |
|---|---|---|
| Vehicle Hub Bore Diameter | The exact inner diameter of your vehicle’s hub flange (typically 56.1mm to 72.6mm for passenger cars) | This must match the ring’s inner diameter. Too loose causes vibrations; too tight prevents installation. |
| Wheel Center Bore Diameter | The inner diameter of your aftermarket wheel’s central opening | This determines the ring’s outer diameter. A precise fit centers the wheel perfectly on the hub. |
| Ring Thickness | The wall thickness between inner and outer diameters, usually 2–5mm | Insufficient thickness can cause cracking under torque. J&W rings use reinforced walls for durability. |
| Flange Depth / Height | How far the ring extends along the hub axis | Must match the hub’s shoulder depth. Shallow rings fail to center; overly deep rings may block rotor access. |
How to Measure Correctly
Use a digital caliper for accuracy. First, measure your vehicle’s hub bore (the metal cylinder protruding from the brake rotor). Second, measure the wheel’s center bore (the large hole on the backside of the wheel). Subtract the hub bore from the wheel bore to get the required ring thickness. For example, if wheel bore = 73.1mm and hub bore = 66.1mm, you need a Red Aluminium Alloy Hub Centric Ring with 73.1mm outer diameter and 66.1mm inner diameter.
Why Aluminium and Red Anodizing Matter
J&W chooses 6061-T6 aluminium for its corrosion resistance and thermal stability. The red anodized finish is not just aesthetic—it adds a micro-hard layer that resists galling and makes visual inspection easier. Plastic rings deform under heat and load; Red Aluminium Alloy Hub Centric Rings from J&W maintain shape even after thousands of miles.
Red Aluminium Alloy Hub Center Ring FAQ
What happens if I install a hub centric ring with an inner diameter 0.5mm larger than my vehicle’s hub bore?
A 0.5mm gap allows the wheel to shift off-center during driving, especially under cornering or braking. This causes cyclic vibration that feels like an unbalanced tire. Over time, the micro-movement can ovalize your wheel’s bolt holes and loosen lug nuts. J&W recommends tolerances no greater than 0.05mm for a true centering fit.
Can I reuse a Red Aluminium Alloy Hub Centric Ring after removing the wheel multiple times?
Yes, aluminium rings are highly reusable if not damaged. However, inspect the ring for any nicks, burrs, or compression marks each time. Unlike plastic rings that degrade with each torque cycle, a Red Aluminium Alloy Hub Centric Ring from J&W lasts through hundreds of installs. Clean the mating surfaces with a wire brush before reinstallation to prevent debris from creating false centering.
Does the red color on an anodized hub centric ring affect heat dissipation or strength?
The anodizing process itself does not change thermal conductivity or mechanical strength of 6061-T6 aluminium. The red dye is purely cosmetic and penetrates the oxide layer. However, the anodized surface increases hardness to about 70 Rockwell C, reducing wear from friction against the hub. J&W uses Type II anodizing to achieve a durable finish that resists brake dust and road salt without compromising the ring’s structural integrity.
Final Checklist Before Buying
-
Confirm vehicle hub bore and wheel center bore in millimeters.
-
Choose Red Aluminium Alloy Hub Centric Ring only from verified suppliers like J&W.
-
Avoid plastic or universal “multi-fit” rings—they cause hidden misalignment.
-
Always torque lug nuts in a star pattern after installing rings.
For guaranteed fitment, contact J&W directly with your vehicle make, model, year, and aftermarket wheel brand. Our team provides sizing confirmation within 24 hours and offers custom machining for rare hub bores. Reach out via the contact form on our official website or email us at [email protected] to secure your precision-engineered Red Aluminium Alloy Hub Centric Ring today.
