When Should You Choose an M7N Multi Spring Mechanical Seal for Your Pump

Selecting the right shaft sealing solution directly affects pump reliability, maintenance costs, and process safety. Among the many options available, the M7N Multi Spring Mechanical Seal from Qixing has become a preferred choice for demanding industrial applications. This blog explains when this seal is the correct specification, how it performs against alternatives, and what maintenance practices keep it running longer.

What Makes the M7N Multi Spring Mechanical Seal Different

The M7N Multi Spring Mechanical Seal is a pusher-type, multi-spring cartridge seal designed for pumps handling clean or mildly contaminated fluids. Unlike single-spring designs, its multiple springs distribute face loading evenly, which improves stability under vibration and pressure fluctuations. Qixing manufactures this seal with precision-machined seal faces, corrosion-resistant springs, and a compact cartridge body that simplifies installation.

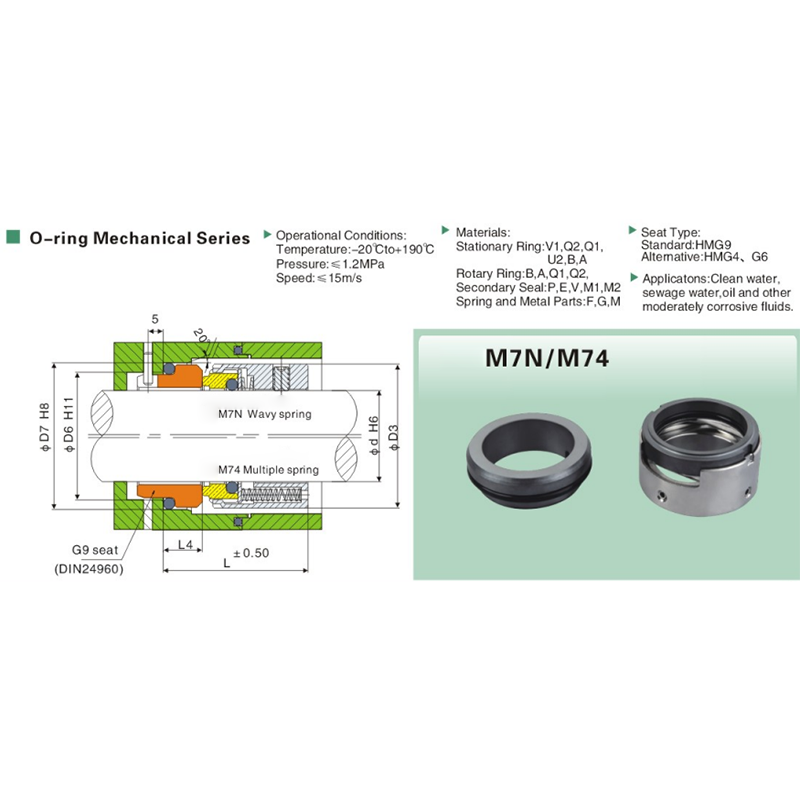

Key Specifications at a Glance

When You Should Choose the M7N Multi Spring Mechanical Seal

Use the following checklist to determine whether the M7N Multi Spring Mechanical Seal fits your pump:

• The pump handles clean, non-abrasive, or lightly contaminated liquids.

• Operating pressure fluctuates or runs continuously above 10 bar.

• The shaft experiences vibration or minor misalignment.

• You need a cartridge seal that reduces installation time and human error.

• The process requires reliable sealing in chemical, water treatment, or general industrial service.

• You want a cost-effective alternative to metal bellows seals for moderate-duty applications.

When You Should Consider Another Seal Type

The M7N Multi Spring Mechanical Seal is not suitable for every duty. Avoid it when:

• The fluid contains high concentrations of abrasive particles.

• The pump runs dry frequently or suffers cavitation.

• Extreme temperatures exceed the elastomer limits.

• The application demands a metal bellows seal for high-temperature or high-viscosity service.

M7N Multi Spring Mechanical Seal FAQ

Q: What fluids are compatible with the M7N Multi Spring Mechanical Seal?
A: The M7N Multi Spring Mechanical Seal handles water, mild chemicals, oils, and neutral liquids when the correct elastomer and face materials are selected. Qixing recommends FKM or FFKM for aggressive chemicals and EPDM for hot water. Always verify chemical compatibility before installation.

Q: How do I install the M7N Multi Spring Mechanical Seal correctly?
A: Clean the shaft and housing, lubricate the elastomers with a compatible medium, and slide the cartridge onto the shaft without damaging the seal faces. Tighten the gland bolts evenly, set the correct axial position, and rotate the shaft by hand before startup. Qixing supplies detailed installation drawings with every unit.

Q: How long does the M7N Multi Spring Mechanical Seal typically last?
A: Service life depends on operating conditions, but the M7N Multi Spring Mechanical Seal commonly lasts 12 to 24 months in clean service. Proper flushing, alignment, and regular inspection extend life significantly. Qixing recommends replacing the seal during scheduled pump overhauls.

Maintenance Best Practices

• Inspect seal faces for wear, cracks, or heat damage every 3,000 operating hours.

• Keep flush plans clean and confirm flow rates.

• Check shaft runout and bearing condition.

• Store spare M7N Multi Spring Mechanical Seal units in a dry, dust-free environment.

Why Choose Qixing

Qixing combines advanced manufacturing, strict quality control, and responsive technical support. Every M7N Multi Spring Mechanical Seal is tested for leakage, torque, and dimensional accuracy before shipment. Customers receive fast delivery, custom material options, and engineering guidance for challenging applications.
