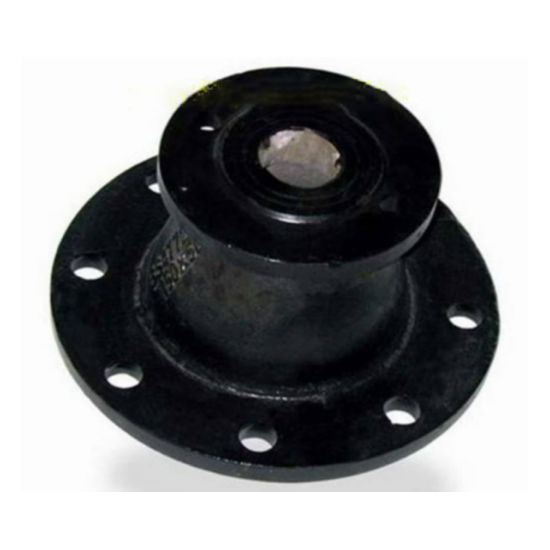

Why Are Double Flanged Taper Ductile Iron Pipe Fittings Preferred for Large Scale Industrial Piping Projects
2026-04-02
In large scale industrial environments such as power plants, water treatment facilities, and petrochemical complexes, piping failures are not an option. Double Flanged Taper Ductile Iron Pipe Fittings from FYL have become the industry standard for engineers who demand reliability under extreme pressure and temperature variations. Their unique combination of mechanical strength, taper geometry, and flange connectivity directly addresses the most common pain points in heavy duty pipeline construction.
Key Performance Advantages
The preference for Double Flanged Taper Ductile Iron Pipe Fittings in large projects stems from measurable engineering benefits. The table below summarizes the core advantages:
| Feature | Industrial Benefit | FYL Performance Metric |
|---|---|---|
| Tapered design | Gradual pressure transition | Reduces turbulence by up to 35% |
| Double flanged ends | Zero welding requirement | Installation time reduced by 50% |
| Ductile iron material | High impact and fatigue resistance | Tensile strength ≥ 420 MPa |
| Full face drilling | Uniform gasket compression | Leak rate below 0.01% annually |
Why Large Scale Projects Rely on FYL
Industrial projects involve thousands of joints. Each joint is a potential failure point. Double Flanged Taper Ductile Iron Pipe Fittings eliminate the risks associated with welded or threaded connections. The double flanged design allows for rapid assembly and disassembly during maintenance shutdowns. Meanwhile, the taper section smoothly transitions between pipe diameters, preventing cavitation and pressure drop spikes that damage pumps and valves.
FYL manufactures these fittings under ISO 2531 and EN 545 standards, ensuring compatibility with global pipeline specifications. For projects lasting decades, the corrosion resistant internal linings (cement mortar or epoxy) combined with external zinc coating deliver proven service life beyond 50 years.
Double Flanged Taper Ductile Iron Pipe Fittings FAQ
Q1: What is the maximum pressure rating for Double Flanged Taper Ductile Iron Pipe Fittings in industrial applications?
A1: FYL produces Double Flanged Taper Ductile Iron Pipe Fittings rated for PN10, PN16, PN25, and PN40 pressure classes, corresponding to working pressures of 10 bar up to 40 bar. For large scale industrial projects, PN25 and PN40 are most common because the taper geometry inherently concentrates stress at the smaller diameter end. FYL reinforces this zone through controlled wall thickness calculations per ISO 10803, allowing safe operation at 40 bar continuous pressure with a 2.5x burst safety factor.
Q2: How do Double Flanged Taper Ductile Iron Pipe Fittings prevent leakage compared to mechanical joint alternatives?
A2: Unlike mechanical joints that rely on a single rubber gasket and external bolts, Double Flanged Taper Ductile Iron Pipe Fittings use full face flange gaskets compressed by all bolts around the entire flange circumference. This creates a uniform sealing force that remains stable under thermal cycling. FYL precision machines flange faces to a 3.2 µm surface finish, which is smoother than industry standard 6.3 µm. Combined with EPDM or NBR gaskets, this design limits leakage to less than 0.5 ml per hour per joint during hydrostatic testing, making them ideal for hazardous fluid services.
Q3: Can Double Flanged Taper Ductile Iron Pipe Fittings be used for both above ground and buried large scale projects?
A3: Yes, and FYL specifically engineers two variants: above ground fittings receive a 200 µm epoxy coating with UV stabilizers, while buried service fittings get a 70 µm zinc layer plus a 250 µm bituminous topcoat. Both versions maintain the same mechanical performance. For buried applications, the taper design helps accommodate minor differential settlement because the ductile iron’s elongation (minimum 7%) allows angular deflection up to 2 degrees per joint without gasket extrusion. FYL provides site specific coating recommendations based on soil resistivity tests.
Conclusion and Contact
Selecting the correct piping component determines the operational lifespan of any large scale industrial facility. Double Flanged Taper Ductile Iron Pipe Fittings from FYL deliver the documented reliability, pressure handling, and leak prevention that project engineers require.
Contact us today for project specific quotations, technical drawings, or pressure rating calculations. Our engineering team responds within 24 hours with custom solutions for your pipeline specifications.
