Why Are High-Quality Insulation Materials Essential for Long Transformer Service Life?

Every transformer has a mortality clock. That clock is not measured in years or in load cycles. It is measured in the degradation of the Electrical Insulation Materials On Oil Type Transformers. The insulation system determines how long the transformer will survive thermal stress, electrical stress, and moisture ingress. For a maintenance engineer, the question is not whether the insulation will age—it is how quickly, and what can be done to slow the process. This guide is written for engineers who need to understand the aging mechanisms and make informed decisions about insulation material selection and replacement.

1. What Actually Happens When Transformer Insulation Ages?

The aging of Electrical Insulation Materials On Oil Type Transformers is a chemical process driven primarily by heat. The cellulose paper used in the winding insulation undergoes depolymerization, breaking down into shorter molecular chains. This reduces the tensile strength of the paper and makes it more brittle. The byproducts of this degradation include water, carbon dioxide, and carbon monoxide—all of which dissolve in the transformer oil and can be measured through dissolved gas analysis (DGA). The rate of aging follows the Arrhenius equation: for every 10°C increase in operating temperature, the rate of paper degradation doubles. At 90°C, a typical paper insulation system has a life expectancy of about 20 years. At 110°C, it drops to 5 years. In our factory, we have tested Electrical Insulation Materials On Oil Type Transformers under accelerated thermal aging conditions. The data shows that the choice of Kraft paper versus thermally upgraded paper can extend the service life by 30 to 40 percent at the same operating temperature.

At Suzhou Hanyao New Materials Co., Ltd., we produce Electrical Insulation Materials On Oil Type Transformers with a focus on thermal stability. Our thermally upgraded Kraft paper is treated with a nitrogen-containing compound that improves the thermal endurance by approximately 20°C compared to standard Kraft paper. This means that a transformer using our insulation materials can operate at a higher hot-spot temperature without reducing the expected service life.

2. How Do Different Insulation Classes Affect Transformer Life Expectancy?

The thermal class of the insulation system defines the maximum allowable hot-spot temperature for continuous operation. The most common classes are Class A (105°C), Class B (130°C), Class F (155°C), and Class H (180°C). For oil-type transformers, the insulation system is typically a combination of cellulose paper (Class A) and the oil itself, which acts as a coolant and a dielectric. However, the thermal capability of the paper is the limiting factor. Upgrading from standard Kraft paper to thermally upgraded paper effectively increases the thermal class by one step. The table below shows the expected life reduction when the operating temperature exceeds the thermal class limit, based on our factory's accelerated aging tests.

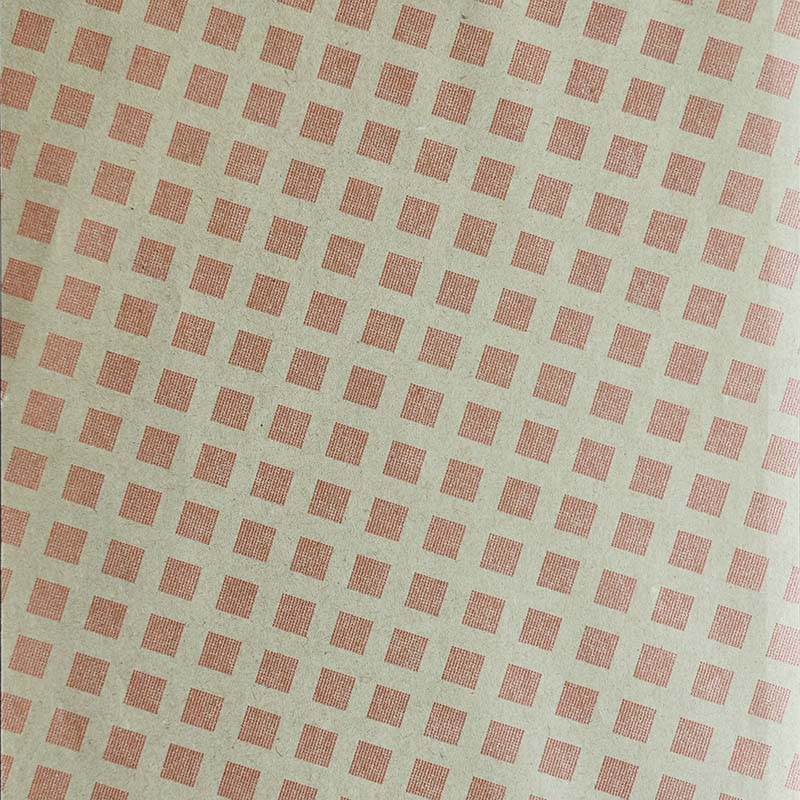

The choice of insulation material is not just about the paper itself. The pressboard, the crepe paper, and the insulating tape used in the transformer all contribute to the overall thermal capability. At Hanyao, we manufacture a complete range of Electrical Insulation Materials On Oil Type Transformers, including pressboard, crepe paper, and insulating tape, all designed to match the thermal class of the paper. This ensures that the entire insulation system performs consistently under thermal stress.

3. How Does Moisture Ingress Accelerate Insulation Degradation?

Moisture is the second most destructive factor for transformer insulation, after heat. Water accelerates the hydrolysis of cellulose, breaking the polymer chains and reducing the tensile strength. It also reduces the dielectric strength of the oil and the paper, increasing the risk of partial discharge. The moisture content in the paper is typically measured in percent by weight. A new transformer with high quality Electrical Insulation Materials On Oil Type Transformers will have a moisture content below 0.5 percent. After 10 years of service, this can increase to 1.5 to 2.0 percent if the transformer has been exposed to moisture through leaking seals or a degraded breather. At 2.0 percent moisture, the aging rate of the paper is about 5 times higher than at 0.5 percent. In our factory, we manufacture insulation materials with a very low initial moisture content, typically below 0.3 percent, and we package them in moisture barrier bags to maintain this low moisture level during shipping and storage.

Our factory supplies Electrical Insulation Materials On Oil Type Transformers with a moisture content of 0.25 to 0.3 percent, which is significantly lower than the typical 0.5 to 0.8 percent found in standard grade materials. This lower moisture content extends the service life of the transformer by slowing the hydrolysis reaction.

4. How Can You Verify the Quality of Insulation Materials Before Replacement?

When replacing or upgrading the insulation materials in a transformer, maintenance engineers need to verify the quality of the materials before they are installed. There are three key tests that should be performed on a sample of Electrical Insulation Materials On Oil Type Transformers. First, the tensile strength test measures the mechanical strength of the paper in the machine direction and the cross direction. A minimum tensile strength of 80 N/cm is typical for high quality Kraft paper. Second, the dielectric breakdown voltage test measures the insulation strength of the paper in oil. The breakdown voltage should be at least 40 kV for a 0.1 mm thick paper sample. Third, the moisture content should be measured using the Karl Fischer titration method, with a target of below 0.5 percent. In our factory, we perform these tests on every batch of Electrical Insulation Materials On Oil Type Transformers and we include the test report with each shipment. This allows the maintenance engineer to verify the quality before installation.

Summary for Transformer Maintenance Engineers

The service life of a transformer is directly determined by the quality of the Electrical Insulation Materials On Oil Type Transformers used in its construction. Heat and moisture accelerate the degradation of the cellulose paper, reducing its tensile strength and dielectric performance. By choosing high quality insulation materials with a high thermal class and low moisture content, maintenance engineers can significantly extend the service life of their transformers. Regular monitoring of the aging indicators, such as furan compounds and DP value, allows for timely intervention and replacement of the insulation materials when necessary.

Suzhou Hanyao New Materials Co., Ltd. manufactures Electrical Insulation Materials On Oil Type Transformers that are designed to meet the highest standards of thermal and dielectric performance. We provide full material certificates, including thermal class, tensile strength, and moisture content. Our materials are packaged in moisture barrier bags to ensure that they arrive at your workshop in optimal condition.
