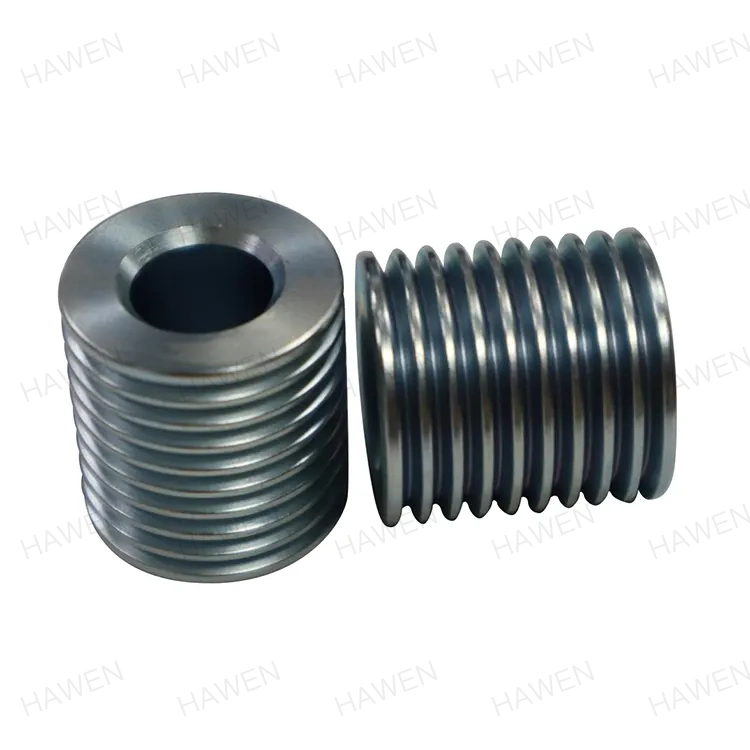

Why choose aluminum Belt Pulleys for lightweight and high-speed systems?

A machine tool builder was designing a high-speed spindle drive. The original design used cast iron Belt Pulleys with a 200 mm diameter. The system reached 8,000 RPM but the acceleration time was 4.5 seconds, and the motor current at steady state was 18 amperes. The builder switched to aluminum Belt Pulleys with the same diameter and the same belt profile. The acceleration time dropped to 2.8 seconds, and the steady state current dropped to 12 amperes. The speed was increased to 18,000 RPM without exceeding the motor rating. The change was not in the belt or the motor. It was in the pulley material. This guide explains the engineering principles behind that improvement.

1. How Does Pulley Weight Affect Moment of Inertia and Acceleration?

The moment of inertia of a pulley is a measure of its resistance to changes in rotational speed. It is calculated as the mass times the square of the radius of gyration. For a solid disc pulley, the moment of inertia is proportional to the mass and the square of the diameter. Reducing the mass reduces the moment of inertia proportionally. Aluminum has a density of 2.70 g/cm³, while cast iron has a density of 7.20 g/cm³. A switch from cast iron to aluminum reduces the mass by 62 percent for the same volume. The moment of inertia is reduced by the same percentage. The table below shows the moment of inertia for a 200 mm diameter pulley in different materials.

The acceleration torque required is proportional to the moment of inertia and the angular acceleration. For a system that must accelerate from 0 to 18,000 RPM in 2 seconds, the angular acceleration is 942 rad/s². The cast iron pulley requires 14.2 Nm of torque just to accelerate its own mass. The aluminum pulley requires only 5.4 Nm. This difference allows the use of a smaller motor or faster acceleration. In our factory, we manufacture aluminum Belt Pulleys that are balanced to ISO 1940 G2.5 for high-speed applications. Zhejiang Hawen Electromechanical Co., Ltd. has been producing these pulleys for over 12 years.

2. How Does Weight Reduction Affect Critical Speed and Vibration?

Every rotating system has a critical speed at which the natural frequency of the system coincides with the rotational frequency. At this speed, the vibration amplitude increases dramatically, and the system can become unstable. The critical speed is inversely proportional to the square root of the mass. Reducing the mass increases the critical speed, which allows the system to operate at higher speeds without resonance. The table below shows the critical speed for a shaft-pulley system with different pulley materials.

The critical speed of the cast iron system is 9,200 RPM, which means the maximum operating speed is limited to 7,400 RPM to maintain a 20 percent safety margin. The aluminum system has a critical speed of 14,800 RPM, which allows a maximum operating speed of 11,800 RPM. If the system needs to run at 18,000 RPM, the cast iron pulley would require a larger shaft or additional support bearings to increase the critical speed. The aluminum pulley may not require these changes. In our factory, we perform a critical speed analysis for every high-speed application and recommend the pulley material and shaft diameter accordingly.

3. What Are the Different Aluminum Alloys and Their Suitability for High-Speed Pulleys?

Not all aluminum alloys are suitable for high-speed pulleys. The alloy must have sufficient strength to withstand the centrifugal forces at the operating speed. The centrifugal force increases with the square of the speed. At 18,000 RPM, a 200 mm diameter pulley experiences a centrifugal force that is 81 times greater than at 2,000 RPM. The material must have a high yield strength to resist deformation. The table below compares the properties of common aluminum alloys for pulley applications.

For speeds up to 15,000 RPM, 6061-T6 is suitable and has excellent corrosion resistance. For speeds above 15,000 RPM, 7075-T6 is recommended because of its higher yield strength. However, 7075 has lower corrosion resistance and is more expensive. In our factory, we machine Belt Pulleys from solid billet or from extruded profiles, depending on the size and quantity. Zhejiang Hawen Electromechanical Co., Ltd. can provide material certificates and dynamic balance reports for all of our aluminum pulleys.

4. How Does Pulley Design Affect Weight and Performance?

The design of the pulley can reduce weight even further. A solid aluminum pulley is lighter than cast iron, but a pulley with lightening holes or a web structure is lighter still. The lightening holes remove material from the least stressed areas of the pulley. The web structure replaces solid material with ribs that carry the load. The table below shows the weight reduction for different design features.

Summary for Design Engineers

Aluminum Belt Pulleys are the preferred choice for lightweight and high-speed systems because they reduce the moment of inertia, increase the critical speed, and allow the use of smaller motors or faster acceleration. The weight reduction compared to cast iron is 60 to 70 percent, which translates directly to lower acceleration torque and higher operating speeds. Alloy selection and design optimization are critical for high-speed applications. 6061-T6 is suitable for speeds up to 15,000 RPM, while 7075-T6 is required for higher speeds. Zhejiang Hawen Electromechanical Co., Ltd. has been manufacturing aluminum Belt Pulleys for over 12 years and provides full engineering support for high-speed applications.

Zhejiang Hawen Electromechanical Co., Ltd. manufactures aluminum Belt Pulleys in 6061-T6, 7075-T6, and other alloys, with dynamic balancing to ISO 1940 G2.5. We provide material certificates, balance reports, and critical speed analysis for all of our products.
